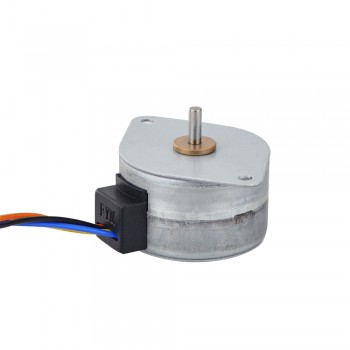

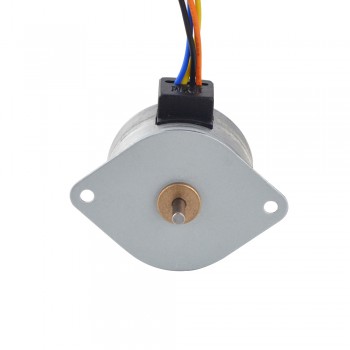

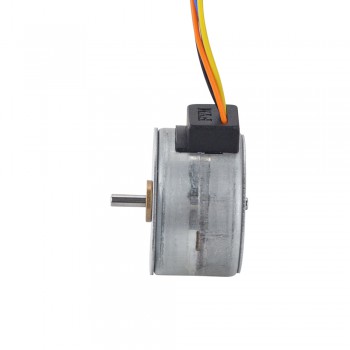

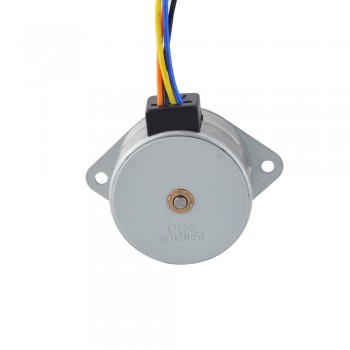

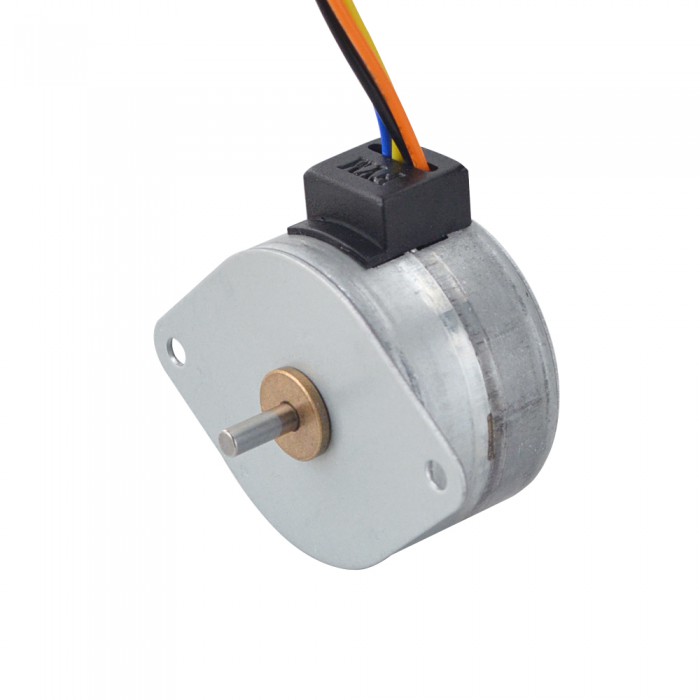

Φ35x22mm PM Rotary Stepper motor 15deg 53.9mN.m (7.634oz.in) 0.8A 4 Wires

NO.:35PM24L01
Review: Post a review
Latest price:$8.32
Buy It Now:$6.40
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$5.84 $5.56 $5.28 $5.00
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35PM24L01
  • Motor Type: PM Stepper
  • Phase: 2
  • Step Angle: 15 deg
  • Rated Current/phase: 0.8 A
  • Holding Torque: 53.9 mN.m(7.634 oz.in)
  • Detent Torque: 14.7 mN.m(2.082oz.in)
  • Phase Resistance: 15 ± 7% ohms(20 ℃)
  • Inductance: 13.5 mH ± 20%(1KHz)
  • Rotor Inertia: Less than 7.5 g.cm2
  • Life: 3000h MIN(20 ℃,100 pps)

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 22 mm
  • Shaft Diameter: Φ3 mm
  • Shaft Length: 10 mm
  • Number of Leads: 4 with connector PH2.0A-4Y
  • Lead Length: 110 mm
  • Weight: 86.6 g

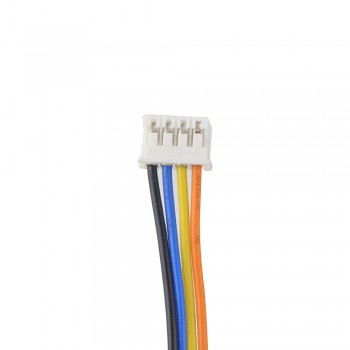

Connection

A+
A-
B+
B-
Orange
Yellow
Black
Blue
