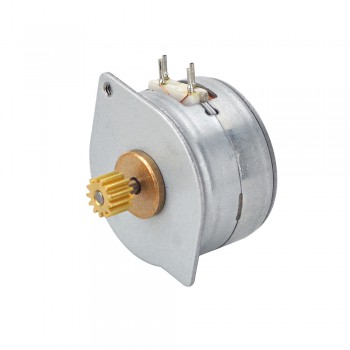

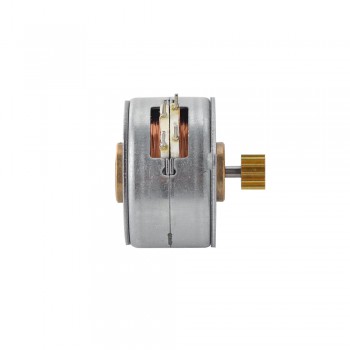

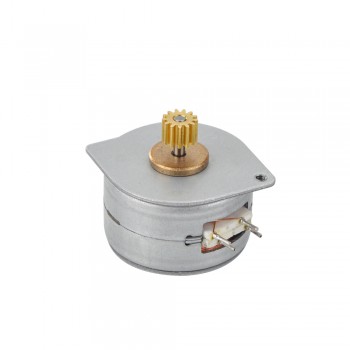

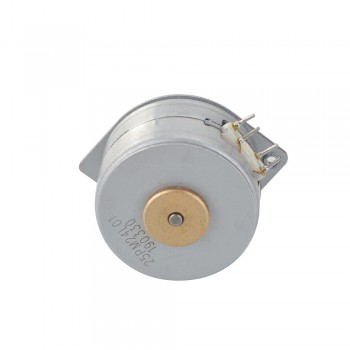

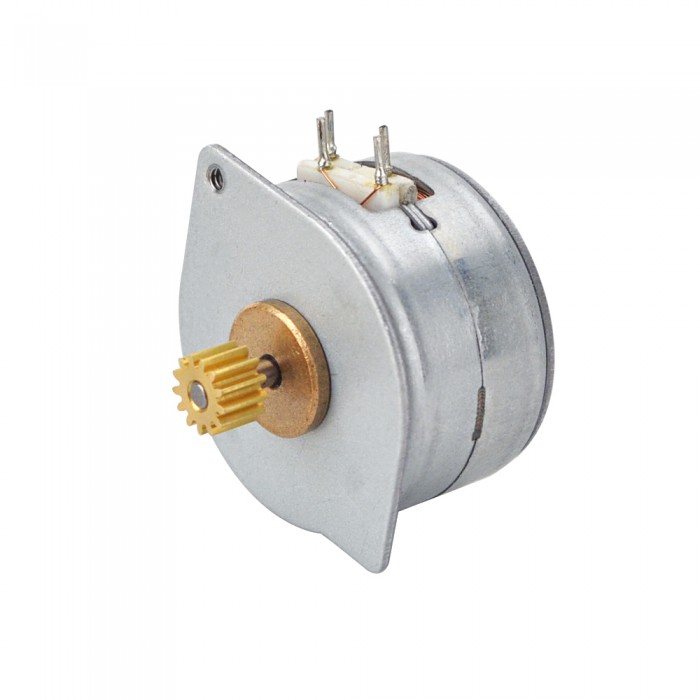

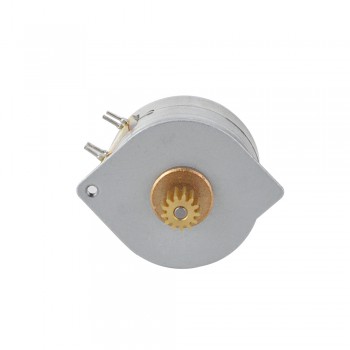

PM Rotary Stepper Motor 15 Deg 12.25mN.m (1.735oz.in) 0.275A 4 Wires Φ25x16mm Permanent Magnet Stepper Motor
Electrical Specification
Manufacturer Part Number: 25PM24L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 15 deg
Rated Current/phase: 0.275 A
Holding Torque: 12.25 mN.m(1.735 oz.in)
Detent Torque: 3.92 mN.m(0.555oz.in)
Phase Resistance: 16 ± 7% ohms(20 ℃)
Inductance: 9.46 mH ± 20%(1KHz)
Rotor Inertia: Less than 1.0 g.cm2
Life: 3000h MIN(20 ℃, 100 pps)
Physical Specification
Frame Size: Φ25 mm
Body Length: 16 mm
Shaft Diameter: Φ2 mm
Shaft Length: 8 mm
Number of Teeth: 13
Pully Module: 0.4 mm
Pitch Diameter: Φ5.2 mm
Addendum Circle Diameter: Φ6 mm
Pressure Angle: 20 deg
Number of Leads: 4
Weight: 33.4 g
Resources
Full Datasheet: 25PM24L01.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Inductance(mH) | 9.46 |
| Phase Resistance(ohm) | 16 |
| Rated Current (A) | 0.275 |
| Step Angle(°) | 15 |
| No. of Phase | 2 |
| Detent Torque(mN.m) | 3.92 |
| Detent Torque(oz.in) | 0.555 |
| Holding Torque(mN.m) | 12.25 |
| Physical Specification | |
| Body Length(mm) | 16 |
| Frame Size(mm) | Φ25 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | Φ2 |
| Shaft Length(mm) | 8 |
