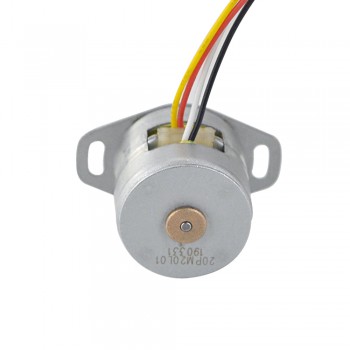

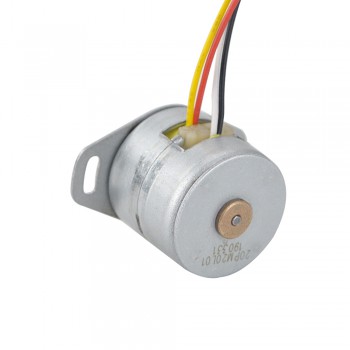

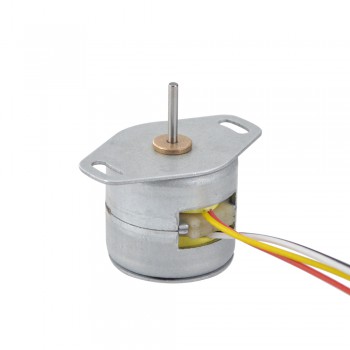

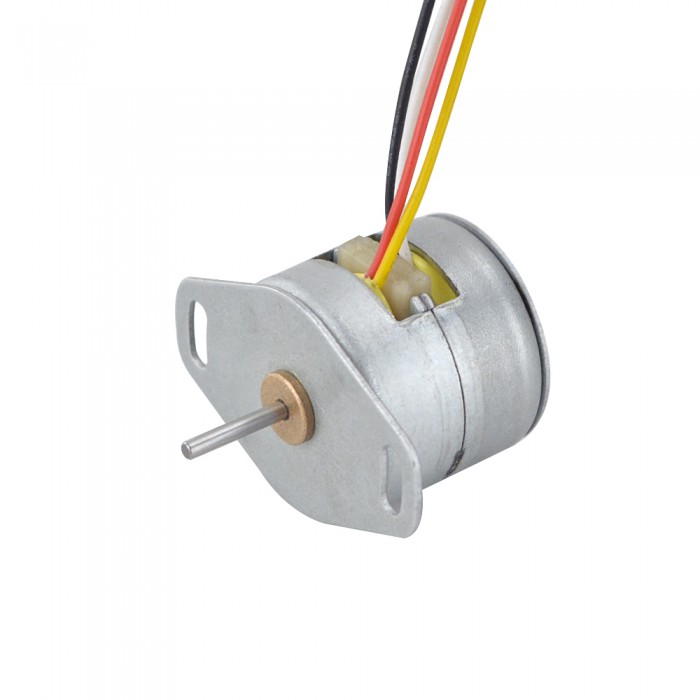

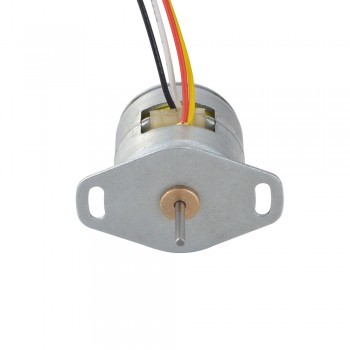

PM Rotary Stepper Motor 18 Deg 5.88mN.m (0.833oz.in) 0.5A 4 Wires Φ20x18.2mm Permanent Magnet Stepper Motor
Electrical Specification
Manufacturer Part Number: 20PM20L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 18 deg
Rated Current/phase: 0.5 A
Holding Torque: 5.88 mN.m(0.833 oz.in)
Detent Torque: 1.98 mN.m(0.28 oz.in)
Phase Resistance: 10 ± 10% ohms(20 ℃)
Inductance: 4.3 mH ± 20%
Rotor Inertia: Less than 1.0 g.cm2
Life: 3000h MIN(20 ℃, 200 pps)
Physical Specification
Frame Size: Φ20 mm
Body Length: 18.2 mm
Shaft Diameter: Φ1.5 mm
Shaft Length: 10.5 mm

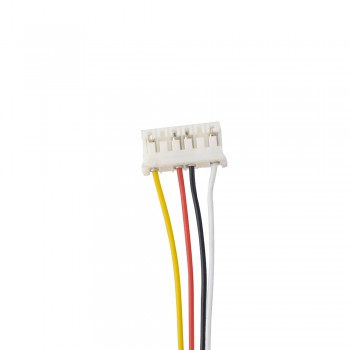

Number of Leads: 4 with connector PH-6Y
Lead Length: 250 mm
Weight: 24 g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Yellow
|
Red
|
White
|
Black
|
Resources
Full Datasheet: 20PM20L01.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 5.88 |
| Holding Torque (oz.in) | 0.833 |
| Inductance(mH) | 4.3 |
| Phase Resistance(ohm) | 10 |
| Step Angle(°) | 18 |
| No. of Phase | 2 |
| Detent Torque(mN.m) | 1.98 |
| Detent Torque(oz.in) | 0.28 |
| Physical Specification | |
| Body Length(mm) | 18.2 |
| Frame Size(mm) | Φ20 |
| Lead Length(mm) | 250 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | Φ1.5 |
| Shaft Length(mm) | 10.5 |
