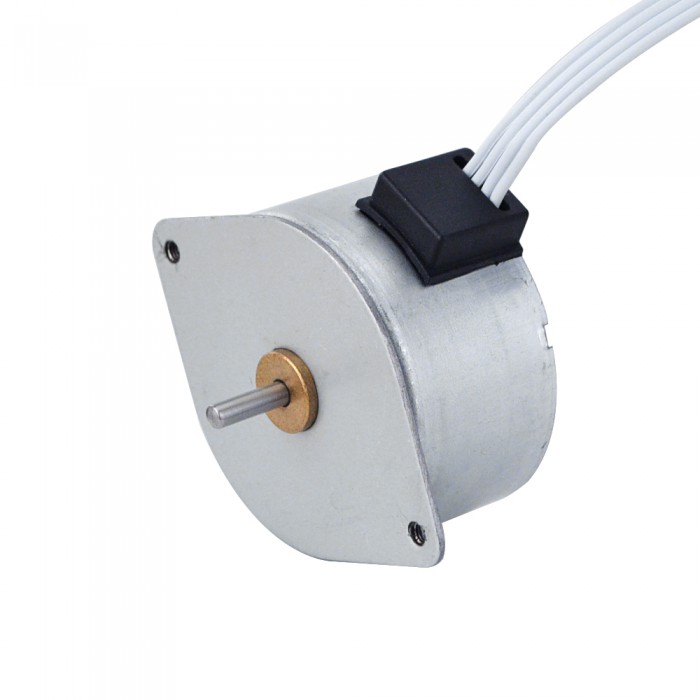

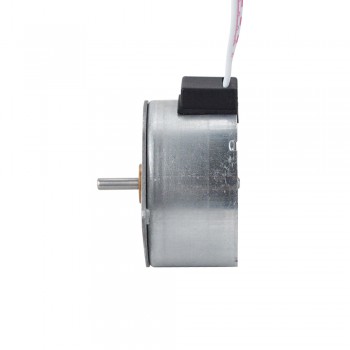

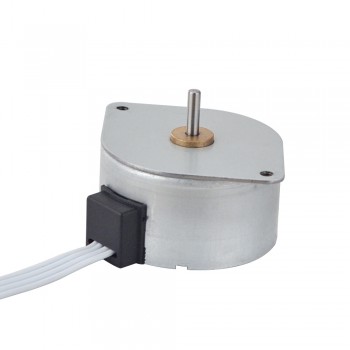

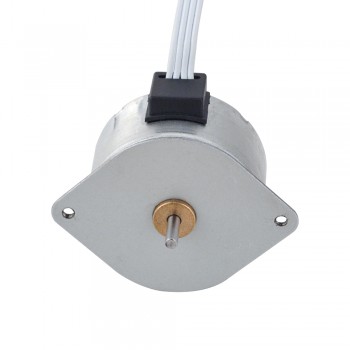

PM Stepper Motor 7.5 Deg 68.6mN.m (9.717oz.in) 0.6A 4 Wires Φ42x23.5mm Permanent Magnet Stepper Motor
Electrical Specification

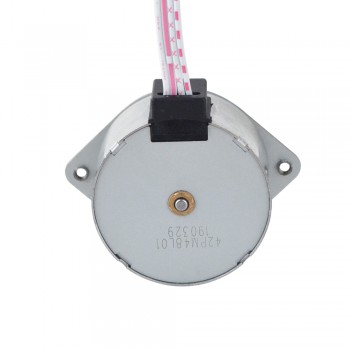

Manufacturer Part Number: 42PM48L01
Motor Type: PM Stepper
Phase: 2
Step Angle: 7.5 deg
Rated Current/phase: 0.6 A
Holding Torque: 68.6 mN.m(9.717 oz.in)
Detent Torque: 27.44 mN.m(3.887 oz.in)
Phase Resistance: 5.8 ± 7% ohms(20 ℃)
Inductance: 9.5 mH ± 20%(1KHz)
Rotor Inertia: Less than 10.5 g.cm2
Life: 3000h MIN(20 ℃,100 pps)
Physical Specification
Frame Size: Φ42 mm
Body Length: 23.5 mm
Shaft Diameter: Φ3 mm
Shaft Length: 12 mm

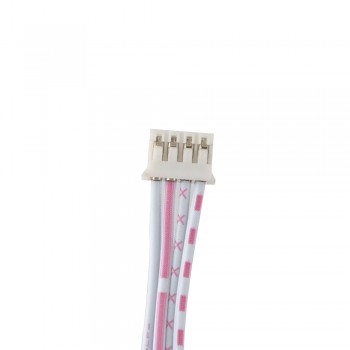

Number of Leads: 4 with connector PH2.0A-4Y
Lead Length: 80 mm
Weight: 126.4 g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
4
|
2
|
3
|
1
|
Resources
Full Datasheet: 42PM48L01.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Holding Torque (oz.in) | 9.717 |
| Inductance(mH) | 9.5 |
| Phase Resistance(ohm) | 5.8 |
| Step Angle(°) | 7.5 |
| No. of Phase | 2 |
| Detent Torque(mN.m) | 27.44 |
| Detent Torque(oz.in) | 3.887 |
| Holding Torque(mN.m) | 68.6 |
| Physical Specification | |
| Body Length(mm) | 23.5 |
| Frame Size(mm) | Φ42 |
| Lead Length(mm) | 80 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | Φ3 |
| Shaft Length(mm) | 12 |
