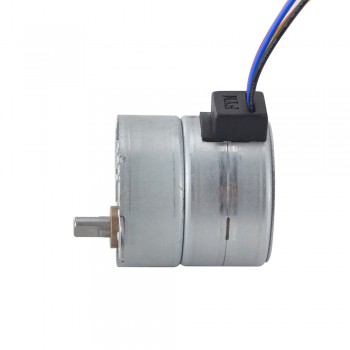

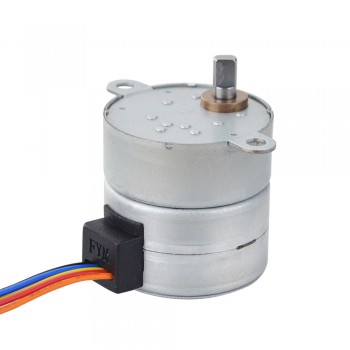

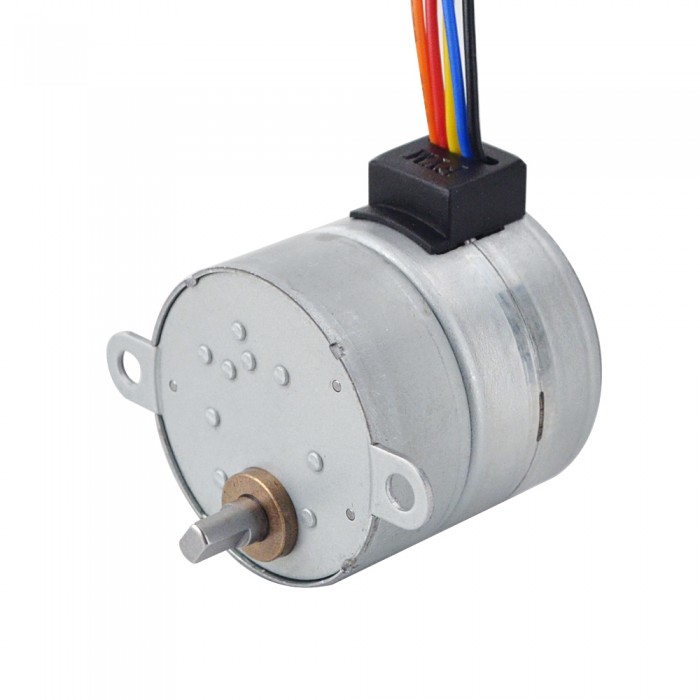

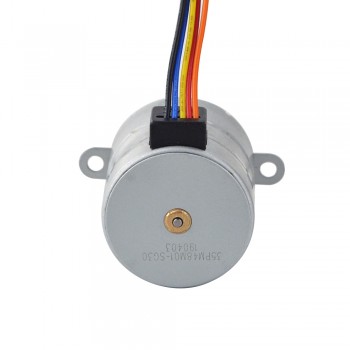

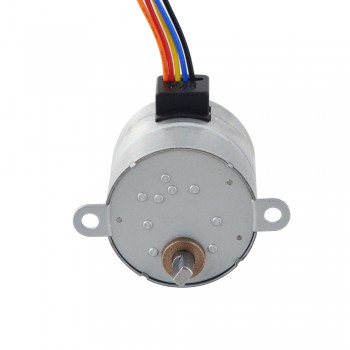

Φ35x35.2mm PM Gear Stepper motor W/Gear Ratio 30:1 Spur gearbox

Φ35x35.2mm PM Gear Stepper motor W/Gear Ratio 30:1 Spur gearbox
NO.:35PM48M01-SG30
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$15.45
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $14.68 5%
30 $14.37 7%
50 $13.91 10%
100 $13.13 15%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35PM48M01-SG30
  • Motor Type: PM Stepper
  • Phase: 4
  • Step Angle: 0.25 deg
  • Rated Current/phase: 0.4 A
  • Holding Torque: 117.6 Ncm(166.569 oz.in)
  • Phase Resistance: 30 ± 7% ohms(25 ℃)
  • Inductance: 17.1 mH ± 20%

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 35.2 mm
  • Gearbox Length: 14.5 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 10 mm
  • D-cut Length: 6 mm
  • Gearbox Type: Spur
  • Gear Ratio: 30
  • Number of Leads: 5 with connector PH-6Y
  • Lead Length: 240 mm
  • Weight: 115.8 g

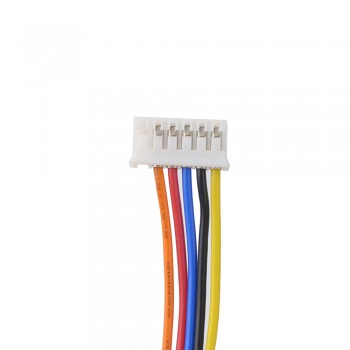

Connection

1
2
3
4
5
Yellow
Black
Blue
Red
Orange



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Φ25x25.5mm PM Geared Stepper motor W/Gear Ratio 30:1 Spur gearbox
Next: Φ35x35.2mm PM Gear Stepper motor W/Gear Ratio 60:1 Spur gearbox
Electrical Specification
Holding Torque (oz.in) 166.569
Inductance(mH) 17.1
Phase Resistance(ohm) 30
Rated Current (A) 0.4
Step Angle(°) 0.25
No. of Phase 4
Holding Torque(mN.m) 1176
Gearbox Specification
Gear Ratio 30
Gearbox Length(mm) 14.5
Gearbox Type Spur
Physical Specification
Body Length(mm) 35.2
Frame Size(mm) Φ35
Lead Length(mm) 240
No. of Lead 5
Shaft Diameter(mm) Φ5
Shaft Length(mm) 10
