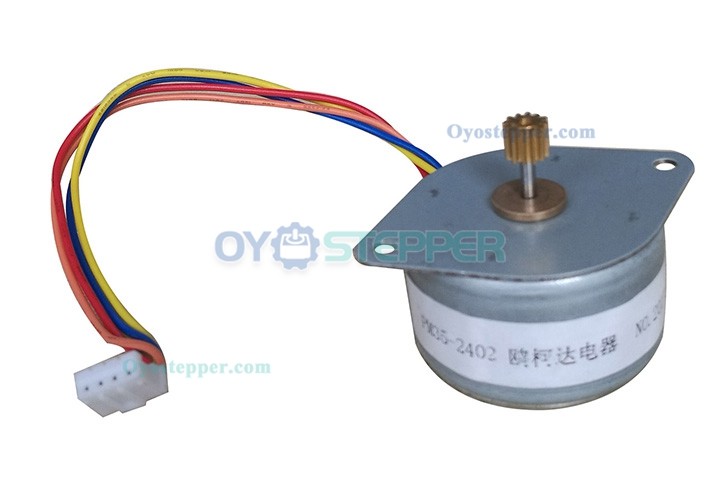

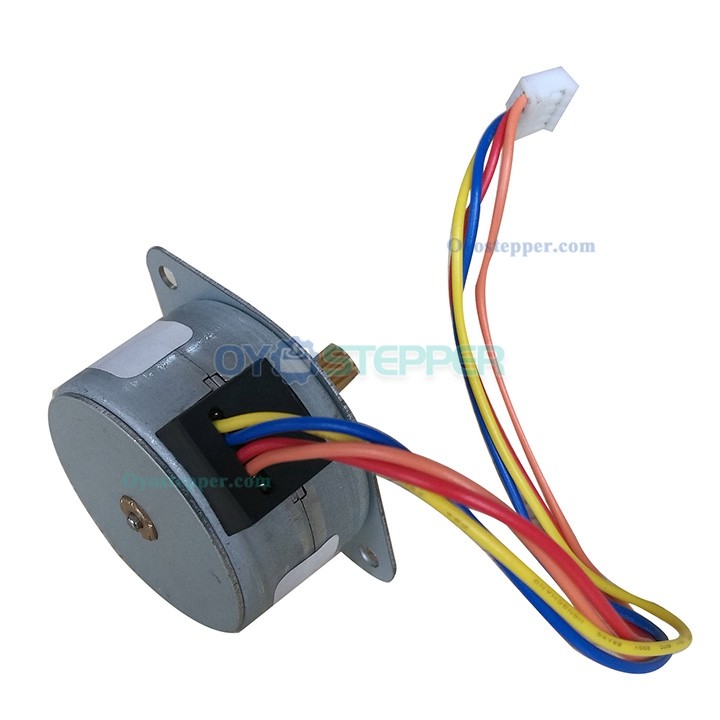

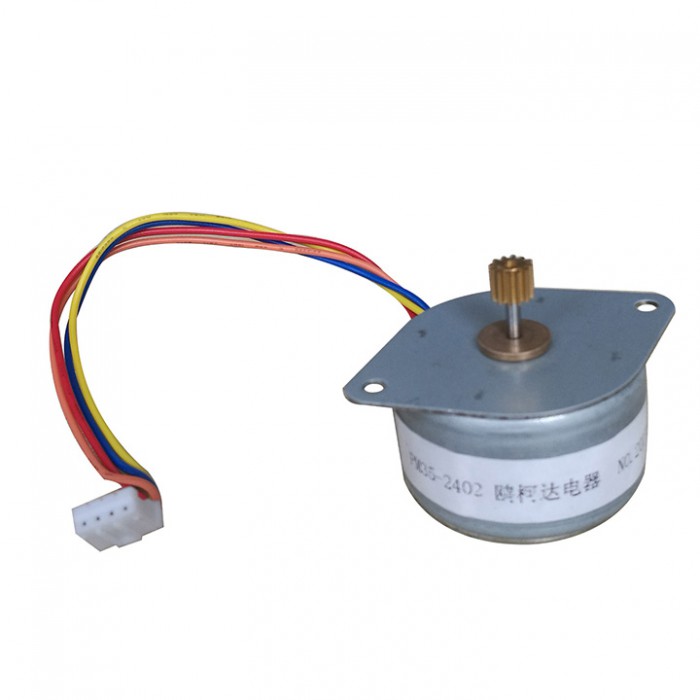

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

NO.:OSP001469
Post a review

Our Price:$4.99

Description Specification Custom Options Review

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

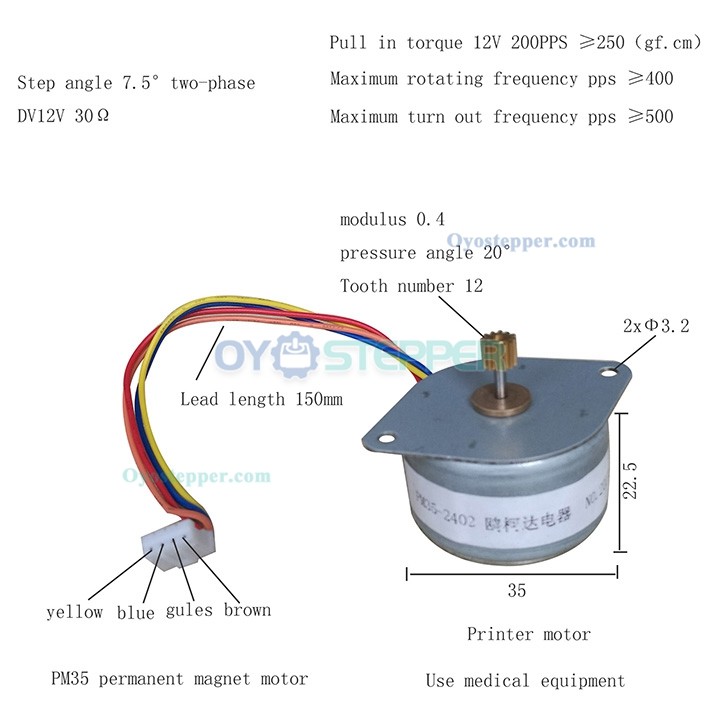

Electrical Specification:
Manufacturer Part Number:PM35-2402
Motor Type: PM Stepper Motor
Phase: 2
Step Angle: 7.5 deg
Phase Voltage:12VDC
Pull in Torque≥2.45Ncm(3.47 oz.in)
Phase Resistance: 40 ± 10% ohms(25 ℃)
Inductance: 17 mH ± 20%

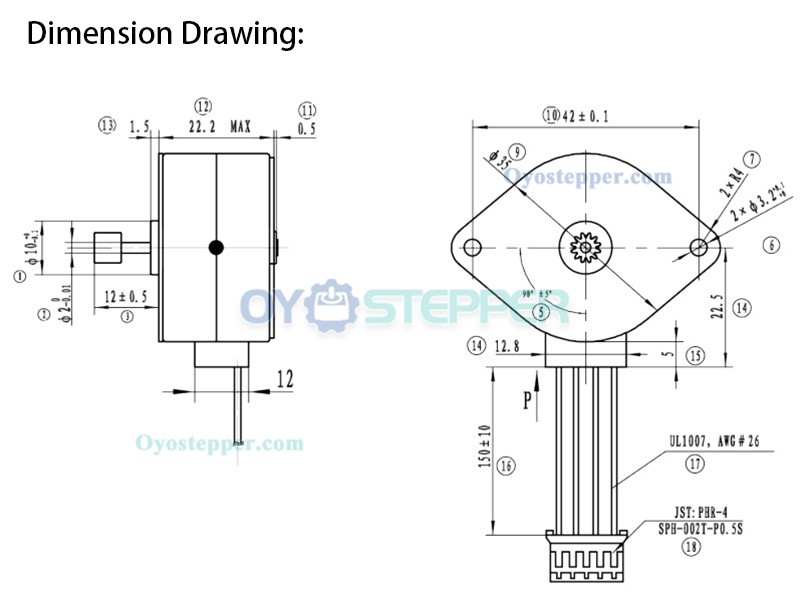

Physical Specification:
Frame Size: Φ35 mm
Body Length:22.5 mm
Shaft Diameter: Φ2 mm
Shaft Length: 12 mm
Number of Leads:4
Lead Length: 150 mm
Weight:40g;

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm

Oukeda PM Stepper Motor for Printer 7.5 Deg 2.45Ncm 12V 2 Phase Φ35 mm
