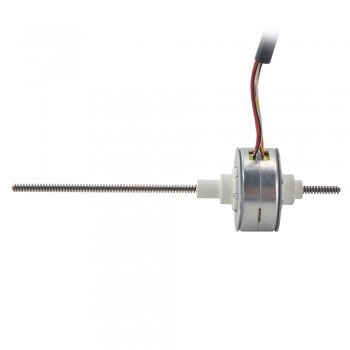

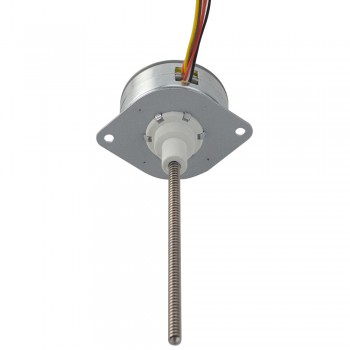

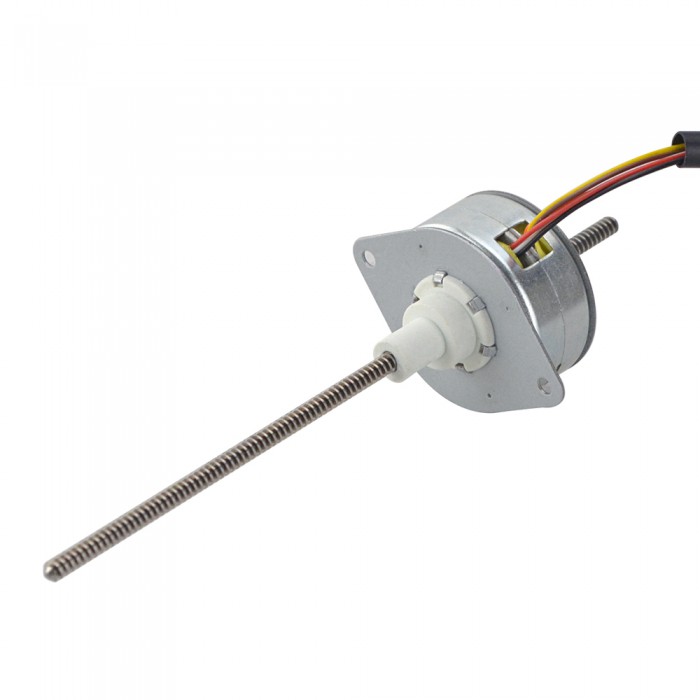

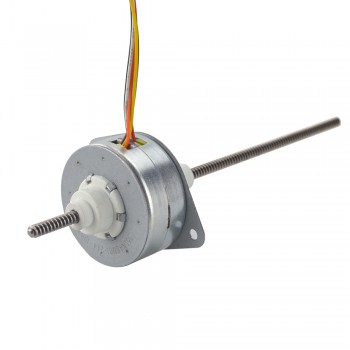

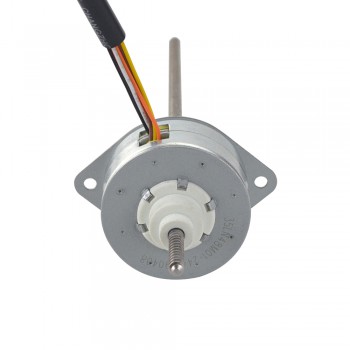

Φ35x17.5mm PM Precision Non-Captive Linear Stepper Motor 0.46A Lead 1.22mm/0.047" Length 139.7mm

Φ35x17.5mm PM Precision Non-Captive Linear Stepper Motor 0.46A Lead 1.22mm/0.047" Length 139.7mm
NO.:35LN48M01-244
Post a review
Special Offer in June 2023:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 10th, 2023
  • Note:No coupon code needed, please place order directly!
Our Price:$30.01
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $28.51 5%
10 $27.91 7%
50 $27.01 10%
100 $25.51 15%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35LN48M01-244
  • Motor Type: PM Non-Captive Linear Stepper
  • Phase: 4
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.46 A
  • Thrust: 25 N(100 Hz)
  • Phase Resistance: 11 ± 7% ohms(20 ℃)
  • Inductance: 2.2 mH ± 20%
  • IP Protection: IP30
  • Life: 1500000 cycles

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 17.5 mm
  • Lead Screw Length: 139.7 mm(5.5")
  • Lead Screw Diameter: Φ3.56 mm(0.14")
  • Lead/Revolution: 1.22 mm(0.047")
  • Lead/Step: 0.0254 mm(0.001")

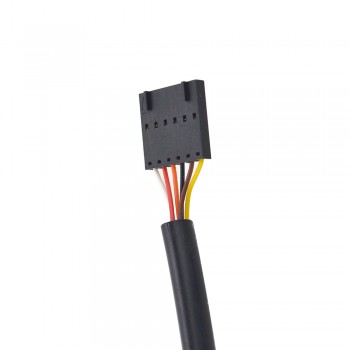

  • Number of Leads: 6 with connector Molex 5057-9406
  • Lead Length: 101.6 mm
  • Weight: 80 g

Connection

A+
O+
A-
B+
O-
B-
Black
White
Red
Brown
Yellow
Orange



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Φ35x22mm PM External Linear Stepper Motor Precision 0.28A Lead 0.5mm/0.0197" Length 21.5mm
Next: Φ35x22mm PM External Precision linear stepper motor 0.2A Lead 0.5mm/0.0197" Length 21.5mm
Electrical Specification
Phase Resistance(ohm) 11
Rated Current (A) 0.46
Step Angle(°) 7.5
Motor Type Non-Captive
No. of Phase 2
Physical Specification
Body Length(mm) 17.5
Frame Size(mm) Φ35
Lead Length(mm) 101.6
Lead Screw Diameter(mm) Φ3.56
Lead Screw Length(mm) 139.7
No. of Lead 6
Lead Travel/Revolution(mm) 1.22
Lead Travel/Step(mm) 0.0254
