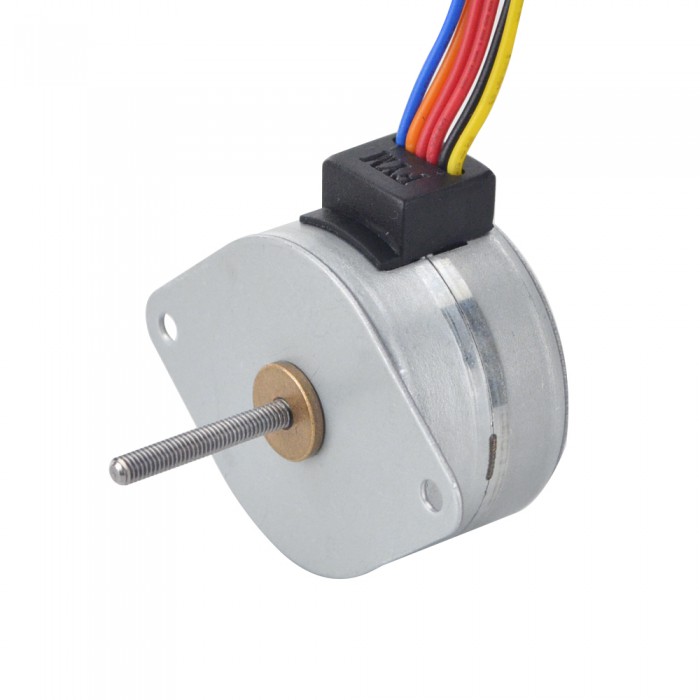

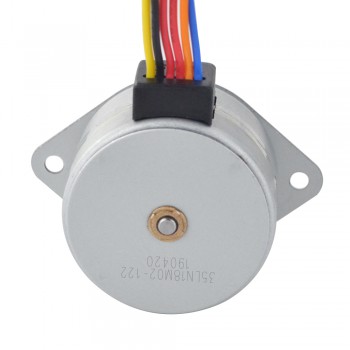

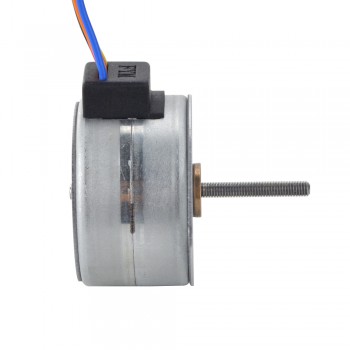

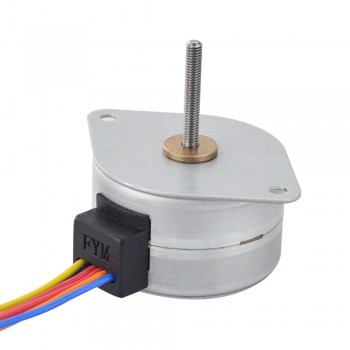

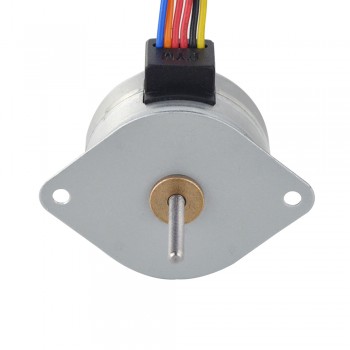

PM External Precision linear stepper moto1.8 Deg r 0.2A Lead 0.5mm/0.0197" Lead Screw 21.5mm Φ35x22mm

PM External Precision linear stepper moto1.8 Deg r 0.2A Lead 0.5mm/0.0197" Lead Screw 21.5mm Φ35x22mm
NO.:35LN48M02-122
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$12.36
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $11.74 5%
30 $11.49 7%
50 $11.12 10%
100 $10.75 13%
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 35LN48M02-122
  • Motor Type: PM External Linear Stepper
  • Phase: 2
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.2 A
  • Holding Torque: 50.96 mN.m(7.218oz.in)
  • Phase Resistance: 60 ± 7% ohms(20 ℃)
  • Inductance: 31.6 mH ± 20%
  • Life: 3000 h

Physical Specification

  • Frame Size: Φ35 mm
  • Body Length: 22 mm
  • Lead Screw Length: 21.5 mm(0.846")
  • Lead Screw Diameter: Φ3 mm(0.118")
  • Lead/Revolution: 0.5 mm(0.0197")
  • Lead/Step: 0.0104 mm(0.0004")

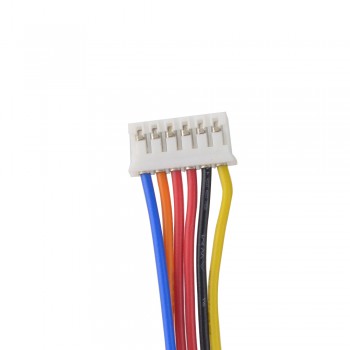

  • Number of Leads: 6 with connector PH-6Y
  • Lead Length: 250 mm
  • Weight: 88.5 g

Connection

A+
O+
A-
B+
O-
B-
Yellow
Red
Orange
Black
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: PM Precision Non-Captive Linear Stepper Motor 0.46A Lead 1.22mm/0.047" Lead Screw 139.7mm Φ35x17.5mm
Next: PM External Precision Linear Stepper Motor 0.4A Lead 0.5mm/0.0197" Lead Screw 21mm Φ42x16.5mm
Electrical Specification
Holding Torque (oz.in) 7.218
Inductance(mH) 31.6
Phase Resistance(ohm) 60
Rated Current (A) 0.2
Step Angle(°) 7.5
No. of Phase 2
Holding Torque(mN.m) 50.96
Physical Specification
Body Length(mm) 22
Frame Size(mm) Φ35
Lead Length(mm) 250
Lead Screw Diameter(mm) Φ3
Lead Screw Length(mm) 21.5
No. of Lead 6
Lead Travel/Revolution(mm) 0.5
Lead Travel/Step(mm) 0.0104
