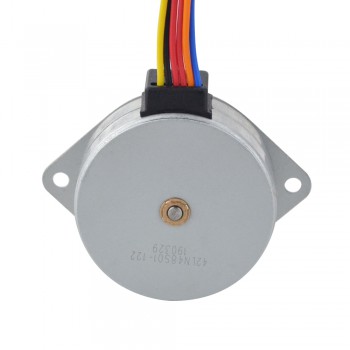

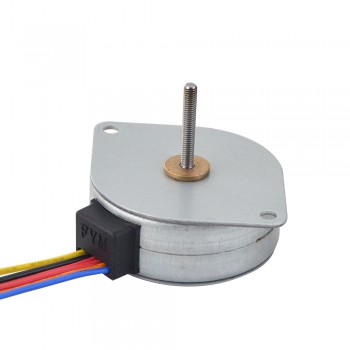

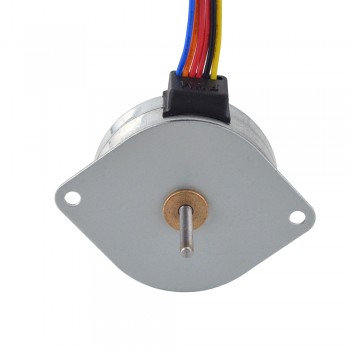

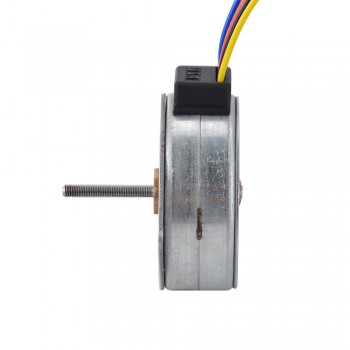

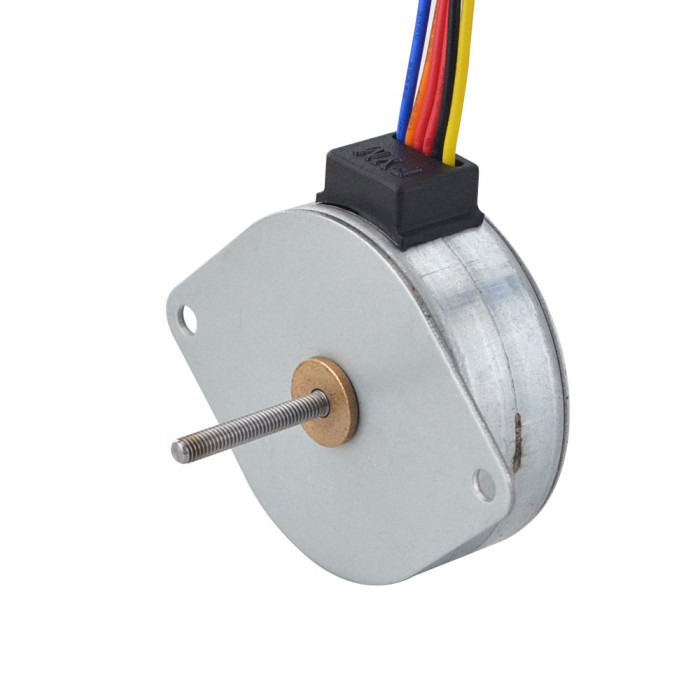

Φ42x16.5mm PM External Precision Linear Stepper Motor 0.4A Lead 0.5mm/0.0197" Length 21mm

NO.:42LN48S01-122
Review: Post a review
Latest price:$16.63
Buy It Now:$12.79
Quantity:- +

Buy More, Save more!
5 - 9 10 - 49 50 - 99 100 - Max
$11.68 $11.12 $10.57 $10.01
Add To Cart

Electrical Specification

  • Manufacturer Part Number: 42LN48S01-122
  • Motor Type: PM External Linear Stepper
  • Phase: 4
  • Step Angle: 7.5 deg
  • Rated Current/phase: 0.4 A
  • Holding Torque: 53.9 mN.m(7.634oz.in)
  • Phase Resistance: 40 ± 7% ohms(20 ℃)
  • Inductance: 20 mH ± 20%
  • Life: 3000 h

Physical Specification

  • Frame Size: Φ42 mm
  • Body Length: 16.5 mm
  • Lead Screw Length: 21 mm(0.827")
  • Lead Screw Diameter: Φ3 mm(0.118")
  • Lead/Revolution: 0.5 mm(0.0197")
  • Lead/Step: 0.0104 mm(0.0004")

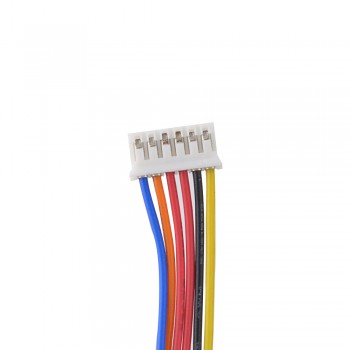

  • Number of Leads: 6 with connector PH-6Y
  • Lead Length: 240 mm
  • Weight: 100 g

Connection

A+
O+
A-
B+
O-
B-
Yellow
Red
Orange
Black
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Φ35x22mm PM External Precision linear stepper motor 0.2A Lead 0.5mm/0.0197" Length 21.5mm
Next: External Rotor Motor 24V 2760RPM 0.0253Nm 7W 0.5A Ф32x17.5mm
Electrical Specification
Holding Torque (oz.in) 7.634
Inductance(mH) 20
Phase Resistance(ohm) 40
Rated Current (A) 0.4
Step Angle(°) 7.5
Motor Type External
No. of Phase 4
Holding Torque(mN.m) 53.9
Physical Specification
Body Length(mm) 16.5
Frame Size(mm) Φ42
Lead Screw Diameter(mm) Φ3
Lead Screw Length(mm) 21
No. of Lead 6
Lead Travel/Revolution(mm) 0.5
Lead Travel/Step(mm) 0.0104
