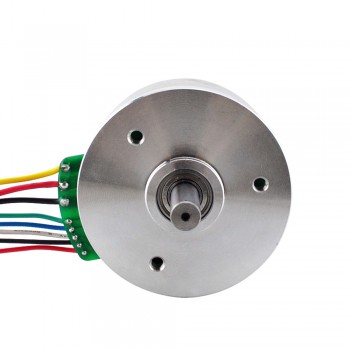

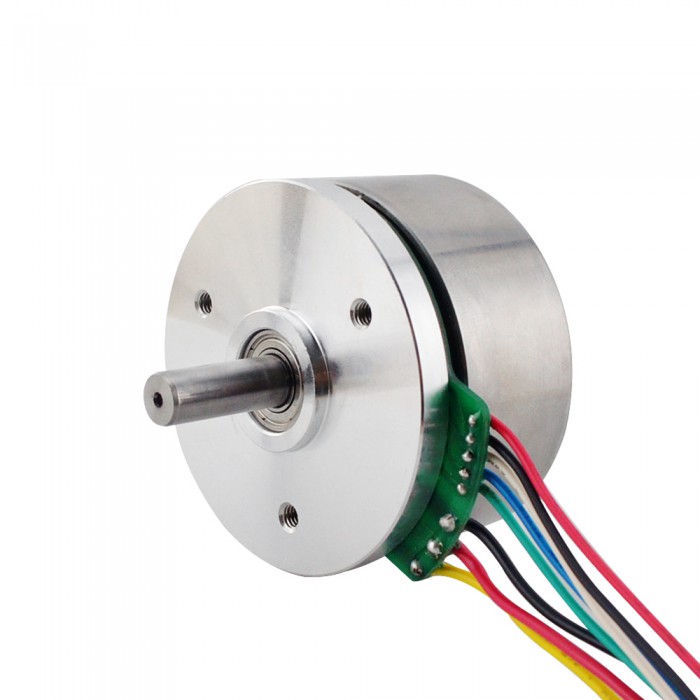

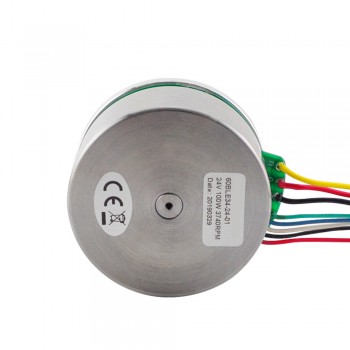

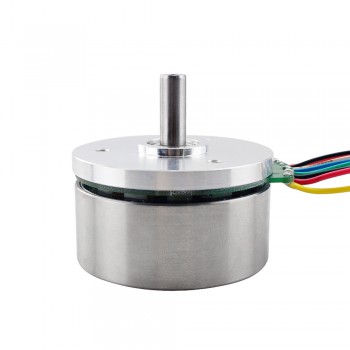

Brushless DC External Rotor Motor 24V 3740RPM 0.284Nm 100W 5.3A Ф61.2x34mm
- Manuals and Documentation: Full Datasheet:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till June 30th, 2026
- Note:No coupon code needed, please place order directly!
The 60BLE34-24-01 BLDC motor runs at 3740 rpm on 24 V, delivers 284 mN·m, and features a 61 mm frame with Hall sensors and an 8 mm shaft.
Electrical Specification
Manufacturer Part Number: 60BLE34-24-01
Phase: 3
Poles: 14
Resistance/Line: 0.3±0.1 ohms@20℃
Inductance/Line: 0.2±0.2 mH@1kHz
Rated Voltage: 24 VDC
No Load Speed: 4250±10% RPM
No Load Current: 0.8 A
Rated Torque: 284 mN.m
Rated Speed: 3740 RPM
Rated Current: 5.0 A
Rated Power: 100 W
Back EMF Constant: 4.2 Vrms/kRPM
Torque Constant: 56.7 mN.m/A
Rotor Inertia: 1210 g.cm2
Temperature Rise: Less than 80k
Insulation Class: B 130 ℃
Dielectric Strength: 500 VAC 1MIN
Insulation Resistance: 100 MOhm @500VDC
Ambient Temperature: -25 ~ +50 ℃
Physical Specification
Frame Size: Φ61.2 mm
Body Length: 34 mm
Shaft Diameter: Φ8 mm
Shaft Length: 23 mm
Number of Leads: 8
Lead Length: 300 mmMin.
Sensor: Hall Sensor
Weight: 400g
Connection
|
U
|
V
|
W
|
GND
|
2
|
1
|
3
|
VHall
|
|
Black
|
Yellow
|
Red
|
Black
|
Green
|
Blue
|
White
|
Red
|
| BLDC Motor Specification | |
|---|---|
| Insulation Class | B 130 ℃ |
| Rated Current(A) | 5 |
| Rated Power(W) | 100 |
| Rated Torque(Nm) | 0.284 |
| Rated Voltage(V) | 24 |
| Phase | 3 |
| Poles | 14 |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | Φ61.2 |
| No. of Lead | 8 |
| Shaft Diameter(mm) | 8 |
| Shaft Length(mm) | 23 |
| Weight(g) | 400 |
