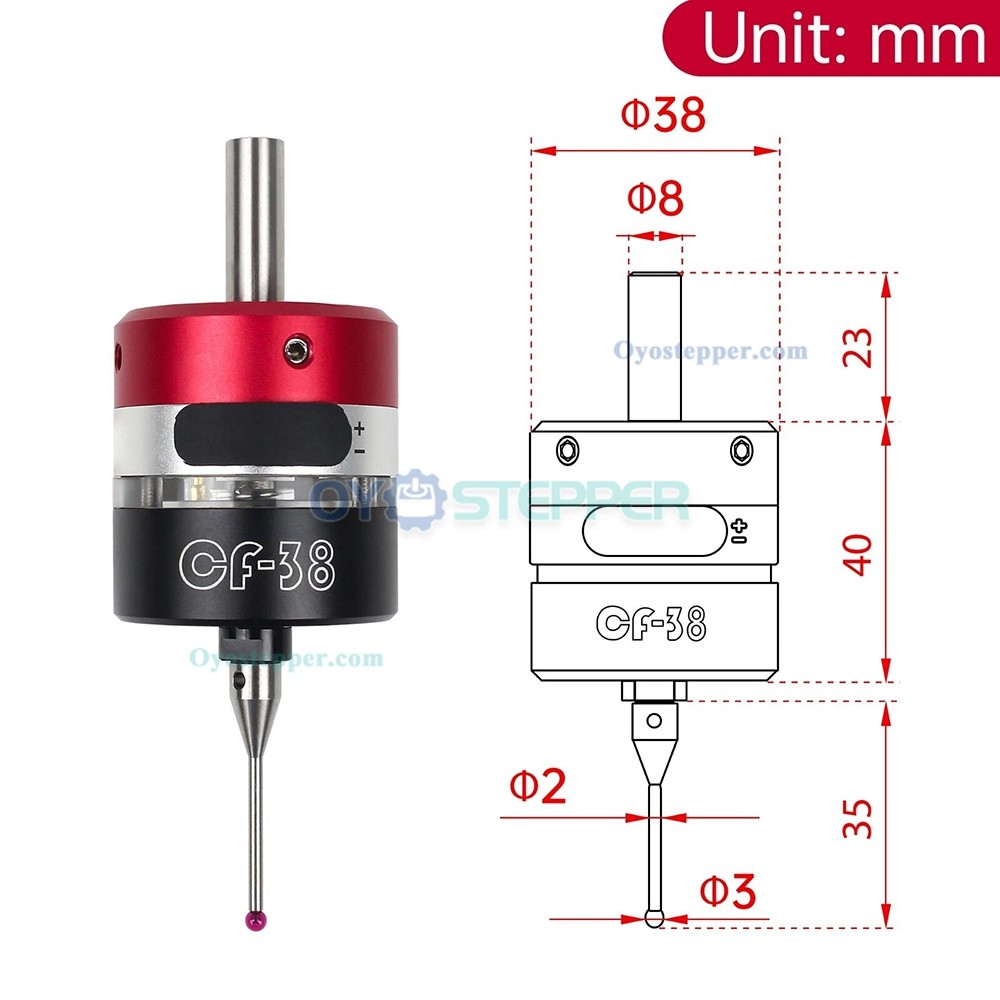

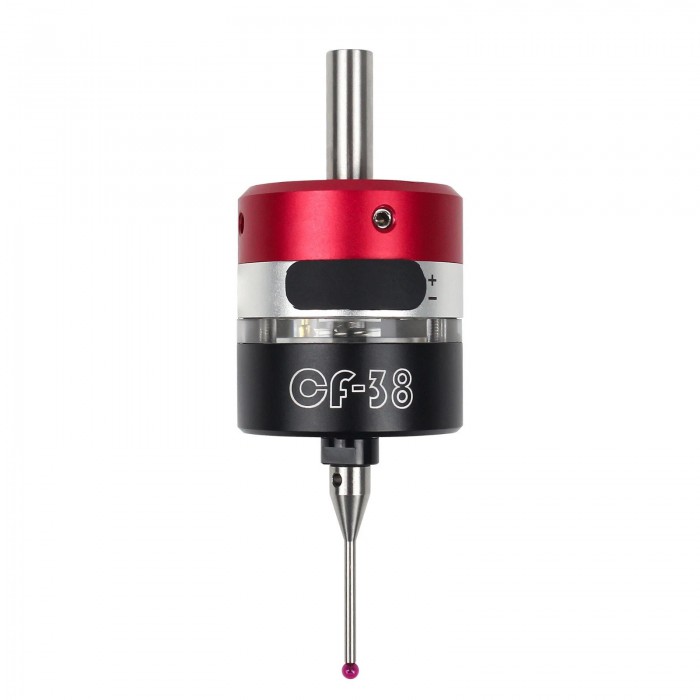

CF-38 3D Trigger Edge Finder for CNC Milling Touch Probe Trigger Edge Finder

CF-38 3D Trigger Edge Finder for CNC Milling Touch Probe Trigger Edge Finder

Features

3D touch probe for tool setting on machining equipment.

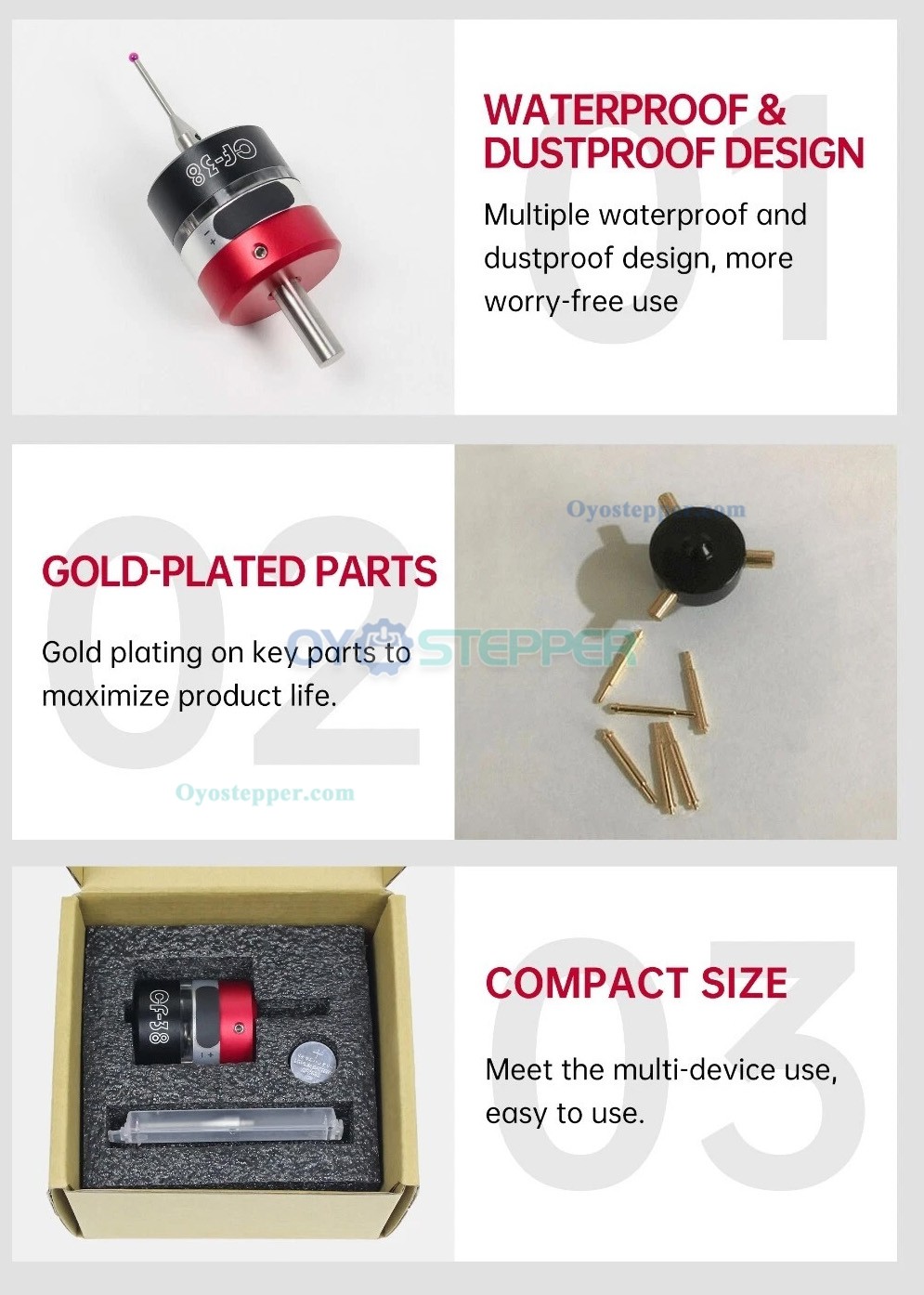

Waterproof and dust-resistant design.

Equipped with a tungsten steel probe and ruby tip.

Gold-plated key internal components.


Specifications:

Model: CF-38

Repeatability: ≥0.005 mm

Probe Directions: ±X, ±Y, +Z

Probe Safe Travel: ±20° in X/Y plane, +2.5 mm in Z direction

Trigger Life: ≤3 million cycles

Battery: Uses a CR1632 3V button cell (not included).


Package Includes

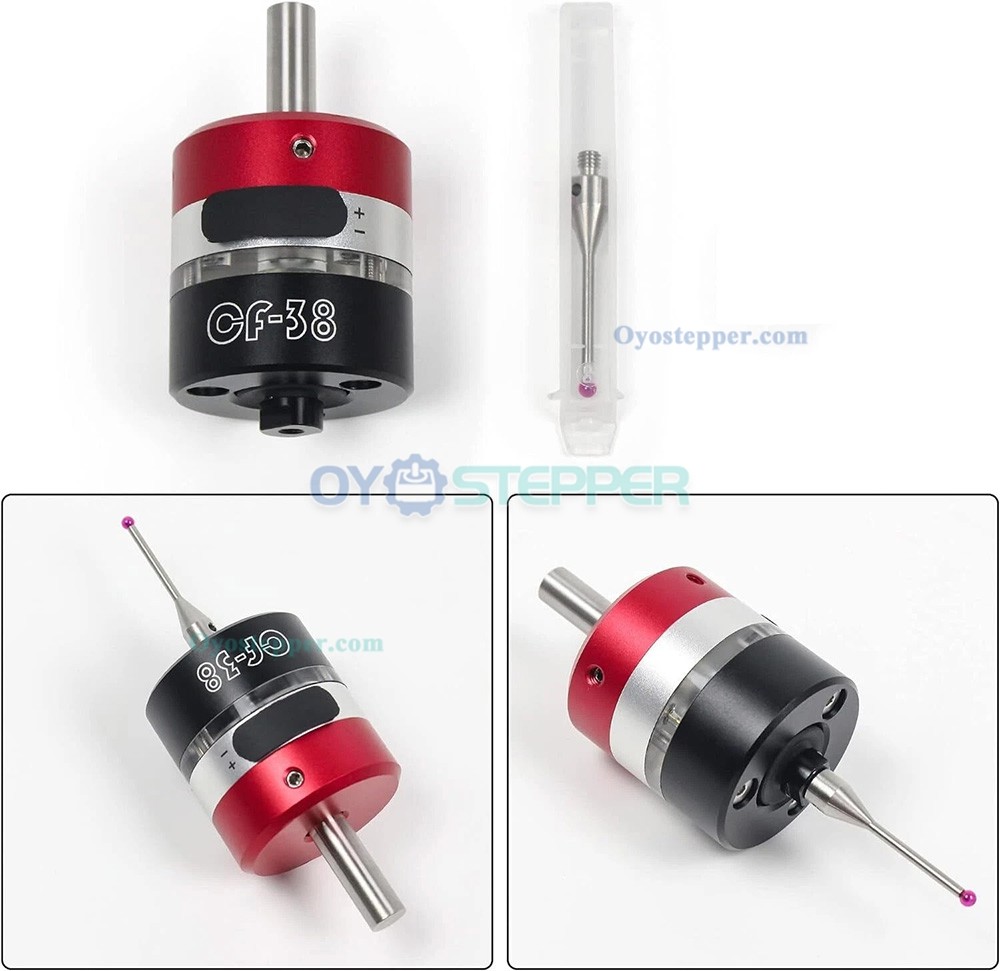

1 x 3D Tool Setting Probe

1 x Probe Tip

Note:
Our package does not include the CR1632 3V button battery.
