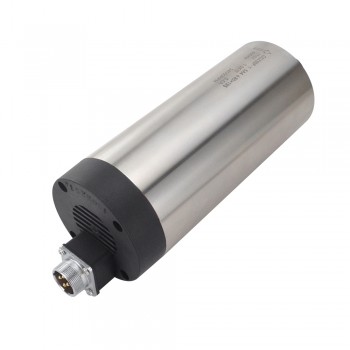

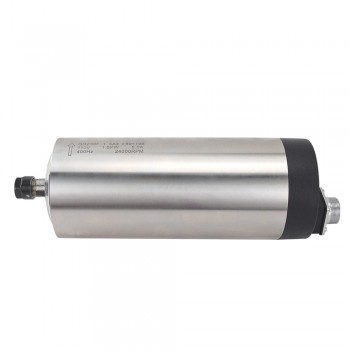

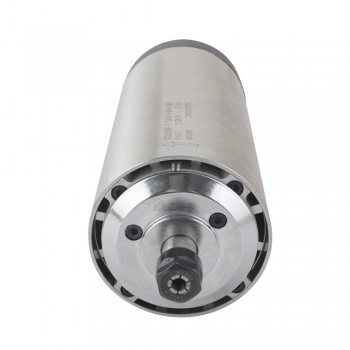

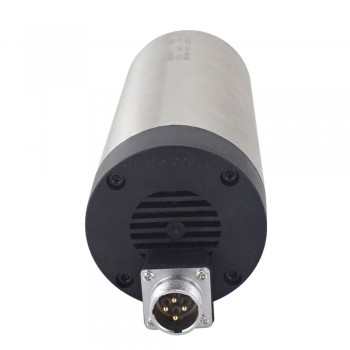

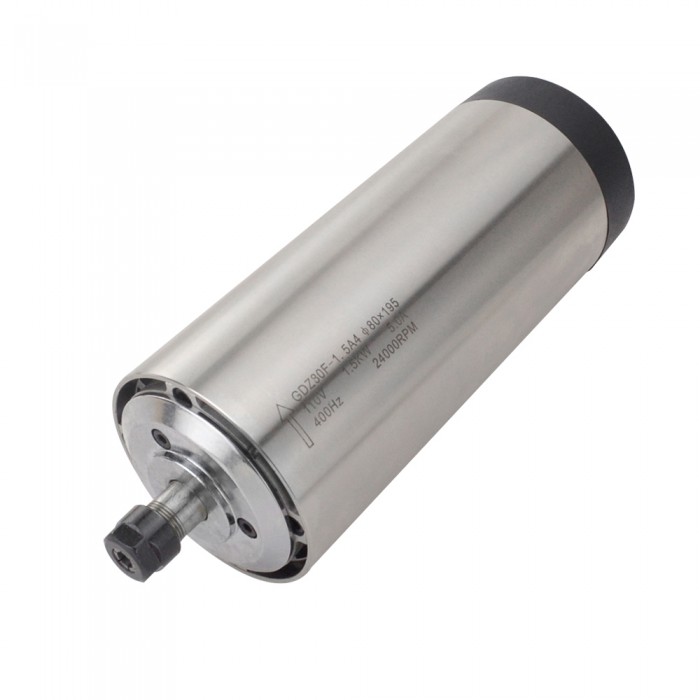

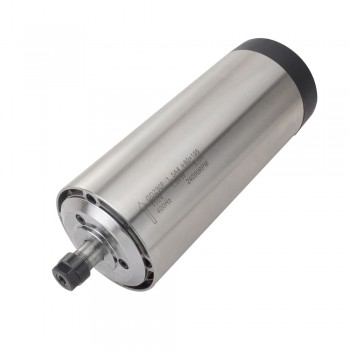

1.5KW Air Cooled Spindle Motor110V 24000RPM 400Hz ER11 Collet VFD CNC Spindle Motor
- Manuals and Documentation: Manual:
Our Price:$155.50
This 1.5 kW air‑cooled spindle runs at 24,000 rpm on 110 VAC, features an 80 mm body, ER‑11 collet, and <0.005 mm runout.
Specification
Manufacturer Part Number: GDZ80F-1.5A4
Material: Stainless steel
Size: Ø80x195(Middle body diameter: 80 mm, Length:195 mm)
Power: 1.5 KW
Voltage: 110 VAC
Current: 5 A
Frequency: 0 ~ 400 Hz
Speed: 0 ~ 24000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER11 Collet(6 mm)
Bearings: 2x7002, 2x7002
Weight: 4.05 kg
| Spindle Motor Specification | |
|---|---|
| Frequency(Hz) | 400 |
| Speed(RPM) | 24000 |
| Bearing Lubrication | Grease |
| Bearings | 2x7002, 2x7002 |
| Body Length(mm) | 195 |
| Collet Size | ER11 |
| Cooling | Air cooled |
| Current(A) | 5 |
| Diameter(mm) | 80 |
| Material | Stainless steel |
| Shape | Round |
| Voltage(VAC) | 110 |
| Weight(Kg) | 4.05 |
| Power(Kw) | 1.5 |
