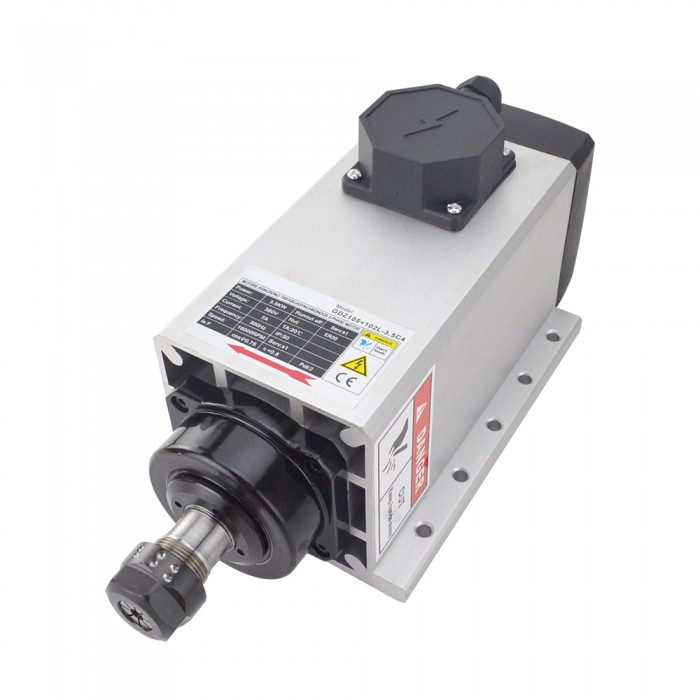

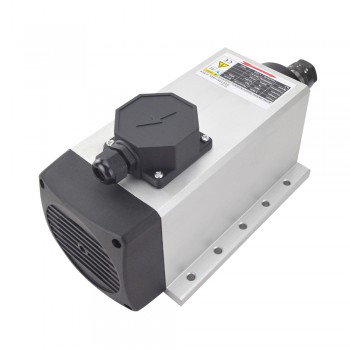

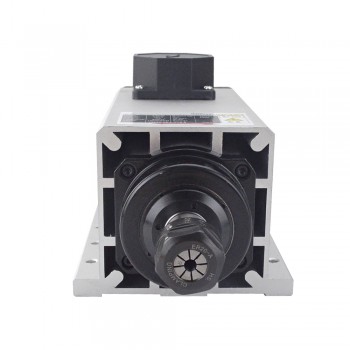

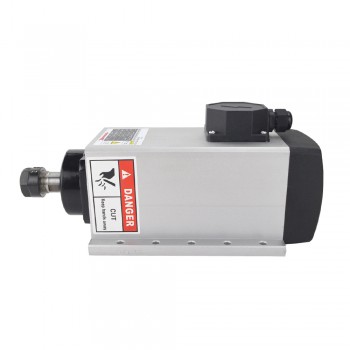

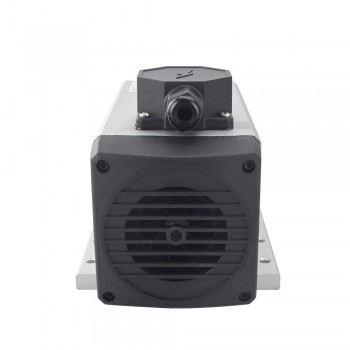

3.5KW Square Air Cooled Spindle Motor 380V 18000RPM 300Hz ER20 Collet VFD CNC Spindle Motor
Specification
Manufacturer Part Number: GDZ105×102L-3.5C4
Material: Stainless steel
Size: 192x102(Length: 192 mm, Width: 102 mm)
Power: 3.5 KW
Voltage: 380 VAC
Current: 7 A
Frequency: 0 ~ 300 Hz
Speed: 0 ~ 18000 RPM
Cooling: Air cooled
Runout off: Less than 0.005 mm
Bearing Lubrication: Grease
Collet size: ER20 Collet(6 mm)
Bearings: 2x7005, 2x7002
Weight: 8.1 kg
Resources
Manual: GDZ105×102L-3.5C4.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Spindle Motor Specification | |
|---|---|
| Bearing Lubrication | Grease |
| Bearings | 2x7005, 2x7002 |
| Body Length(mm) | 192 |
| Collet Size | ER20 |
| Cooling | Air cooled |
| Current(A) | 7 |
| Frequency(Hz) | 0 - 300 |
| Material | Stainless steel |
| Shape | Square |
| Speed(RPM) | 0 - 18000 |
| Voltage(VAC) | 380 |
| Weight(Kg) | 8.1 |
| Power(Kw) | 3.5 |
| Body Height(mm) | 105 |
| Body Width(mm) | 102 |
