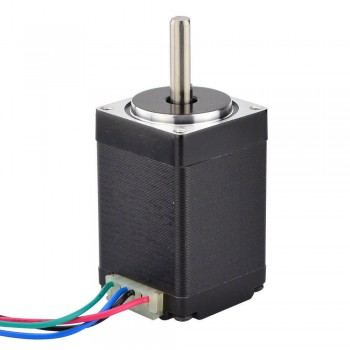

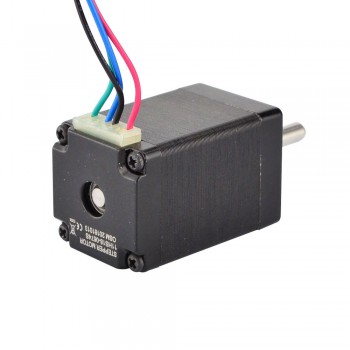

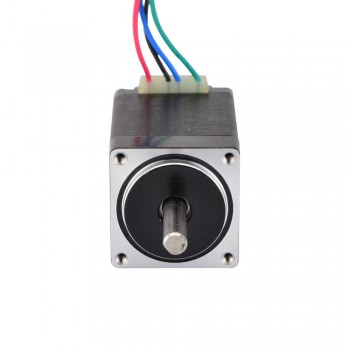

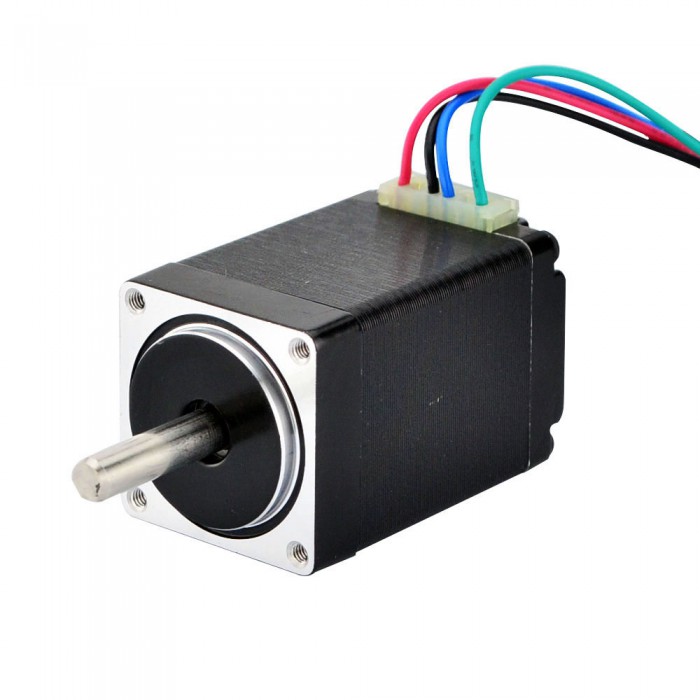

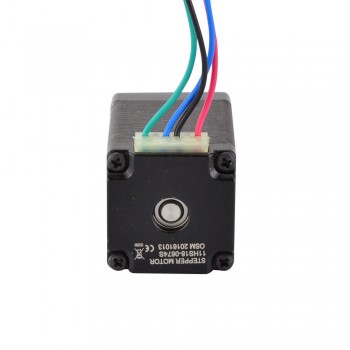

Nema 11 Stepper Motor Bipolar 1.8 deg 9.5Ncm (13.5oz.in) 0.67A 4.6V 28x28x45mm 4 Wires

NO.:SKU:11HS18-0674S
Review: Post a review
Latest price:$16.65
Buy It Now:$12.81
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$11.95 $11.09 $10.24 $9.39
Add To Cart

This bipolar nema 11 stepper motor with step angle 1.8deg and size 28x28x45mm. It has 4 wires, each phase draws 0.67A at 4.6V, with holding torque 9.5Ncm (13.5oz.in).

Electrical Specification

  • Manufacturer Part Number: 11HS18-0674S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 9.5Ncm(13.5oz.in)
  • Rated Current/phase: 0.67A
  • Voltage: 4.6V
  • Phase Resistance: 6.8ohms
  • Inductance : 4.9mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 44.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • D-cut Length: 15mm
  • Number of Leads: 4
  • Lead Length: 500mm
  • Weight: 180g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 11 Stepper Motor Unipolar 1.8 deg 4.3Ncm (6.1oz.in) 0.95A 2.7V 28x31mm 6 Wires
Next: Nema Size 11 Stepper Motor Bipolar 1.8 deg 12Ncm (17oz.in) 0.67A 6.2V 28x28x51mm 4 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 9.5
Holding Torque (oz.in) 13.5
Inductance(mH) 4.9
Phase Resistance(ohm) 6.8
Rated Current (A) 0.67
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 44.5
Frame Size(mm) 28x28
Single Shaft/Dual Shaft Single Shaft
Shaft Type D-Cut
Shaft Diameter(mm) 5
Shaft Length(mm) 20
No. of Lead 4
Lead Length(mm) 500
Weight(g) 140
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.
