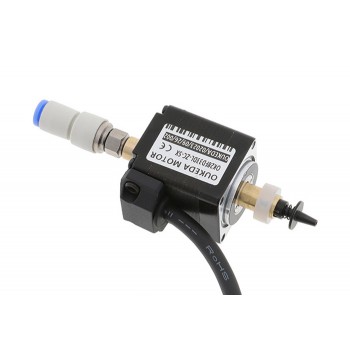

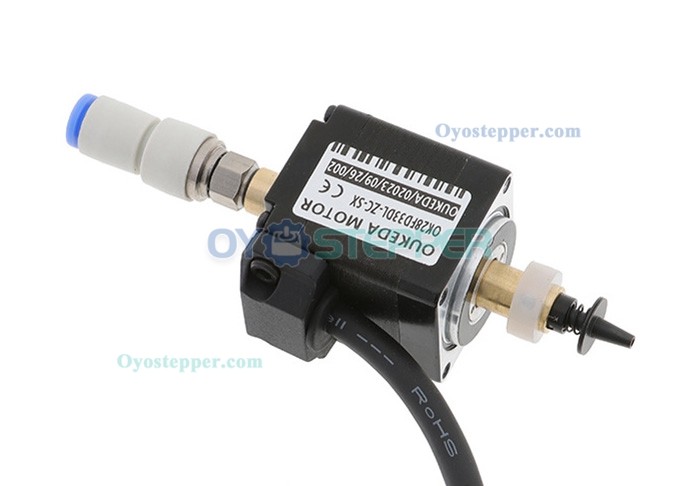

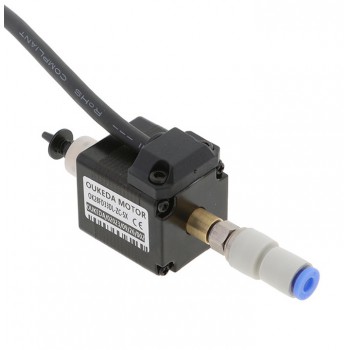

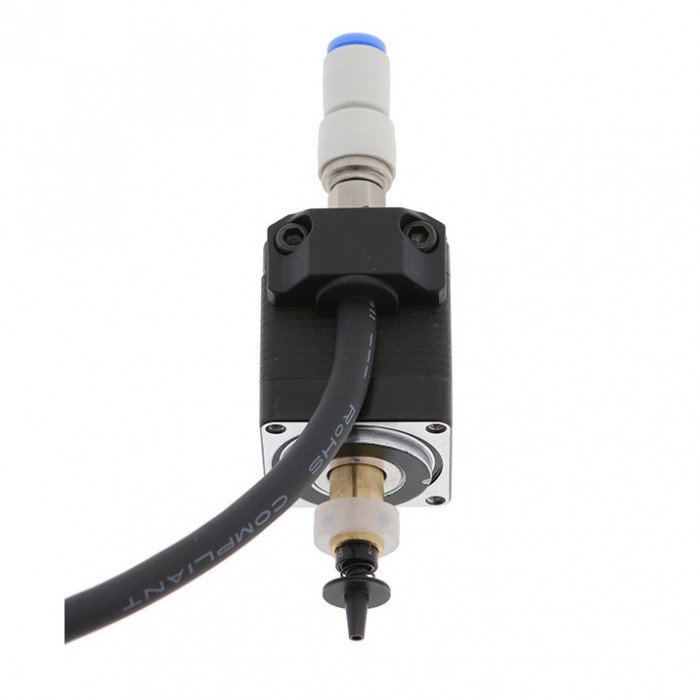

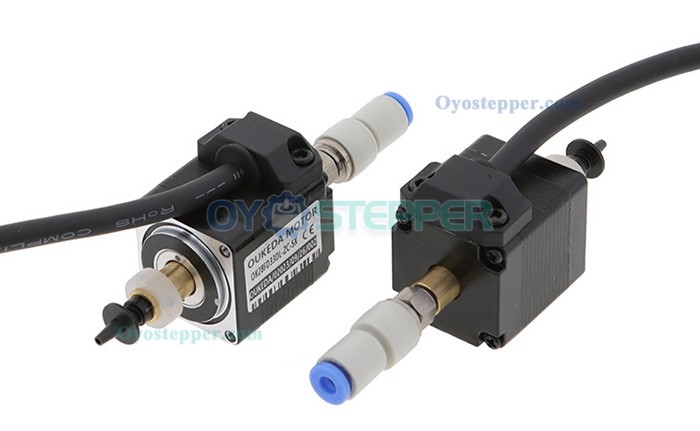

Oukeda Nema 11 Stepper Motor for SMT Placement Machine 1.8 Deg 6Ncm 2 Phase with Cushioning Nozzle
Oukeda Nema 11 Stepper Motor for SMT Placement Machine 1.8 Deg 6Ncm 2 Phase with Cushioning Nozzle
Electrical Specification
Manufacturer Part Number:OK28FD33DL-ZC-SX
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Number of Phase:2
Holding Torque: 6Ncm(8.49oz.in)
Rated Current/phase:1A
Use Voltage:12-24V
Phase Resistance: 2.1ohms
Inductance: 1.5mH±20%(1KHz)
Insulation Class: B 130°C[266°F]

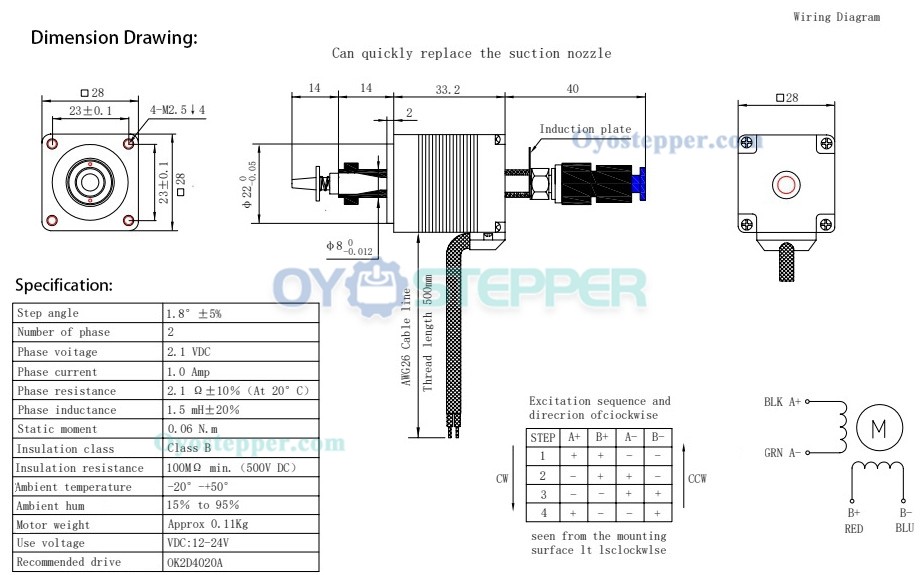

Physical Specification
Frame Size: 28 x 28mm

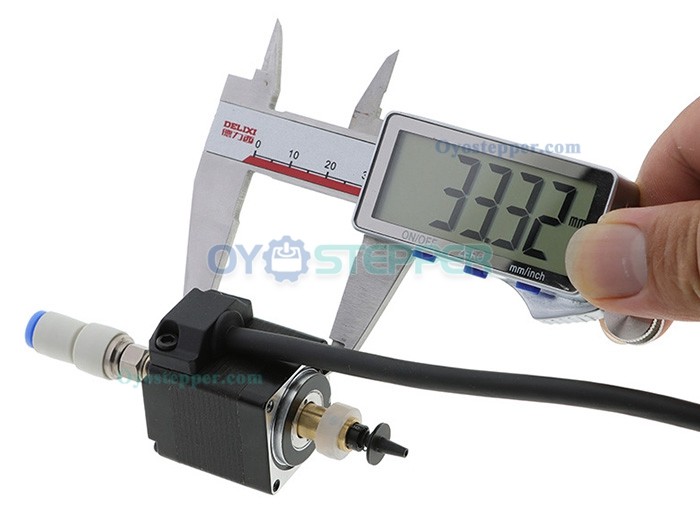

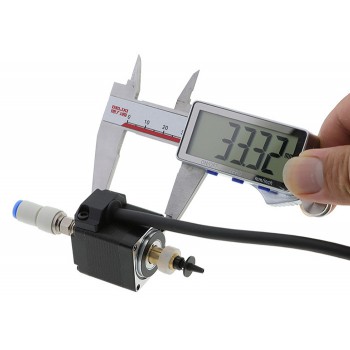

Body Length: 33.2mm
Shaft Diameter: Φ8mm
Front Shaft Length: 28mm
Rear Shaft Length:40mm
Number of Leads: 4
Lead Length: 300mm
Weight: 110g;
.jpg "Oukeda Nema 11 Stepper Motor for SMT Placement Machine 1.8 Deg 6Ncm 2 Phase with Cushioning Nozzle")
.jpg "Oukeda Nema 11 Stepper Motor for SMT Placement Machine 1.8 Deg 6Ncm 2 Phase with Cushioning Nozzle")
.jpg "Oukeda Nema 11 Stepper Motor for SMT Placement Machine 1.8 Deg 6Ncm 2 Phase with Cushioning Nozzle")
.jpg "Oukeda Nema 11 Stepper Motor for SMT Placement Machine 1.8 Deg 6Ncm 2 Phase with Cushioning Nozzle")
| Electrical Specification | |
|---|---|
| Holding Torque (Ncm) | 6 |
| Holding Torque (oz.in) | 8.49 |
| Rated Current (A) | 1 |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Physical Specification | |
| Body Length(mm) | 33.2 |
| Shaft Diameter(mm) | 8 |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 110 |
| Input Shaft Length(mm) | 28 |
| Output Shaft Length(mm) | 40 |
| Frame Size(mm) | 28x28 |
