Dual Shaft Nema 11 Stepper Motor Bipolar 1.8 Degree 12Ncm (17.04oz.in) 0.67A 6.2V 28x28x51mm 4 Wires
Dual Shaft Nema 11 Stepper Motor Bipolar 1.8deg 12Ncm (17.04oz.in) 0.67A 6.2V 28x28x51mm 4 Wires

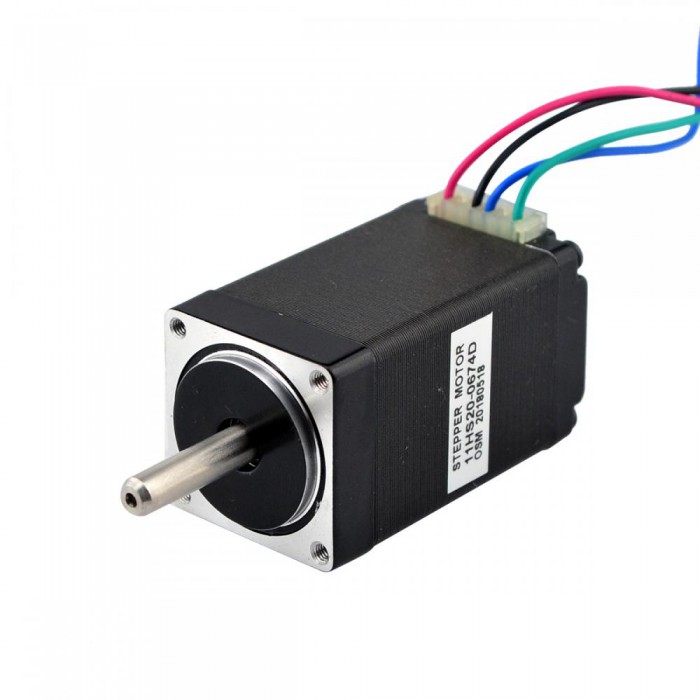

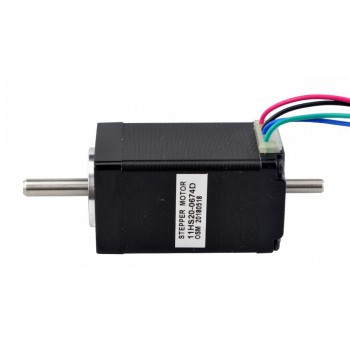

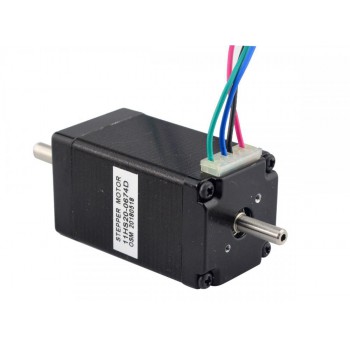

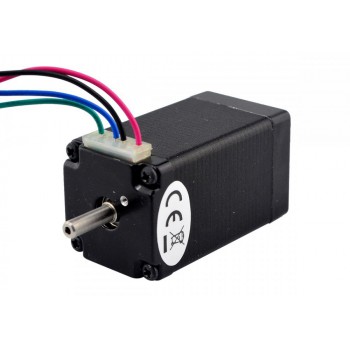

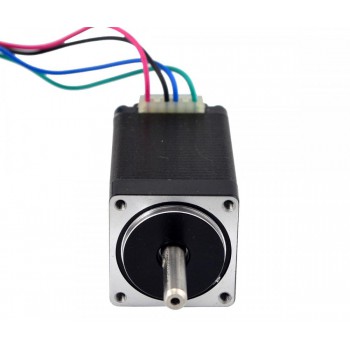

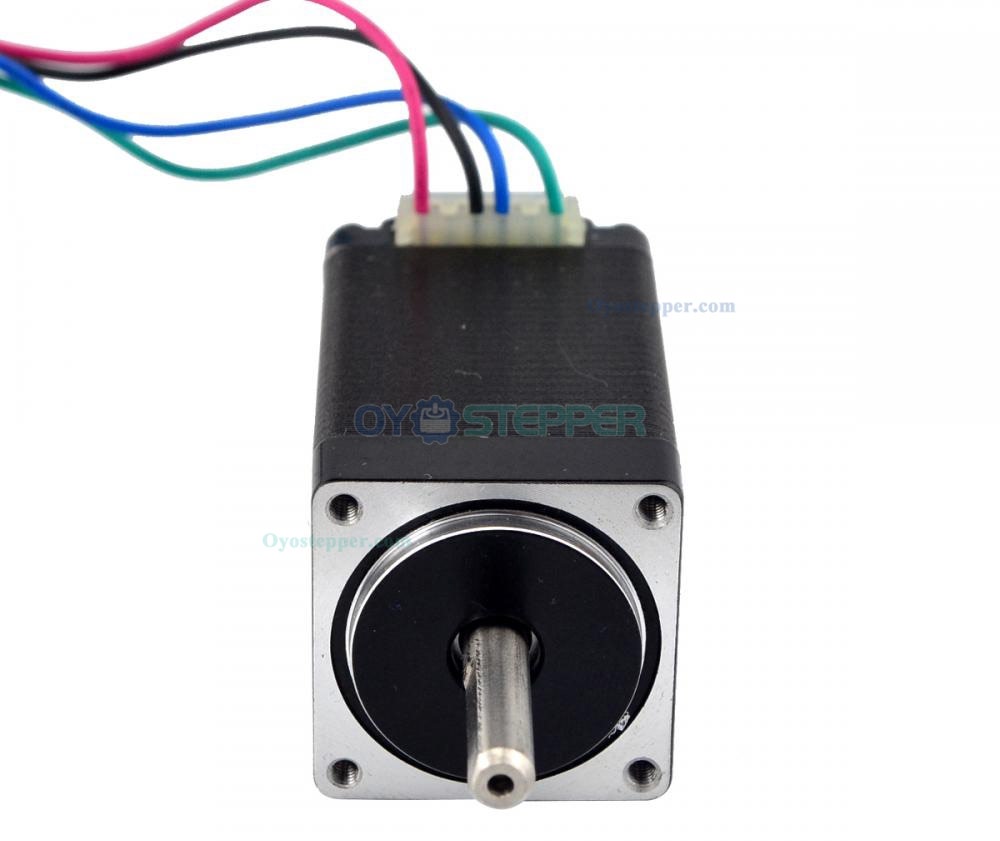

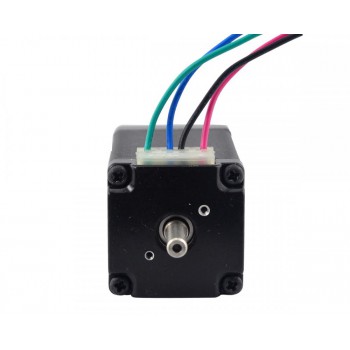

This model is dual shaft Nema 11 Bipolar stepper motor,it with step angle 1.8deg and size 28x28x51mm. It has 4 wires, each phase draws 0.67A at 6.2V, with holding torque 12Ncm (17.04oz.in).
Electrical Specification
Manufacturer Part Number: 11HS20-0674D
Motor Type: Bipolar Stepper
Step Angle: 1.8 deg
Holding Torque: 12Ncm(17.04oz.in)
Rated Current/phase: 0.67A
Voltage: 6.2V
Phase Resistance: 9.2ohms
Inductance: 5.7mH ± 20%(1KHz)
Physical Specification
Frame Size: 28 x 28mm
Body Length: 51mm
Shaft Diameter: Φ5mm
Front Shaft Length: 20mm
Rear Shaft Length:12mm
D-cut Length: 15mm
Number of Leads: 4
Lead Length: 500mm
Weight: 110g
Connection
|
A+
|
A-
|
B+
|
B-
|
|
Black
|
Green
|
Red
|
Blue
|
Resources
Full Datasheet: 11HS20-0674D.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 12 |
| Holding Torque (oz.in) | 17.00 |
| Inductance(mH) | 5.7 |
| Phase Resistance(ohm) | 9.2 |
| Rated Current (A) | 0.67 |
| Physical Specification | |
| Body Length(mm) | 51 |
| Frame Size(mm) | 28x28 |
| Lead Length(mm) | 500 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Shaft Type | D-Cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 200 |
- Connectors: Molex, Harwin, Tyco/AMP, JST etc.
- Lead wires & cables: Special lengths, Protective hose
- Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
- Winding: Resistance, Inductance, Rated Current, etc.
