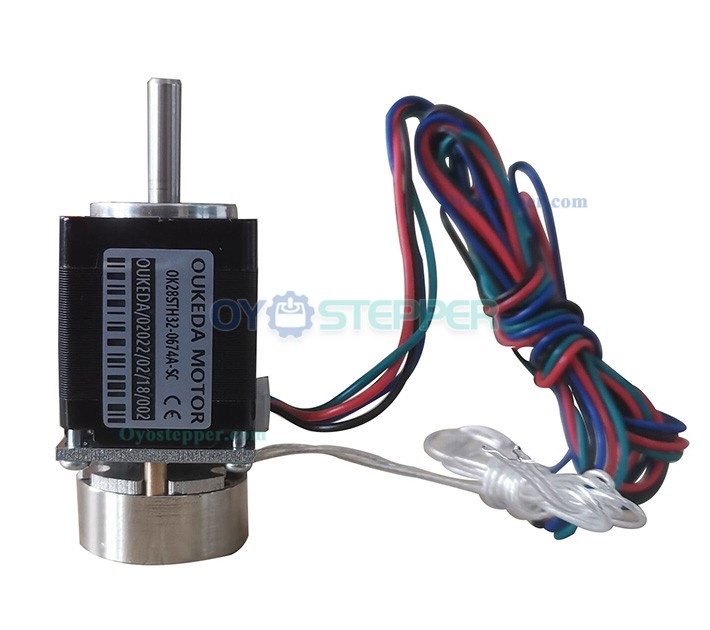

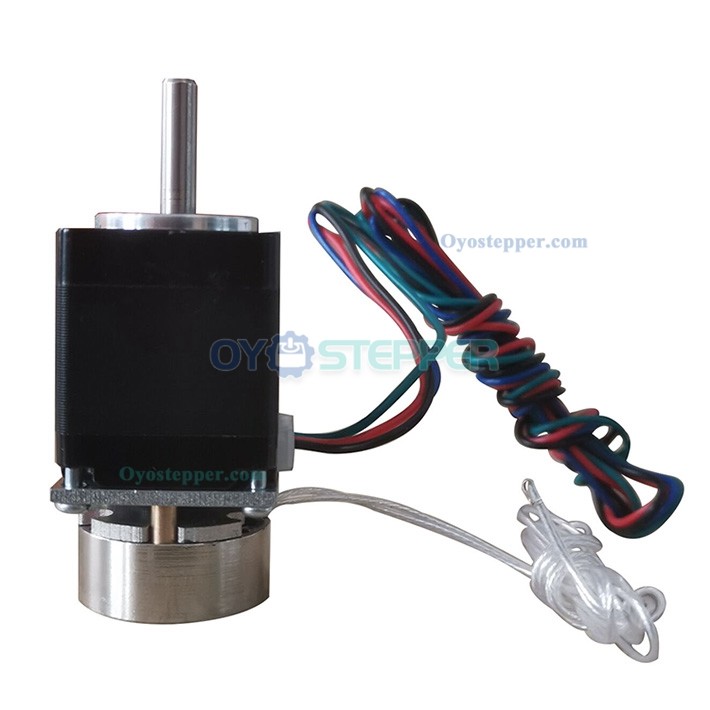

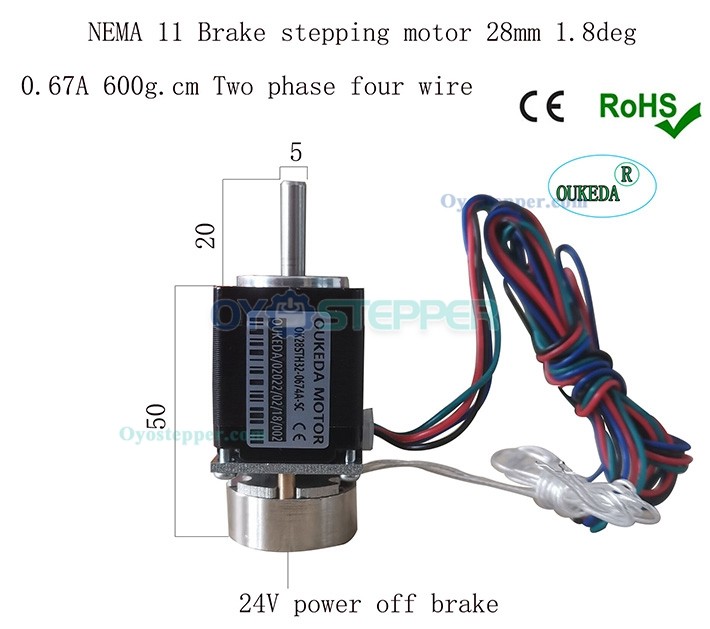

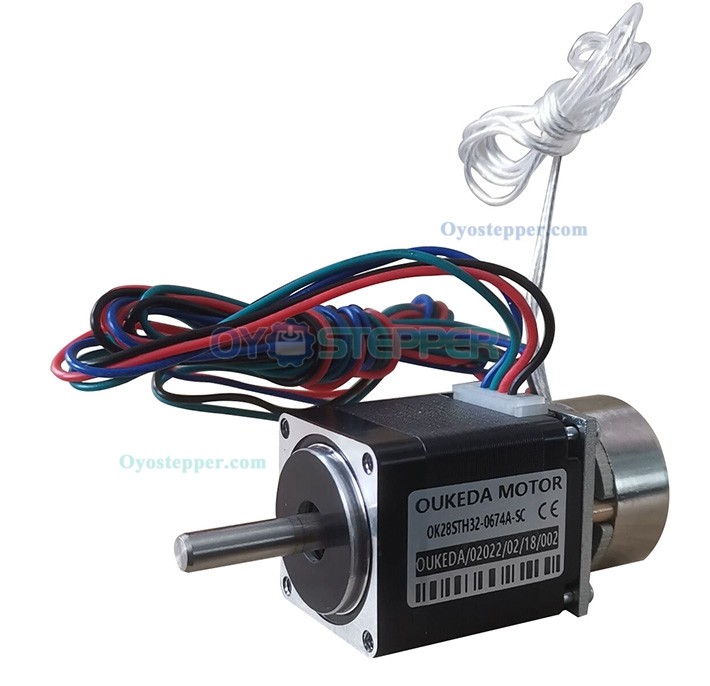

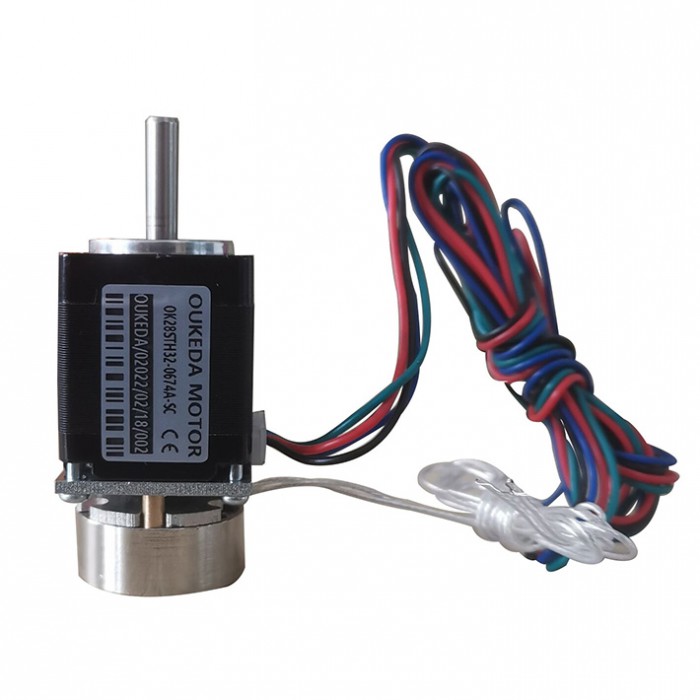

NEMA11 Stepper Motor with Brake 1.8 Deg 5.88Ncm 3.75V 0.67A 28 x 28mm 2 Phase D-Cut
NEMA11 Stepper Motor with Brake 1.8 Deg 5.88Ncm 3.75V 0.67A 28 x 28mm 2 Phase D-cut
Electrical Specification:
Manufacturer Part Number:OK28STH32-0674A-SC
Motor Type: Bipolar Stepper
Number of Phase:2
Step Angle: 1.8 deg
Static Moment: 5.88Ncm(8.32 oz.in)
Phase Voltage:3.75V
Rated Current/phase:0.67A
Phase Resistance: 5.6 ohms± 10%
Inductance: 3.4 mH ± 20%(1KHz);

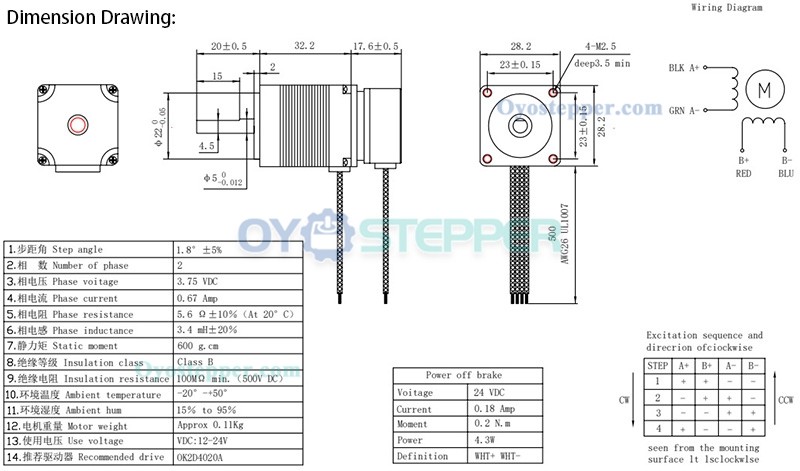

Physical Specification:
Frame Size: 28 x 28 mm
Motor Length: 32.2mm
Brake Length:17.6mm
Shaft Diameter: Φ5mm
Shaft Length: 20mm
D-Cut Length: 15mm
Lead Length: 500mm
Number of Leads: 4
Lead Length: 500 mm
Weight: 110g;
Brake Specification:
Voltage:24V
Current:0.18A
Moment:0.2N.m
Power:4.3W
Definition:WHT+ WHT-;
.jpg "NEMA11 Stepper Motor with Brake 1.8 Deg 5.88Ncm 3.75V 0.67A 28 x 28mm 2 Phase D-Cut")
.jpg "NEMA11 Stepper Motor with Brake 1.8 Deg 5.88Ncm 3.75V 0.67A 28 x 28mm 2 Phase D-Cut")
.jpg "NEMA11 Stepper Motor with Brake 1.8 Deg 5.88Ncm 3.75V 0.67A 28 x 28mm 2 Phase D-Cut")
.jpg "NEMA11 Stepper Motor with Brake 1.8 Deg 5.88Ncm 3.75V 0.67A 28 x 28mm 2 Phase D-Cut")
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Holding Torque (Ncm) | 5.88 |
| Holding Torque (oz.in) | 8.32 |
| No. of Phase | 2 |
| Step Angle(deg.) | 1.8 |
| Open-loop/Closed-loop | Open-loop |
| Phase Current(A) | 0.67 |
| Phase Voltage(V) | 3.75 |
| Physical Specification | |
| Body Length(mm) | 32.2 |
| No. of Lead | 4 |
| Shaft Diameter(mm) | 5 |
| Shaft Length(mm) | 20 |
| Shaft Type | D-cut |
| Single Shaft/Dual Shaft | Dual Shaft |
| Weight(g) | 110 |
| Frame Size(mm) | 28x28 |
