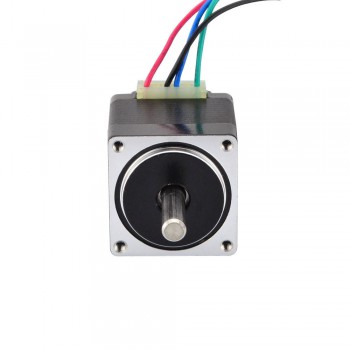

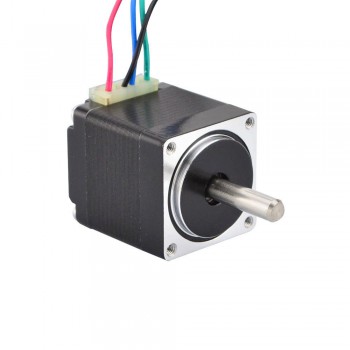

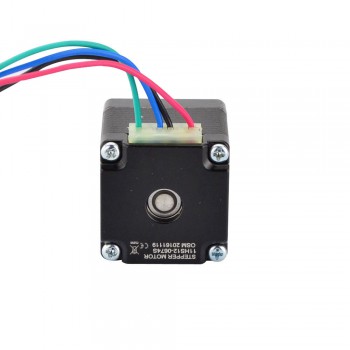

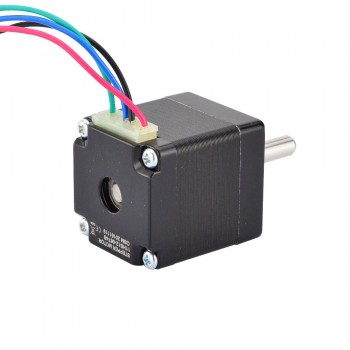

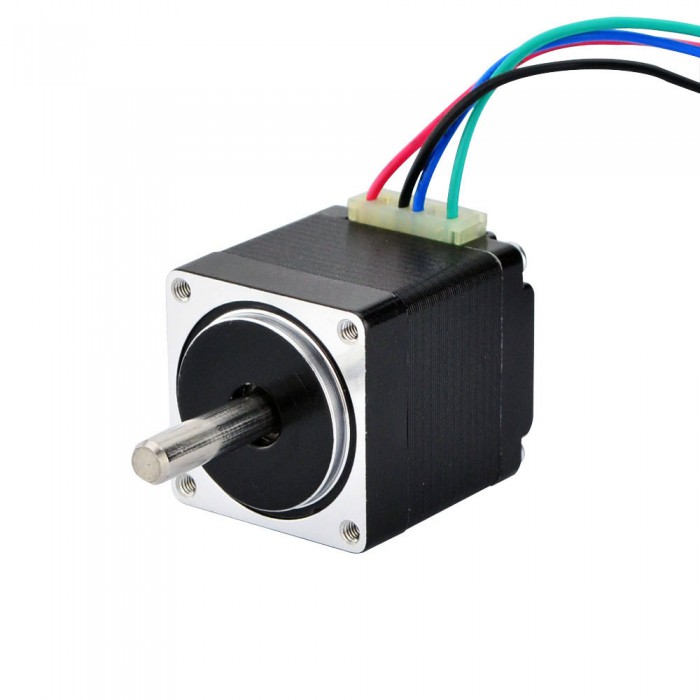

Nema 11 Stepper Motor Bipolar 1.8 deg 6Ncm (8.5oz.in) 0.67A 3.8V 28x28x31mm 4 Wires

NO.:SKU:11HS12-0674S
Review: Post a review
Latest price:$15.61
Buy It Now:$12.01
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$11.20 $10.41 $9.60 $8.80
Add To Cart

This mini nema 11 bipolar stepper motor with step angle 1.8deg and size 28x28x31mm. It has 4 wires, each phase draws 0.67A at 3.8V, with holding torque 6Ncm (8.5oz.in).

Electrical Specification

  • Manufacturer Part Number: 11HS12-0674S
  • Motor Type: Bipolar Stepper
  • Step Angle: 1.8 deg
  • Holding Torque: 6Ncm(8.5oz.in)
  • Rated Current/phase: 0.67A
  • Voltage: 3.8V
  • Phase Resistance: 5.6ohms
  • Inductance : 4.2mH ± 20%(1KHz)

Physical Specification

  • Frame Size: 28 x 28mm
  • Body Length: 31.5mm
  • Shaft Diameter: Φ5mm
  • Shaft Length: 20mm
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight: 110g

Connection

A+
A-
B+
B-
Black
Green
Red
Blue

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Dual Shaft Nema 8 Stepper Motor Bipolar 4Ncm (5.7oz.in) 0.6A 6V 20x20x38mm 4 Wires
Next: Dual Shaft Nema 11 Stepper Motor Unipolar 1.8 deg 4.3Ncm (6.1oz.in) 0.95A 2.7V 28x31mm 6 Wires
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 7
Holding Torque (oz.in) 9.9
Inductance(mH) 4
Phase Resistance(ohm) 5.6
Rated Current (A) 0.67
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 31.5
Frame Size(mm) 28x28
Single Shaft/Dual Shaft Single Shaft
Shaft Type O
Shaft Diameter(mm) 5
Shaft Length(mm) 20
No. of Lead 4
Lead Length(mm) 300
Weight(g) 110
  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
  • Winding: Resistance, Inductance, Rated Current, etc.

Dale Helmick – 11 Oct 2016

Worked fine hooked to a Aafruit Trinket pro....using on Kinetic Art projects..
Going to add a small heatsink on the chip....for longevity...
