NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1") Travel 25.4mm

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1") Travel 25.4mm
NO.:14C19S1504GF5-025RS
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$90.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $86.44 5%
10 $84.62 7%
50 $81.89 10%
100 $79.16 13%
Add To Cart

NEMA 14 Captive Acme Linear Stepper Motor 1.5A 47mm Stack Screw Lead 2.54mm(0.1") Travel 25.4mm

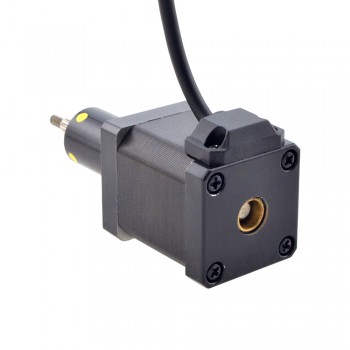

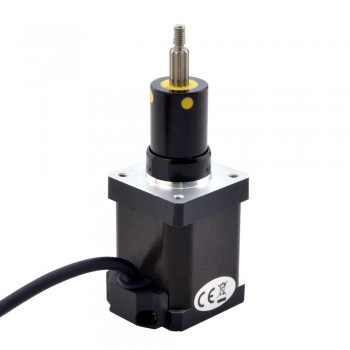

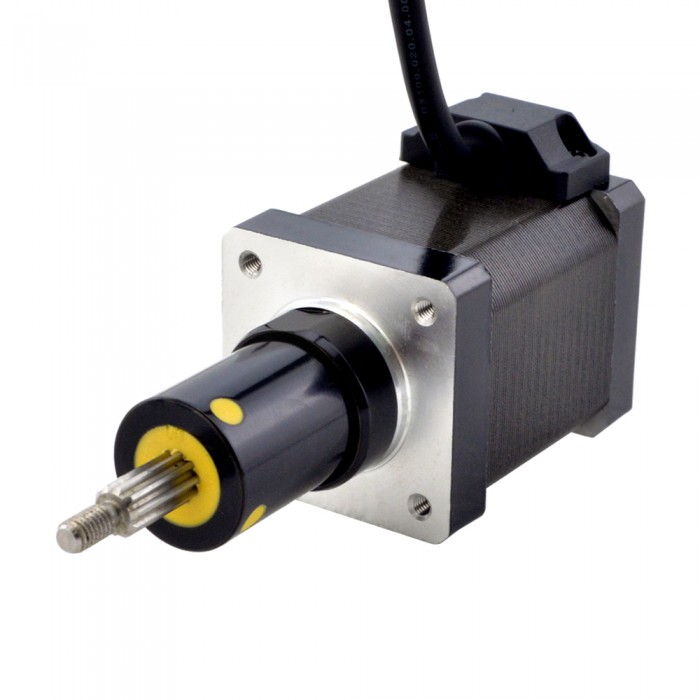

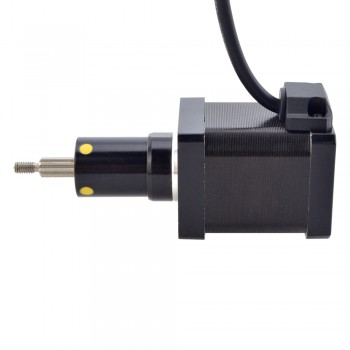

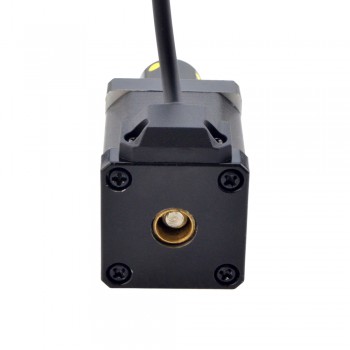

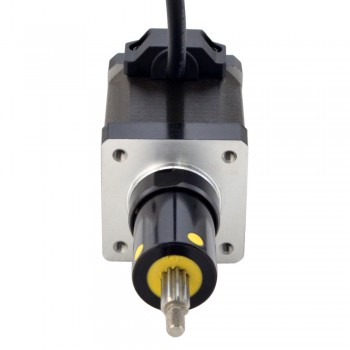

This model is a Nema 14 Captive ACME screw linear stepper motor with a 47mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a 6.35mm(0.25") diameter, 25.4mm(1") travel distance, the linear travel is 2.54mm(0.1") per revolution.



Electrical Specification

Manufacturer Part Number: 14C19S1504GF5-025RS

Motor Type: Captive

Step Angle: 1.8°

Holding Torque: 0.2Nm(28.328oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 1.5ohms

Inductance: 2mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 47mm

Travel Distance: 25.4mm(1")

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 2.54mm(0.1")

Number of Leads: 4

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Lead Screw End Machining

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1



Anti-Backlash Nut



OYOSTEPPER provides anti-backlash nut for external lead screw linear actuator (except Size 34) and non-captive lead screw linear actuator (except size 24 and 34).

There should be a nominal backlash between lead screw and OYOSTEPPER standard plastic nut after millions of cycles. OYOSTEPPER guarantees few millions of cycles but physical backlash can be increased. To reduce or eliminate backlash, OYOSTEPPER provides spring pressure structure of anti-backlash nut.

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1



Encoders

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1



According to application requirements, customer can easily choose encoders via index output or non-index type and thru output method as single ended or differential output.

Also various resolution can be chosen freely for easier and precise positioning.

All OYOSTEPPER standard encoders are optical and incremental. When you choose encoder, please carefully look into options especially size, resolution, index and output method.



Brakes



Especially Vertical applications or holding motors from sudden power-off status, OYOSTEPPER standard power-off brakes for NEMA14, 17, 23, 24 and 34 sizes will be helpful to reduce concern of customers.

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1



Wiring, Cabling and Connectors

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1



Flying wire leads or connectors

Twisting wire leads

Heat shrink or expandable tubing

Cable housings



Teflon Coated Screw



If customer's applications require greaseless screw and nut combination, OYOSTEPPER offers teflon coated lead screw of stepper linear actuator.

Teflon coated lead screw stepper linear actuator enables it's longer life cycle and better thrust force generation against conventional SUS lead screw.

Teflon coating can be applied in the whole range of lead screw options in OYOSTEPPER and all types of linear actuators such as External, Non-Captive, and Captive.

In addition, Anti-backlash nut also can be combined with teflon coated screw too.

NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.8 Deg 1.5A 0.2Nm 47mm Stack Lead Revolution 2.54mm(0.1

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 14 Captive Acme Linear Stepping Motor Bipolar 1.5A 1.8 Deg 0.2Nm 47mm Stack Lead Revolution 6.35mm(0.25") Travel 50.8mm
Next: Leadshine CL2C-RS57 0-7A 20-50VDC Nema 23 RS485 Closed Loop Stepper Motor Driver
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2
Phase Resistance(ohm) 1.5
Rated Current (A) 1.5
Step Angle(deg.) 1.8
Linear Motor Type Captive
Physical Specification
Body Length(mm) 47
Frame Size(mm) Nema 14 (35 x 35)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
No. of Lead 4
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
IP Rating 40
