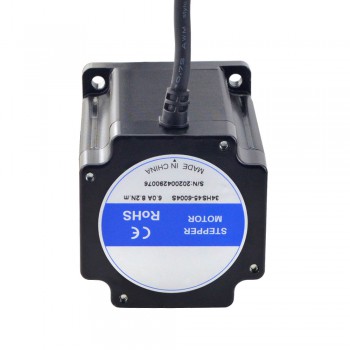

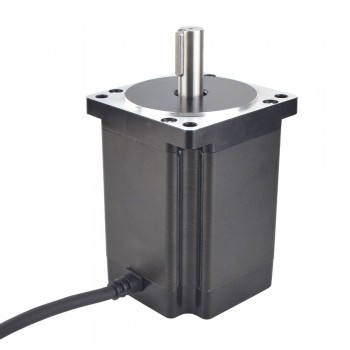

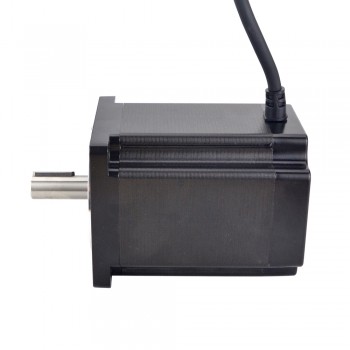

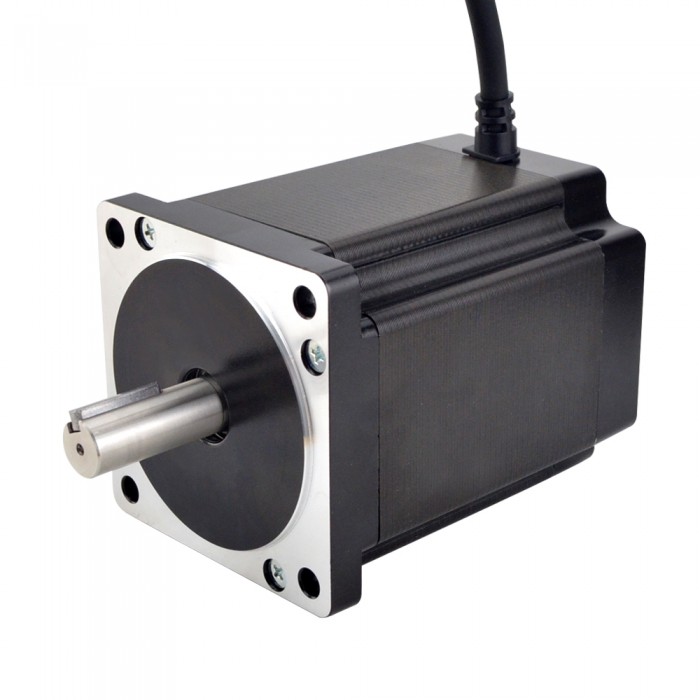

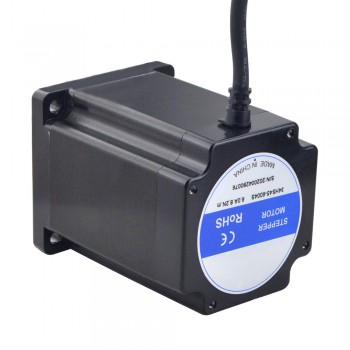

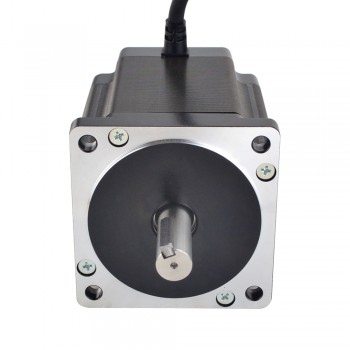

S Series Nema 34 Stepper Motor Bipolar 1.8 Deg 8.2 Nm(1161.45oz.in) 2 Phase 6.0A 86x86x114mm 4 Wires

S Series Nema 34 Stepper Motor Bipolar 1.8 Deg 8.2 Nm(1161.45oz.in) 2 Phase 6.0A 86x86x114mm 4 Wires
NO.:34HS45-6004S
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$51.18
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $48.62 5%
10 $47.60 7%
50 $46.06 10%
100 $44.53 13%
Add To Cart

S Series Nema 34 Stepper Motor Bipolar 1.8deg 8.2 Nm(1161.45oz.in) 6.0A 86x86x114mm 4 Wires



Electrical Specification

Manufacturer Part Number: 34HS45-6004S

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 8.2 Nm(849.84oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.51 ohms± 10%

Inductance: 5.1 mH ± 20%(1KHz)



Physical Specification

Frame Size: 86 x 86 mm

Body Length: 114 mm

Shaft Diameter: Φ14 mm

Shaft Length: 37 mm

Keyway Shaft Length: 25 mm

Number of Leads: 4

Lead Length: 500 mm

Weight: 3.7 kg



Connection

A+ A- B+ B-
BLK GRN RED BLU



Resources

Full Datasheet:34HS45-6004S.pdf

Torque Curve:34HS45-6004S_Torque_Curve.pdf

34HS45-6004S.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: S Series Nema 34 Step Motor Bipolar 2 Phase 1.8 Degree 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm 4 Wires
Next: S Series Nema 34 Stepper Motor 4 Wires Bipolar 1.8 Deg 12.0 Nm(1699.68oz.in) 2 Phase 6.0A 86x86x151.5mm
Electrical Specification
Holding Torque (Ncm) 820
Inductance(mH) 5.1
Phase Resistance(ohm) 0.51
Rated Current (A) 6.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 114
Frame Size(mm) Nema 34 (86 x 86)
Lead Length(mm) 500
No. of Lead 4
Shaft Diameter(mm) 14
Shaft Length(mm) 37
Single Shaft/Dual Shaft Single Shaft
Weight(g) 3700
Output Shaft Type Keyway
IP Rating 40
