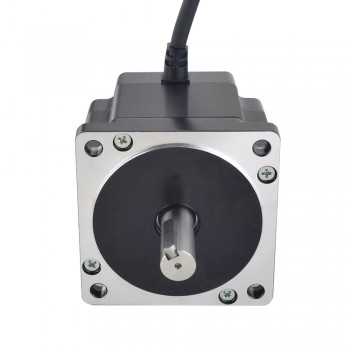

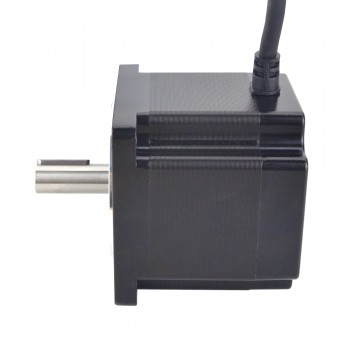

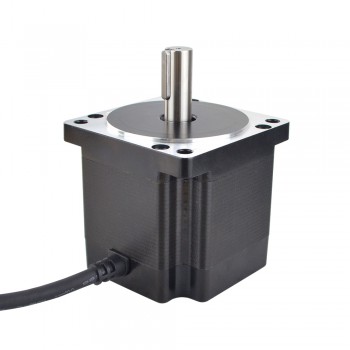

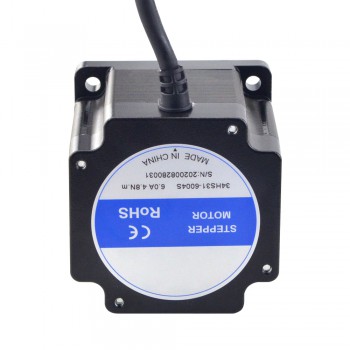

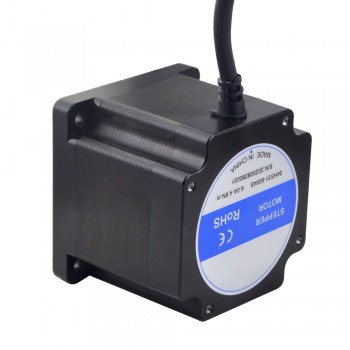

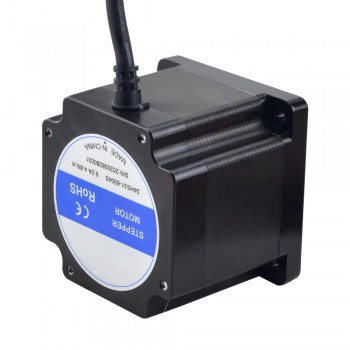

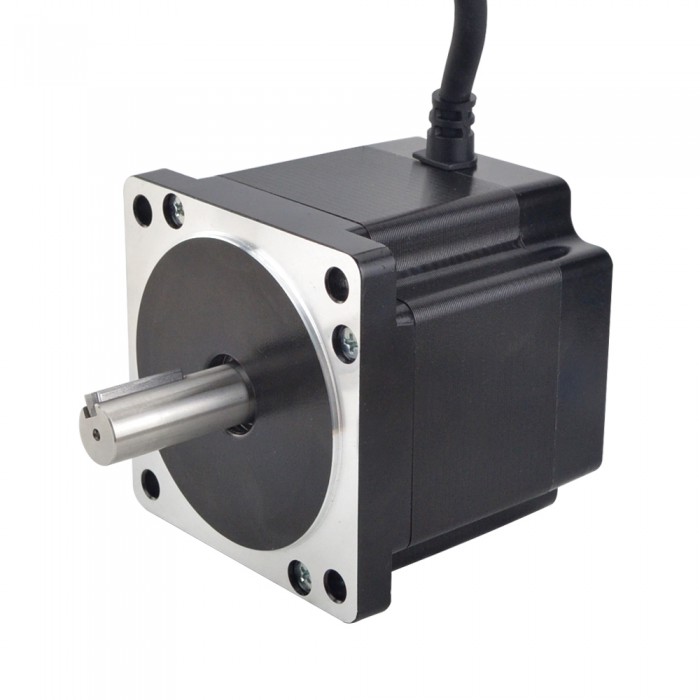

S Series Nema 34 Step Motor Bipolar 2 Phase 1.8 Degree 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm 4 Wires

NO.:34HS31-6004S
Post a review

Special Offer in September 2023:

$10 Off Over $150
$20 Off Over $300
$35 Off Over $500
$55 Off Over $800
$70 Off Over $1000
$100 Off Over $1500
Enjoy Discount at Checkout!
Valid Till September 28th, 2023
Note:No coupon code needed, please place order directly!

Our Price:$37.49

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
5	$35.62	5%
10	$34.87	7%
50	$33.74	10%
100	$32.62	13%

Description Specification Custom Options Review

S Series Nema 34 Stepper Motor Bipolar 1.8deg 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm 4 Wires

Electrical Specification

Manufacturer Part Number: 34HS31-6004S

Number of phase: 2

Step Angle: 1.8 deg

Holding Torque: 4.8 Nm(679.87oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.42 ohms± 10%

Inductance: 3.5 mH ± 20%(1KHz)

Physical Specification

Frame Size: 86 x 86 mm

Body Length: 80 mm

Shaft Diameter: Φ14 mm

Shaft Length: 37 mm

Keyway Shaft Length: 25 mm

Number of Leads: 4

Lead Length: 500 mm

Weight: 2.3 kg

Connection

A+	A-	B+	B-
BLK	GRN	RED	BLU

Resources

Full Datasheet:34HS31-6004S.pdf
Torque Curve:34HS31-6004S_Torque_Curve.pdf
34HS31-6004S.STEP

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: E Series Nema 34 Stepper Motor Bipolar 2 Phase 1.8 Degree 4.8 Nm(679.87oz.in) 6.0A 86x86x80mm
Next: S Series Nema 34 Stepper Motor Bipolar 1.8 Deg 8.2 Nm(1161.45oz.in) 2 Phase 6.0A 86x86x114mm 4 Wires

Electrical Specification
Holding Torque (Ncm)	480
Holding Torque (oz.in)	679.87
Inductance(mH)	3.5
Phase Resistance(ohm)	0.42
Rated Current (A)	6.0
Step Angle(deg.)	1.8
Physical Specification
Body Length(mm)	80
Frame Size(mm)	Nema 34 (86 x 86)
Lead Length(mm)	500
No. of Lead	4
Shaft Diameter(mm)	14
Shaft Length(mm)	37
Single Shaft/Dual Shaft	Single Shaft
Weight(g)	2300
Output Shaft Type	Keyway
IP Rating	40
