NEMA 14 External Acme Linear Stepper Motor Actuator 1.5A 1.8 Deg 0.14Nm Lead Revolution 2.54mm(0.1") Lead Screw 150mm

NEMA 14 External Acme Linear Stepper Motor Actuator 1.5A 1.8 Deg 0.14Nm Lead Revolution 2.54mm(0.1") Lead Screw 150mm
NO.:14E13S1504GF5-150RS
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$40.42
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $38.40 5%
10 $37.59 7%
50 $36.38 10%
100 $35.17 13%
Add To Cart

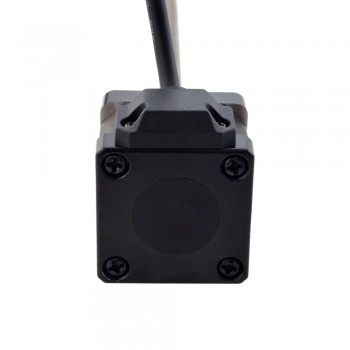

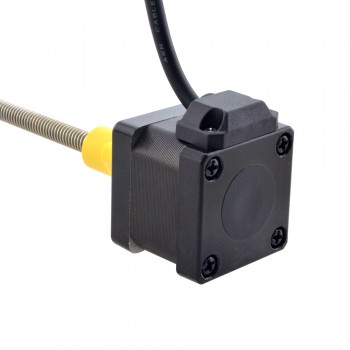

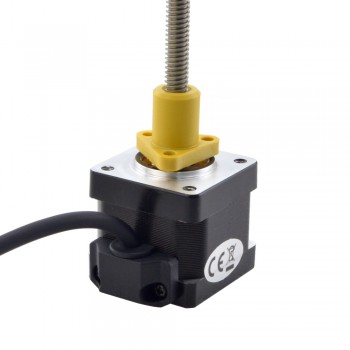

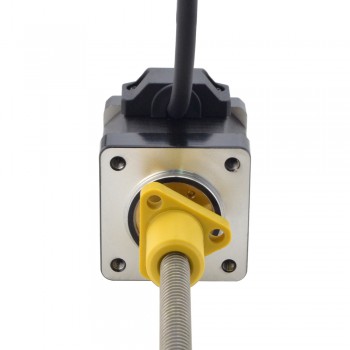

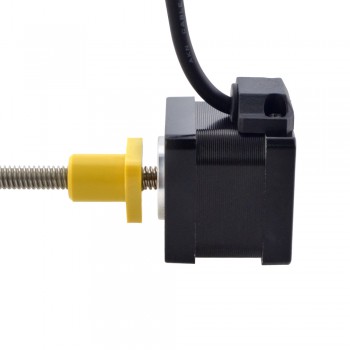

NEMA 14 External Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 150mm

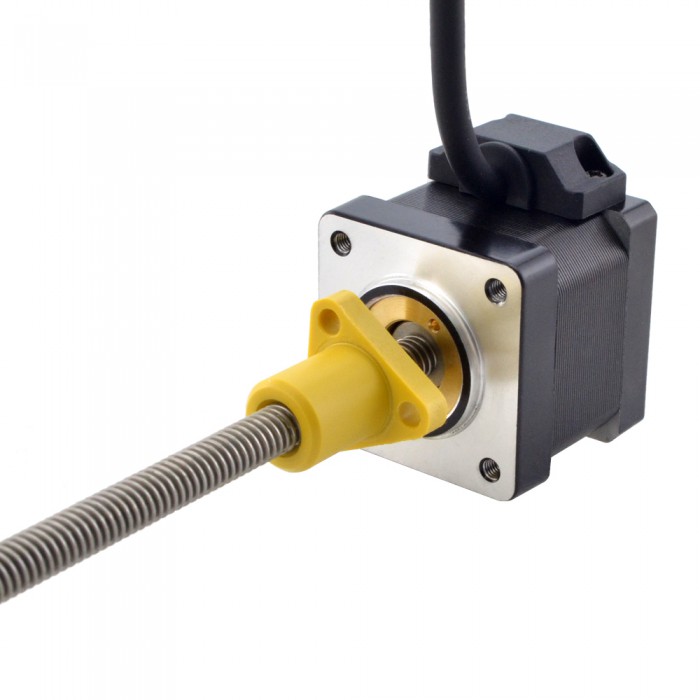

This model is a Nema 14 ACME screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution.



Electrical Specification

Manufacturer Part Number: 14E13S1504GF5-150RS

Motor Type: External(ACME)

Step Angle: 1.8°

Holding Torque: 0.14Nm(19.82oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 0.95ohms

Inductance: 1mH±20%(1KHz)



Physical Specification

Frame Size: 35 x 35mm

Body Length: 34mm

Lead Screw Length: 150mm(5.9055")

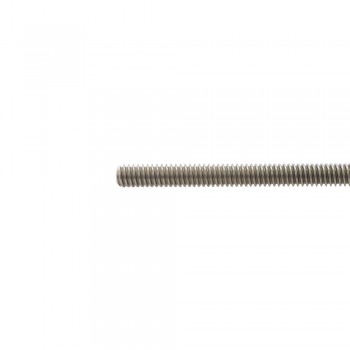

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.0127mm(0.0005")

Lead Travel/Revolution: 2.54mm(0.1")

Number of Leads: 4

Number of Thread Starts: 2

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 14 Captive Acme Linear Stepper Motor Actuator Bipolar 1.5A 1.8° 0.2Nm 47mm Stack Lead Revolution 2.54mm
Next: NEMA 14 External Acme Linear Stepper Motor Actuator 1.8 Deg 0.2Nm 1.5A 47mm Stack Lead Revolution 1.27mm(0.05") Lead Screw 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 1
Phase Resistance(ohm) 0.95
Rated Current (A) 1.5
Step Angle(deg.) 1.8
Linear Motor Type External(Acme)
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 11 (28 x 28)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 150
No. of Lead 4
Lead Travel/Revolution(mm) 2.54
Lead Travel/Step(mm) 0.0127
IP Rating 40
