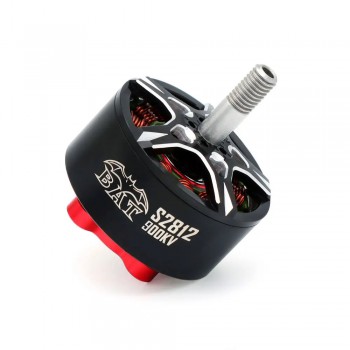

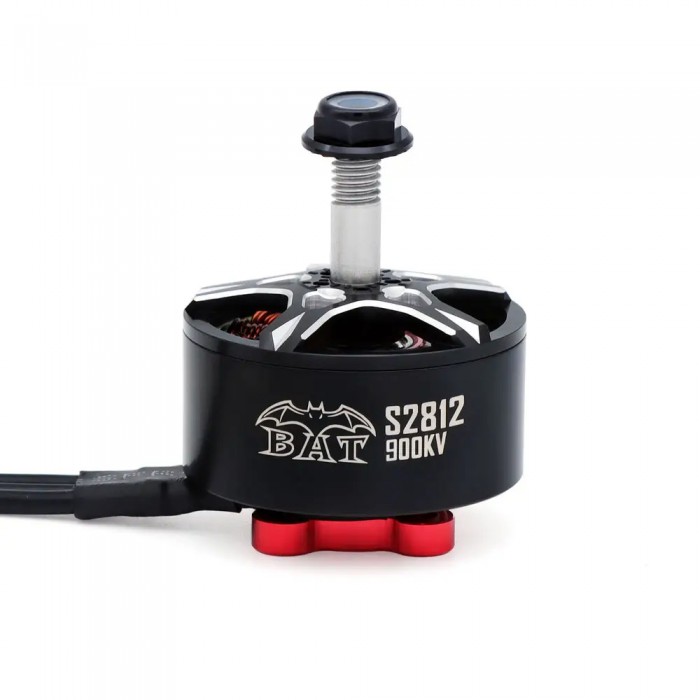

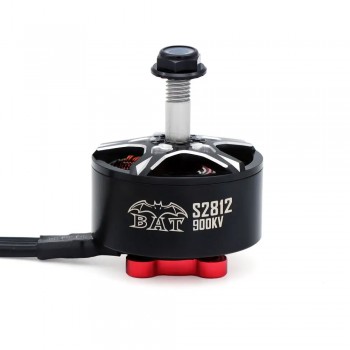

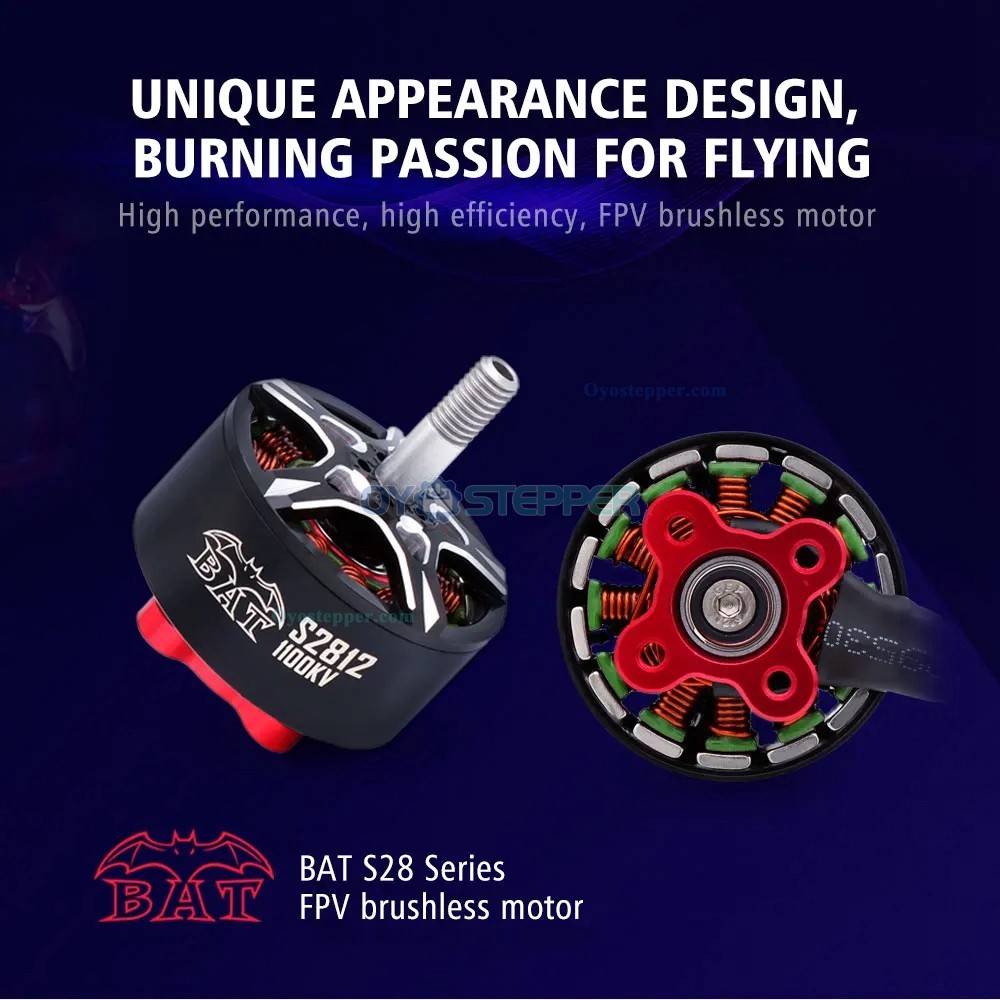

SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone
SURPASS Hobby S2812 900KV /1100KV Brushless Drone Motor (compatible HQ9x5x3 Prop) for RC FPV Racing Drone
Features:
Waterproof construction
High temperature resistance: 220°C
14 poles, 12 slots

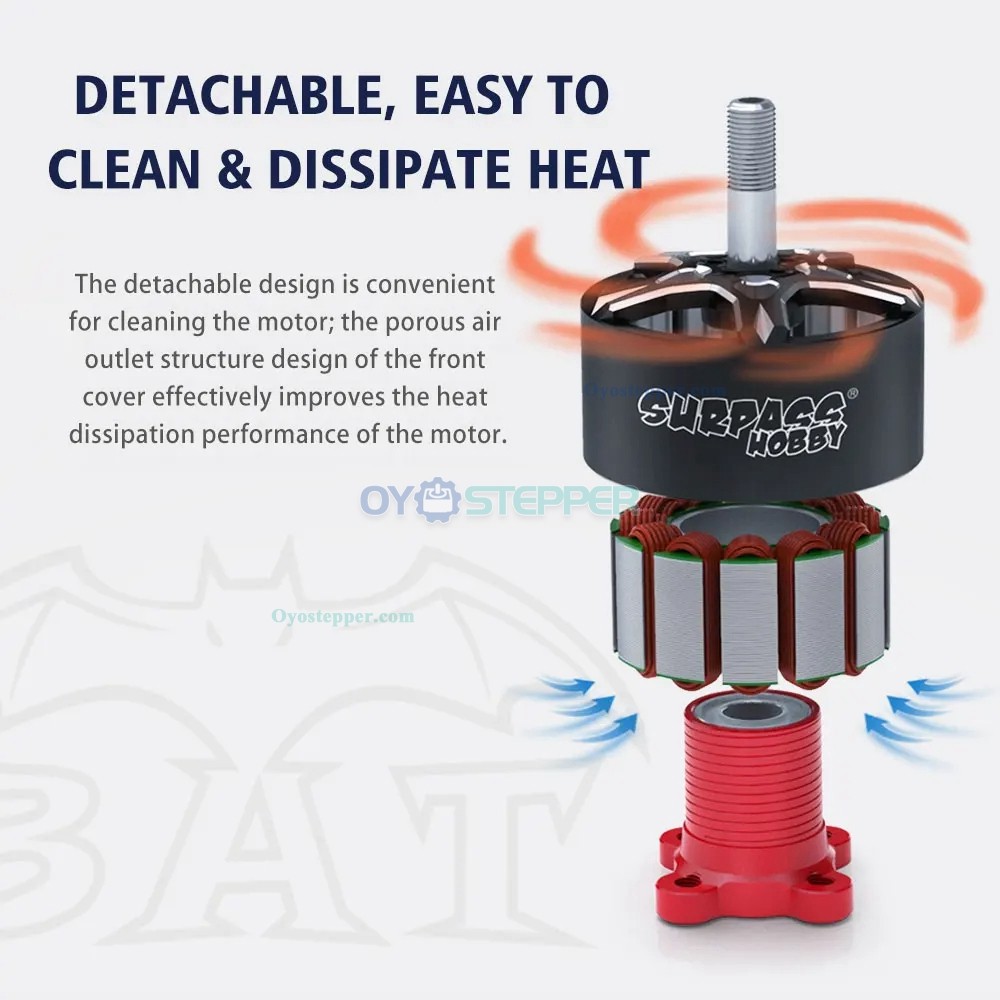

CNC machined 6061-T6 aluminum cooling fins
Secondary oxidation treatment
High purity copper windings
ABEC5 bearings
3.5mm gold plated connector included

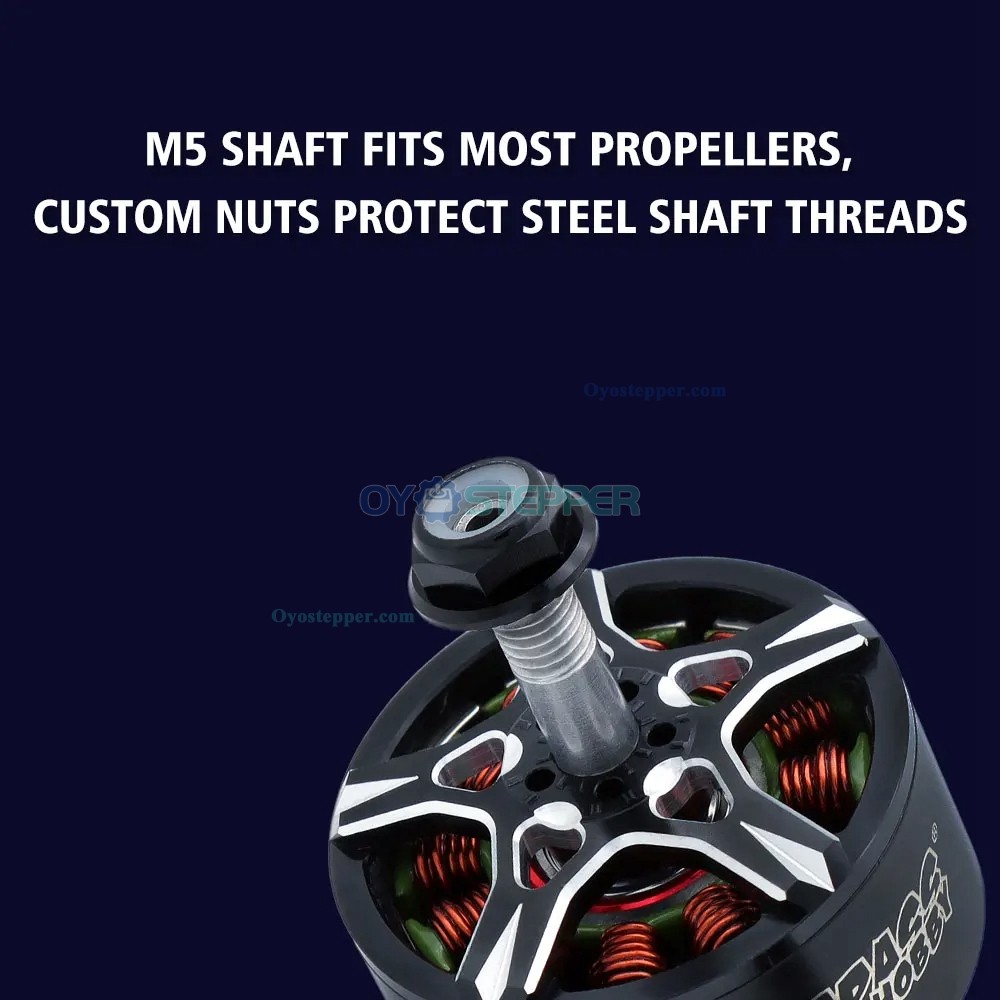

4mm shaft included

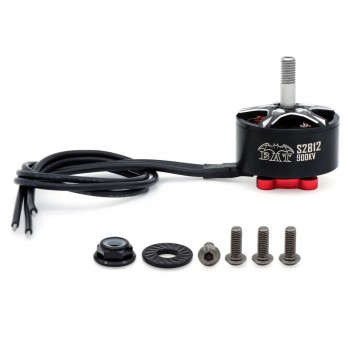

Mounting screws included

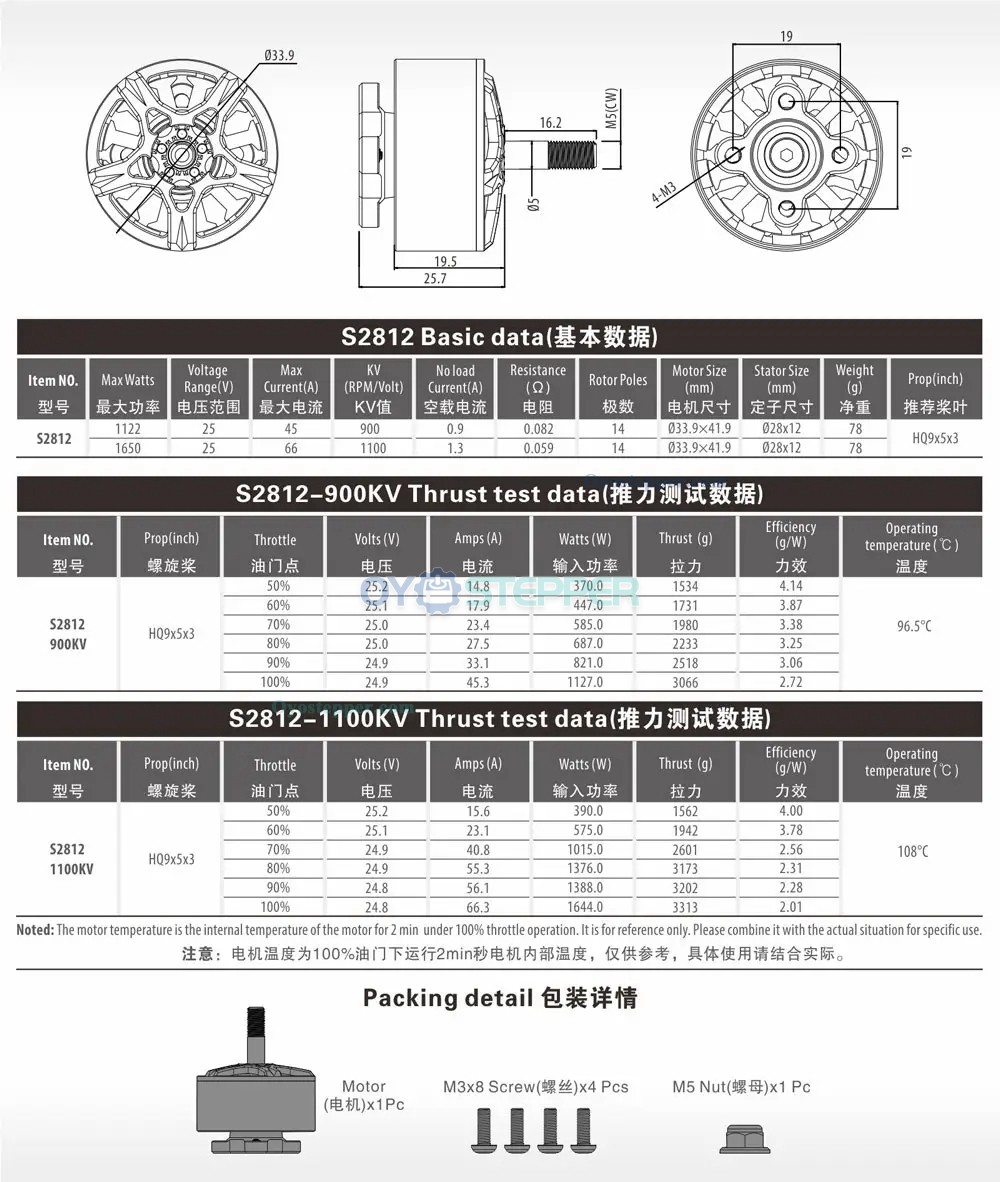

Specifications:
Brand: Surpass Hobby
Model: S2812
Motor type: FPV motor
Rotor poles: 14
KV options: 900KV / 1100KV
No-load current: 0.9–1.3A
Bearings: NMB
Motor dimensions: 33.9 x 41.9mm
Net weight: 78g

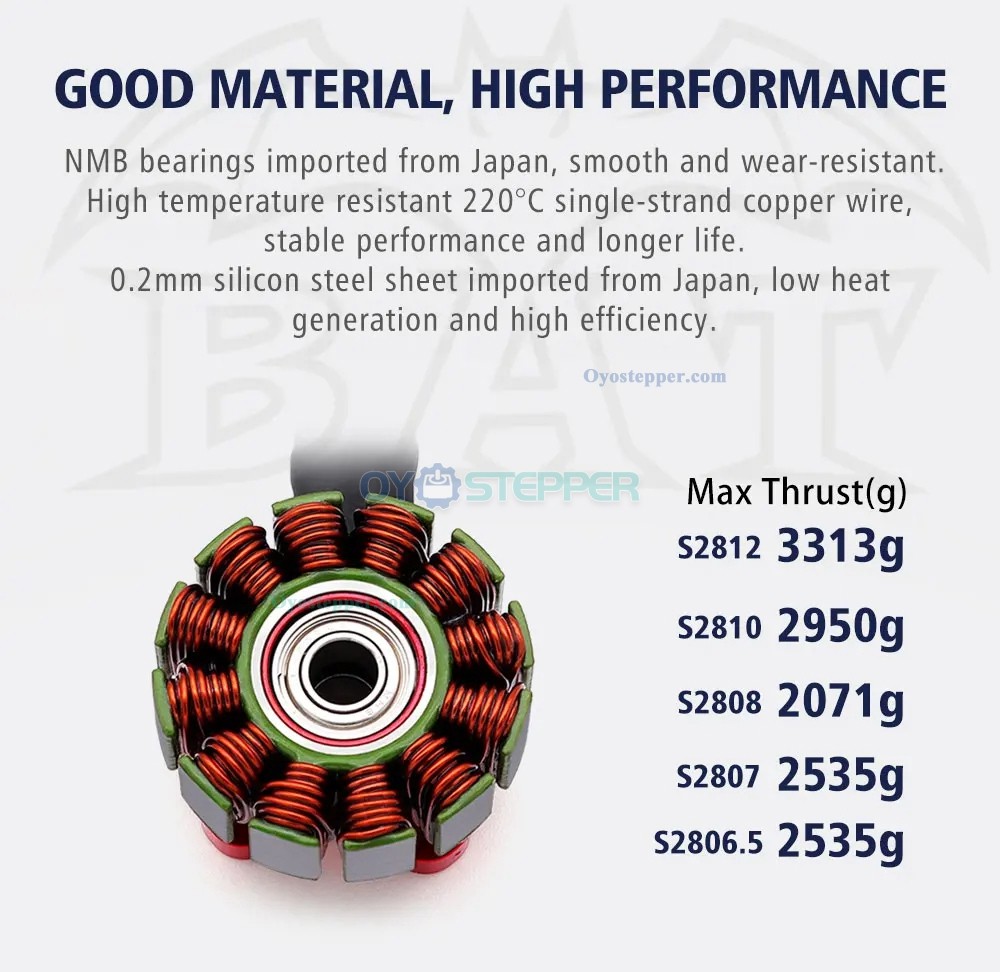

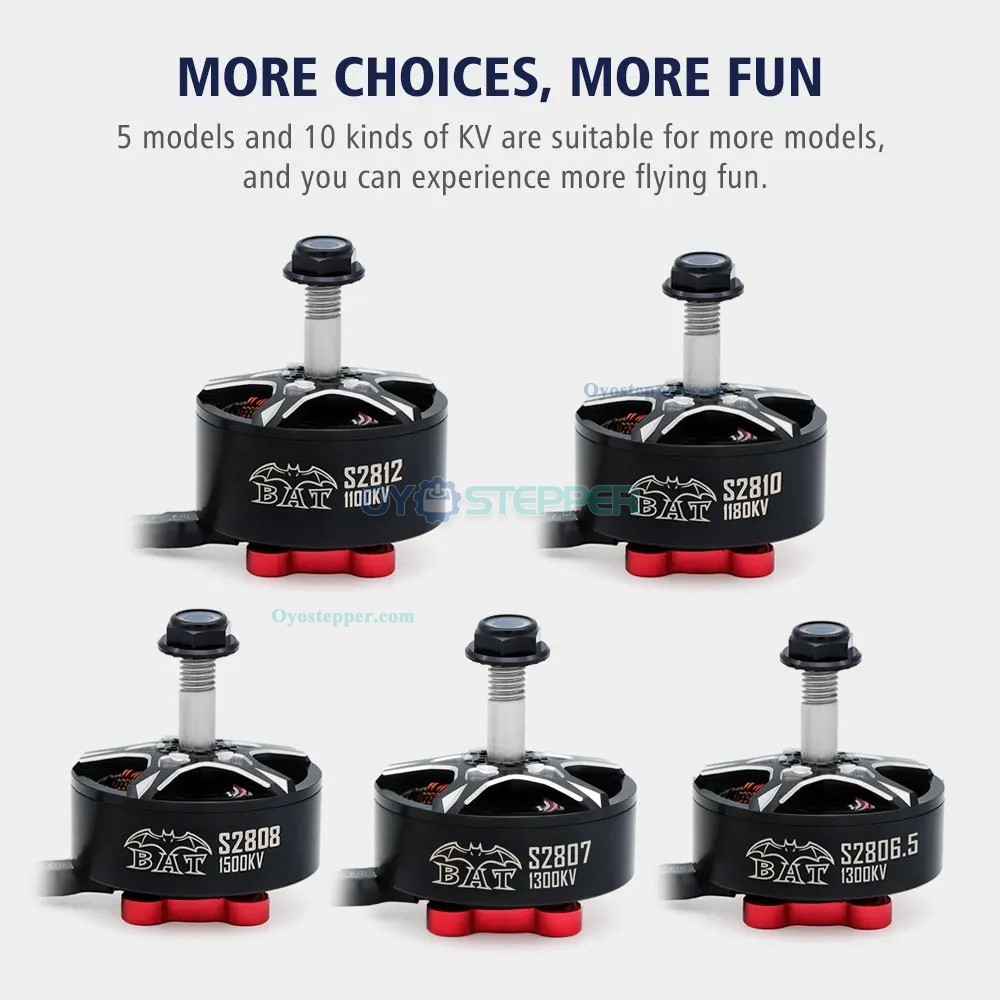

Maximum Thrust:
S2806.5: 2535g
S2807: 2535g
S2808: 2071g
S2810: 2950g
S2812: 3313g
.jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
(2).jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
.jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
.jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
.jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
.jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
.jpg "SURPASS Hobby S2812 900KV /1100KV Brushless DC Motor for RC FPV Racing Drone")
| BLDC Motor Specification | |
|---|---|
| No. of Poles | 14 |
| Rated Voltage(V) | 25 |
| Physical Specification | |
| Body Length(mm) | 41.9 |
| Shaft Type | compatible HQ9x5x3 Prop |
| Weight(g) | 78 |
| Product Type | FPV Motor |
| Product Series | S2812 |
