NEMA 14 External Acme Linear Stepper Motor 1.5A 47mm Stack Screw Lead 12.7mm(0.5") Lead Length 150mm

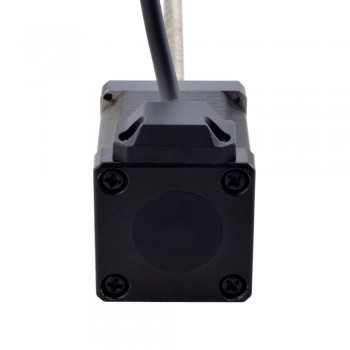

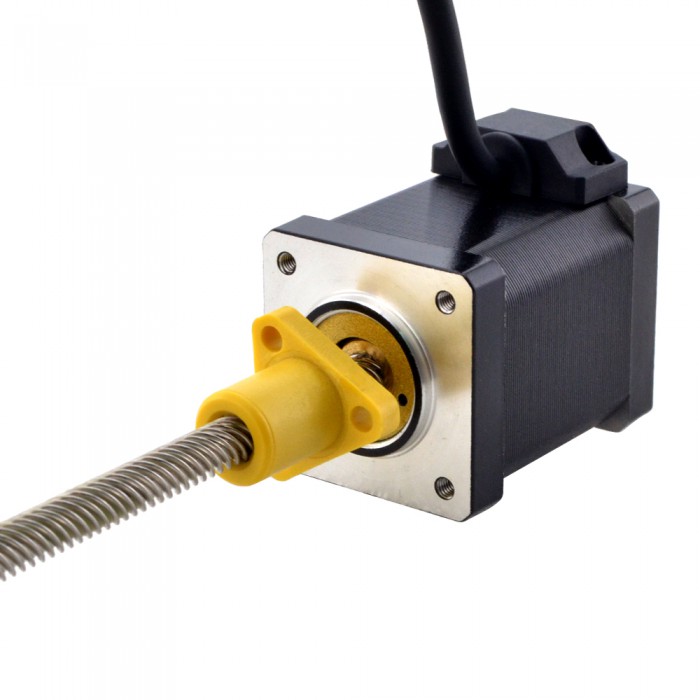

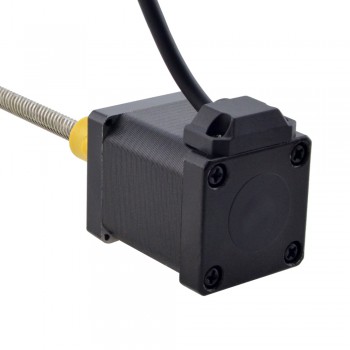

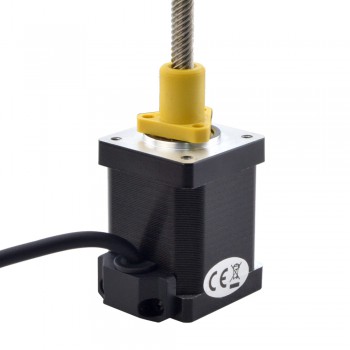

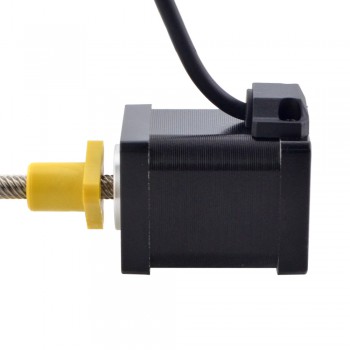

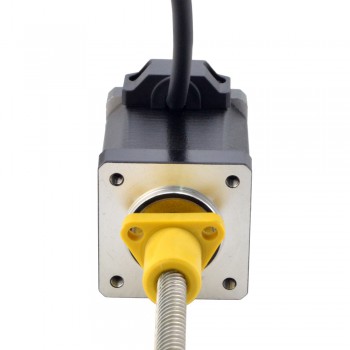

This model is a Nema 14 ACME screw linear stepper motor with a 47mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 150mm(5.9055") ACME screw length and a POM screw nut, the linear travel is 12.7mm(0.5") per revolution.
Electrical Specification
Manufacturer Part Number: 14E19S1504WF5-150RS
Motor Type: External(ACME)
Step Angle: 1.8°
Holding Torque: 0.2Nm(28.32oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 1.6ohms
Inductance: 2.3mH±20%(1KHz)
Physical Specification
Frame Size: 35 x 35mm
Body Length: 47mm
Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.0635mm(0.0025")
Lead Travel/Revolution: 12.7mm(0.5")
Number of Leads: 4
Number of Thread Starts: 8
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 2.3 |
| Phase Resistance(ohm) | 1.6 |
| Rated Current (A) | 1.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Acme) |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | Nema 11 (28 x 28) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 12.7 |
| Lead Travel/Step(mm) | 0.0635 |
| IP Rating | 40 |
