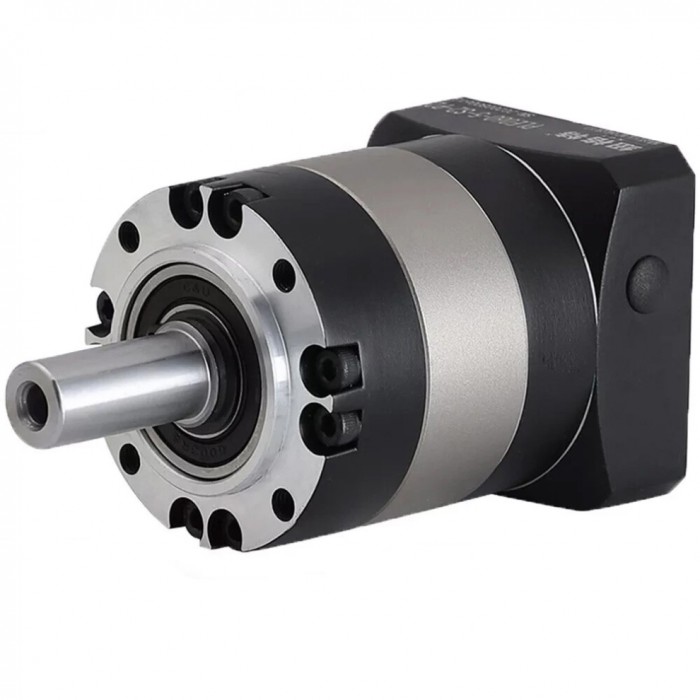

PLE042 Round Planetary Gearbox Reducer for NEMA17 42mm Stepper Motor / 40mm Servo Motor 50W 100W
PLE042 Round Planetary Gearbox Reducer for NEMA17 42mm Stepper motor / 40mm Servo Motor 50W 100W
It is compatible with 15mm output shafts and can be used with NEMA17 42mm stepper motors and 50W-100W 40mm AC servo motors. This gearbox is used for automation, home, office, and consumer electronics applications.
Applications:
It can be used in automation, robotics, printing, textile machines, packaging, machine tools, food processing, agriculture, and handling systems.
Specifications:

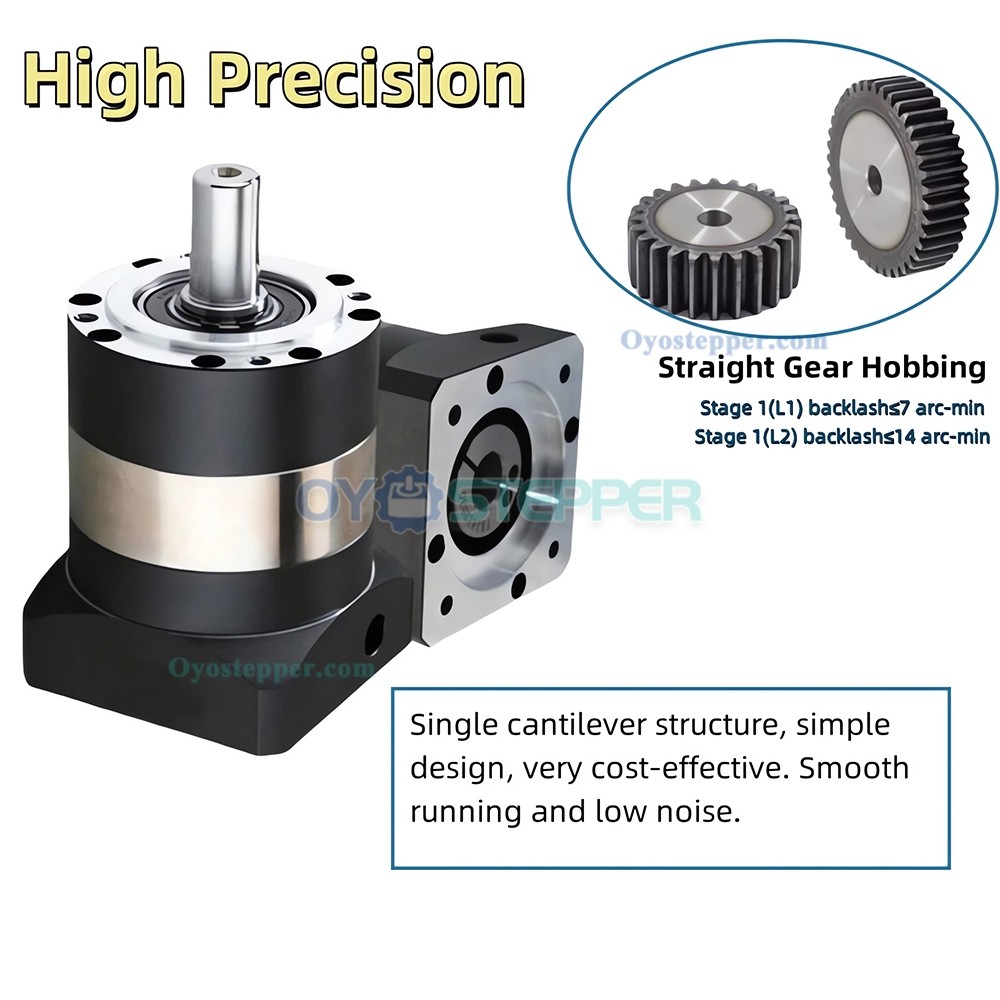

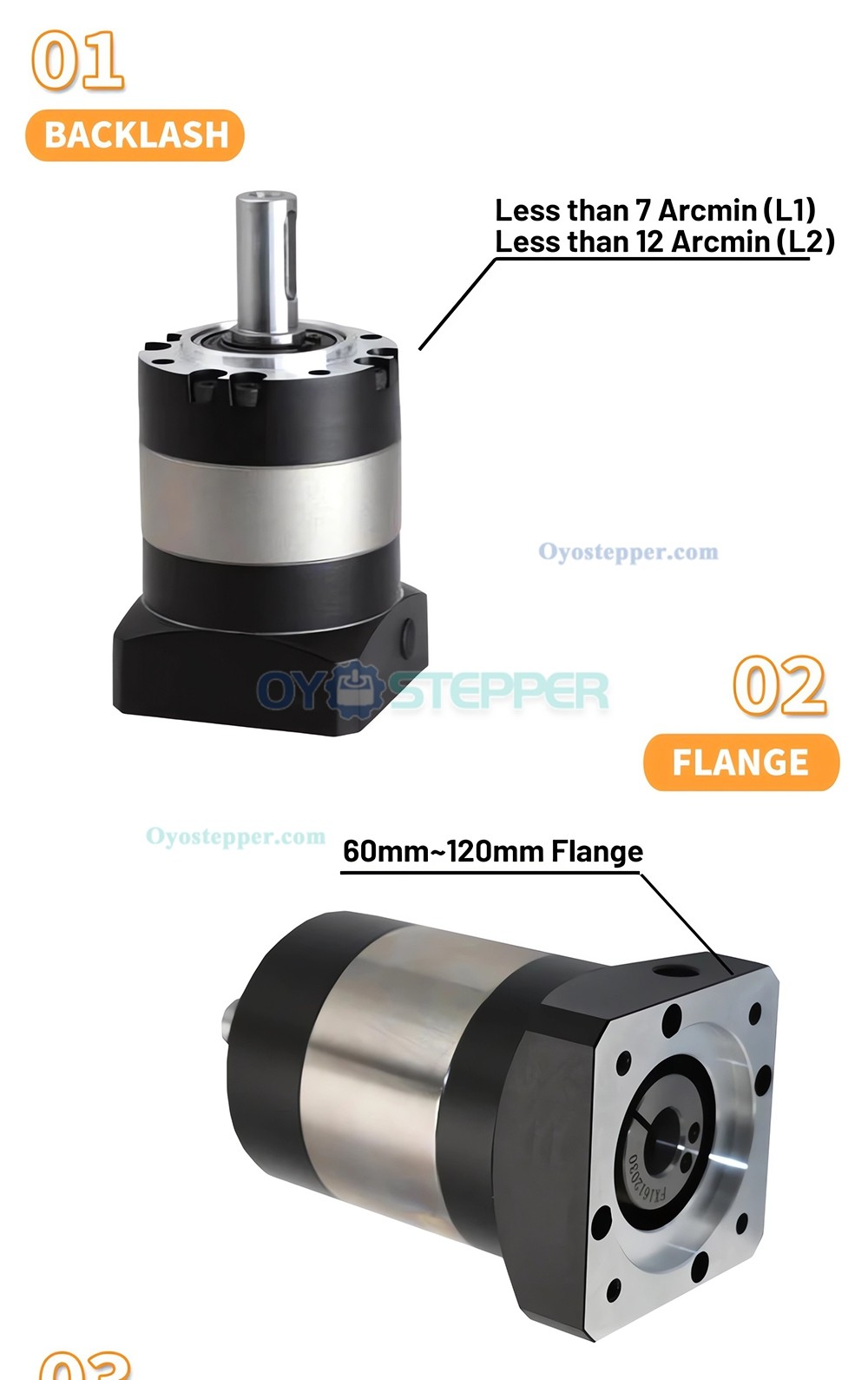

Backlash: ≤7/12 arcmin
Nominal ratios: 4:1, 5:1, 7:1, 10:1, 20:1, 25:1, 35:1, 40:1, 50:1, 70:1, 100:1
Rated output torque: 16Nm
Maximum input speed: 8,000 RPM
Operating temperature range: -10°C to +90°C
Torsional stiffness: 0.7 Nm/arcmin
Noise level: ≤55 dB
Protection: IP54
Package includes:
1x Planetary reducer
1x Key
4x Installation screws
.jpg "PLE042 Round Planetary Gearbox Reducer for NEMA17 42mm Stepper Motor / 40mm Servo Motor 50W 100W")

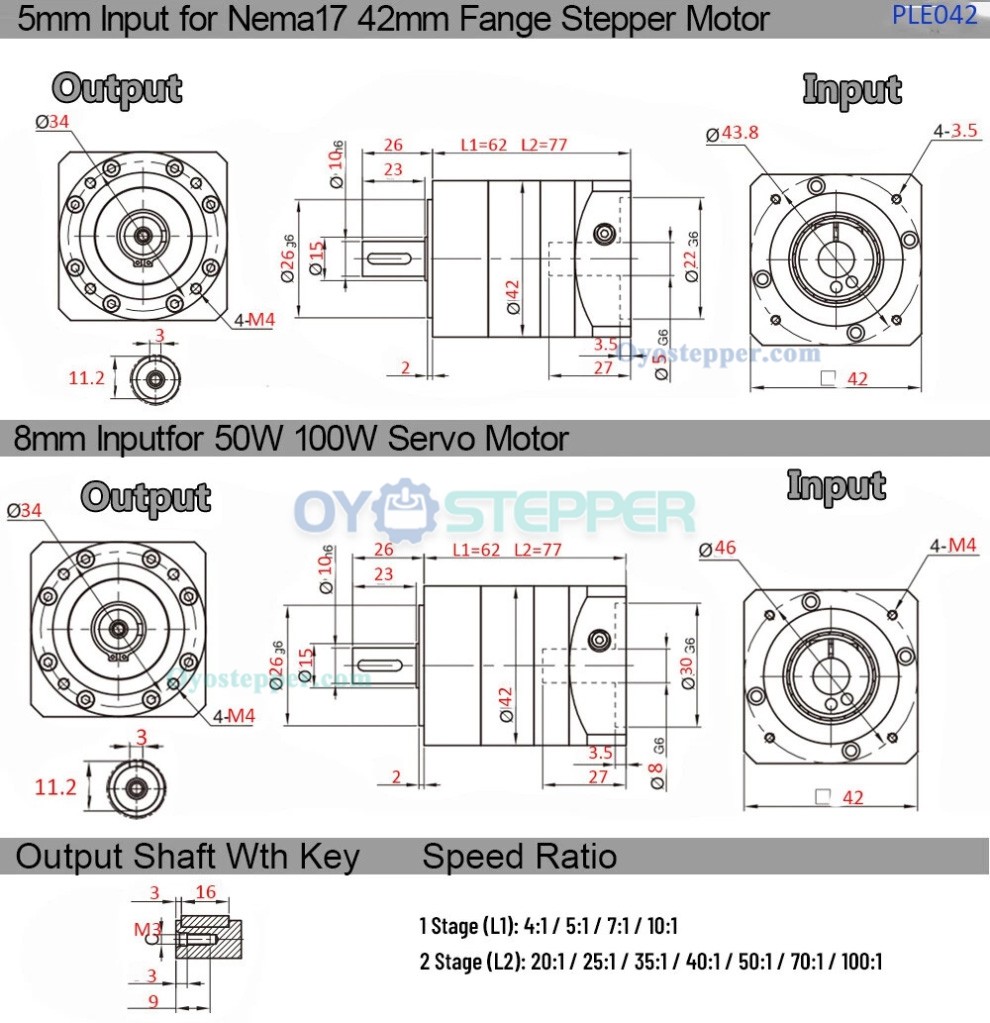

| Gearbox Specification | |
|---|---|

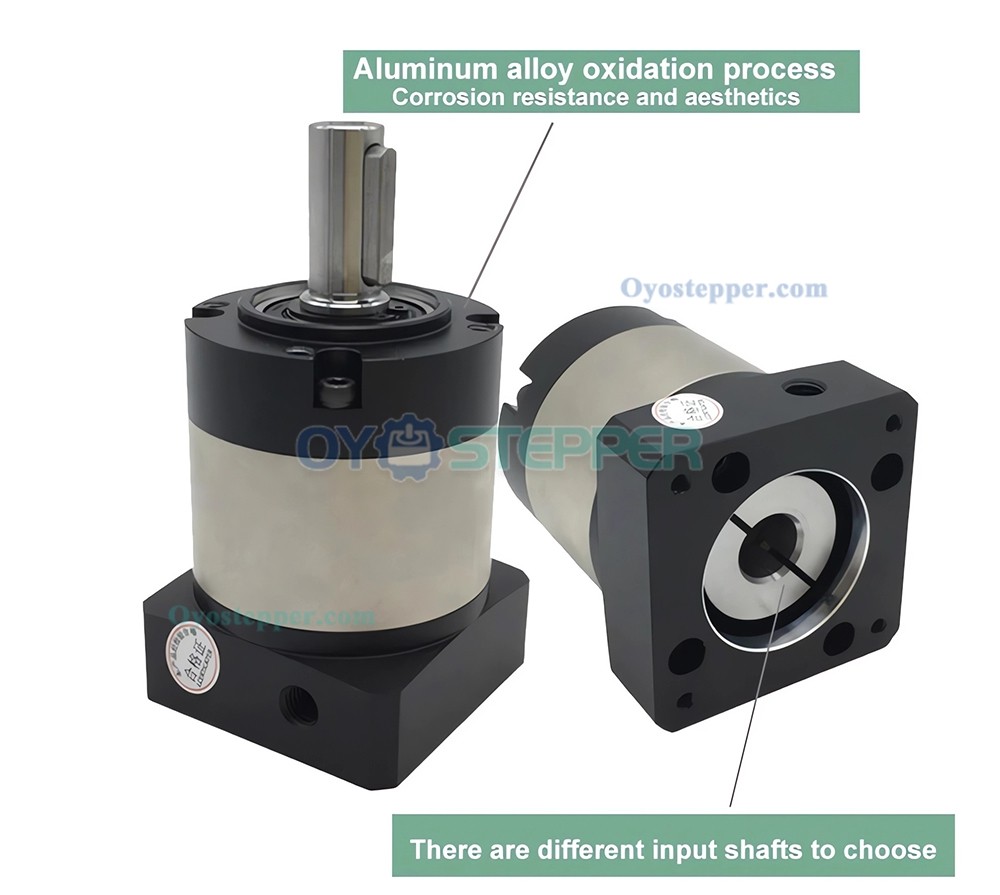

| Input Shaft Diameter(mm) | 5mm / 8mm |

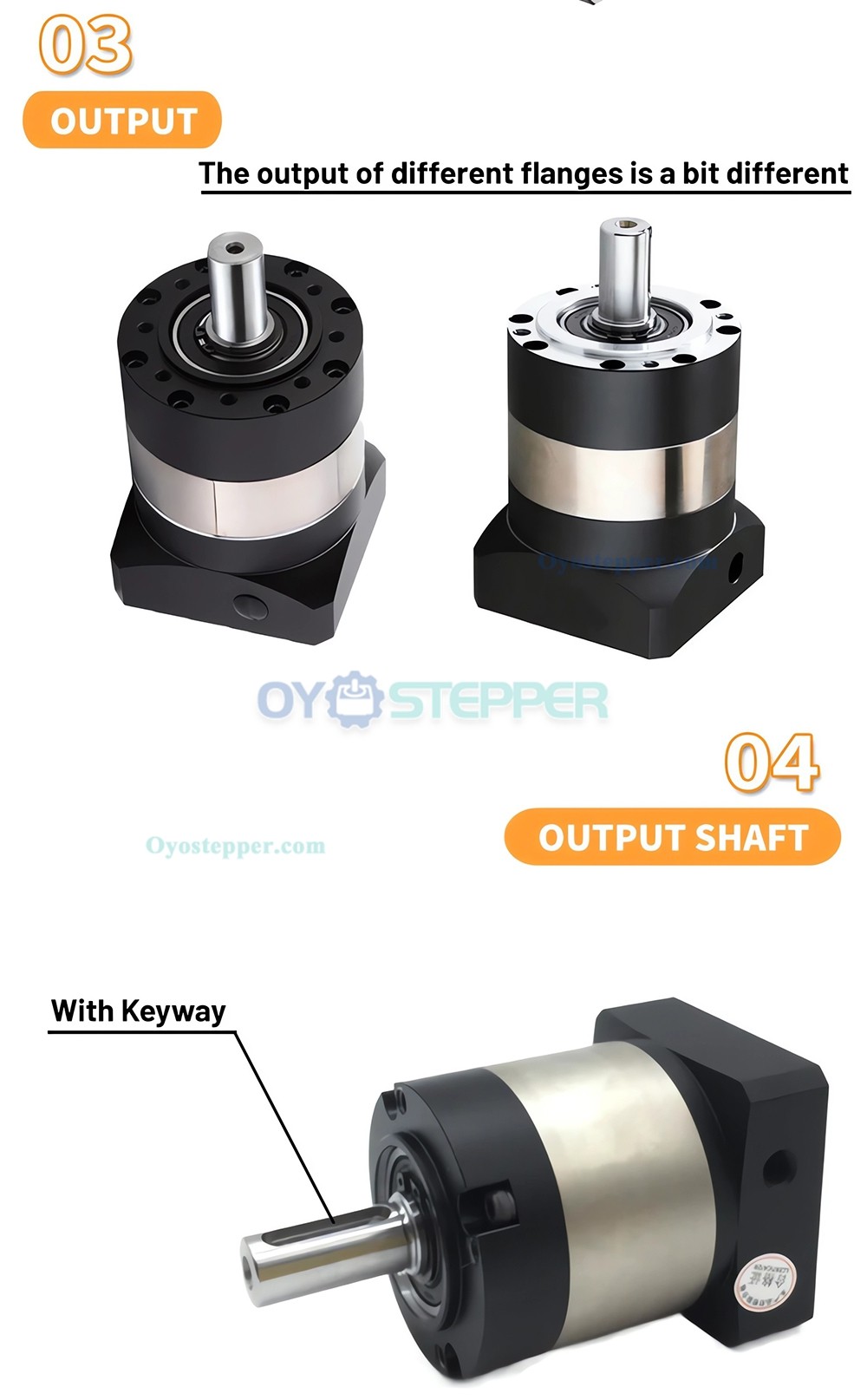

| Output Shaft Type | Keyway |
| Output Shaft Diameter(mm) | 15mm |
| Matching Motor Size | Nema 17 Stepper Motor / 40mm Servo Motor |
| Gear Ratio | 4:1 / 5:1 / 7:1 / 10:1 / 15:1 / 20:1 / 25:1 / 30:1 / 35:1 / 40:1 / 50:1 / 70:1 / 100:1 |
| Gearbox Type | Planetary Gearbox |
| Backlash at No-load(Max.°) | ≤7arcmin / ≤12arcmin |
