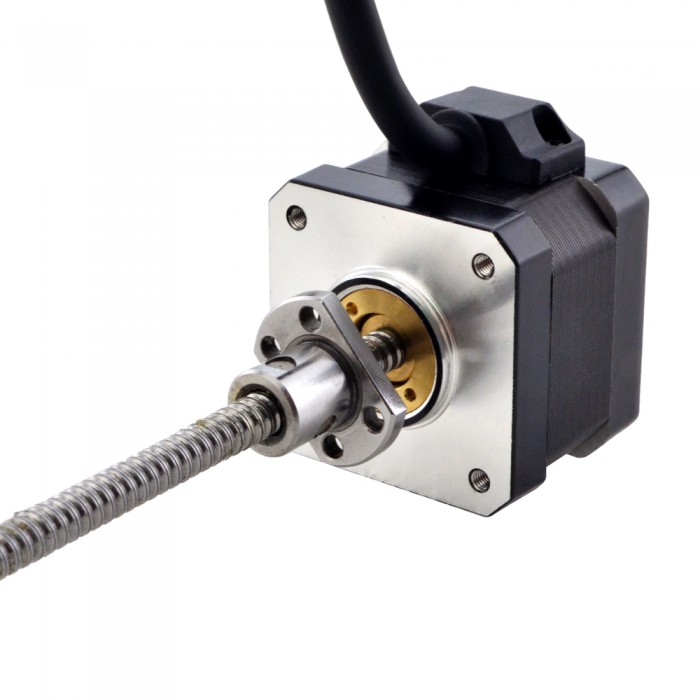

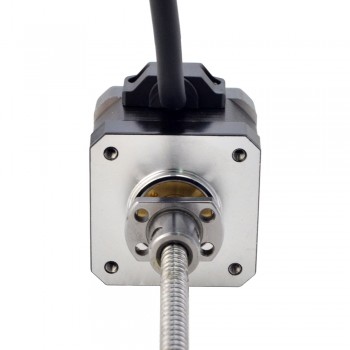

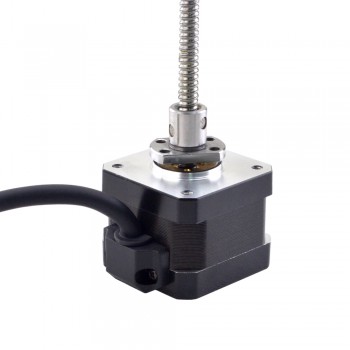

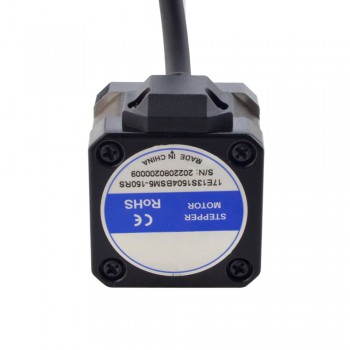

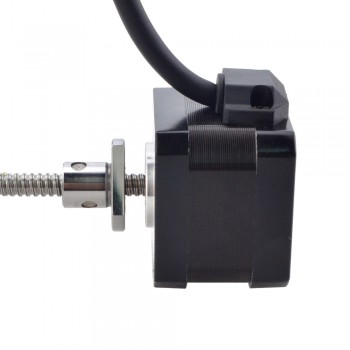

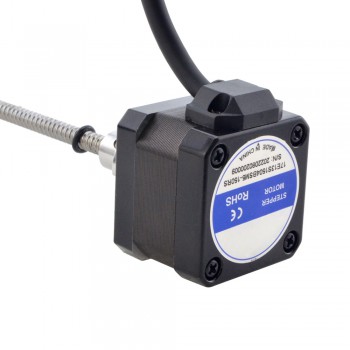

NEMA 17 External Ball Screw Hybrid Linear Stepper Motor 1.5A 1.8 Deg 0.3Nm Lead Revolution 1mm(0.03937") Lead Screw 150mm

NO.:17E13S1504BSM5-150RS
Post a review

Manuals and Documentation:
17E13S1504BSM5-150RS_Full_Datasheet.pdf

17E13S1504BSM5-150RS.STEP

Our Price:$126.32

Quantity:- +

Bulk Price:

Qty.Range(unit)	Price(unit)	Discount
2	$120.00	5%
5	$117.48	7%
10	$113.69	10%
50	$109.90	13%

Add To My Favorites

Description Specification Custom Options Review

NEMA 17 External Ball Screw Linear Stepper Motor 1.5A 34mm Stack Screw Lead 1mm(0.03937") Lead Length 150mm

This NEMA 17 ball screw linear stepper has a 34 mm body, 1.8° step, and 1.5 A. It features a 150 mm, 6 mm ball screw with steel nut (1 mm/rev).

Electrical Specification

Manufacturer Part Number: 17E13S1504BSM5-150RS

Motor Type: External (Ball Screw)

Step Angle: 1.8°

Holding Torque: 0.3Nm(42.48oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 1.8ohms

Inductance: 2.2mH±20%(1KHz)

Accuracy Grade: C7

Physical Specification

Frame Size: 42 x 42mm

Body Length: 34mm

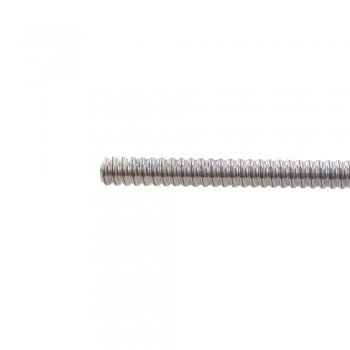

Lead Screw Length: 150mm(5.9055")

Lead Screw Diameter: Φ6mm(0.2362")

Lead/Step: 0.005mm(0.0001969")

Lead Travel/Revolution: 1mm(0.03937")

Number of Leads: 4

Lead Length: 500mm

Connection

A+	A-	B+	B-
Red	Red/White	Green	Green/White

Prev: NEMA 17 External Acme Linear Stepper Motor Actuator 2.5A 1.8 Deg 0.5Nm 48mm Stack Lead Revolution 6.35mm(0.25") Lead Screw 150mm
Next: NEMA 17 External Ball Screw Hybrid Linear Stepper Motor 2.5A 0.5Nm 48mm Stack Lead Revolution 1mm(0.03937") Lead Screw 150mm

Electrical Specification
Bipolar/Unipolar	Bipolar
Inductance(mH)	2.2
Phase Resistance(ohm)	1.8
Rated Current (A)	1.5
Step Angle(deg.)	1.8
Linear Motor Type	External(Ball Screw)
Physical Specification
Body Length(mm)	34
Frame Size(mm)	Nema 17 (42 x 42)
Lead Length(mm)	500
Lead Screw Diameter(mm)	6
Lead Screw Length(mm)	150
No. of Lead	4
Lead Travel/Revolution(mm)	1
Lead Travel/Step(mm)	0.005
IP Rating	40
