NEMA 17 External Ball Screw Hybrid Linear Stepper Motor 2.5A 0.5Nm 48mm Stack Lead Revolution 1mm(0.03937") Lead Screw 150mm
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till December 3th, 2024
- Note:No coupon code needed, please place order directly!
NEMA 17 External Ball Screw Linear Stepper Motor 2.5A 48mm Stack Screw Lead 1mm(0.03937") Lead Length 150mm

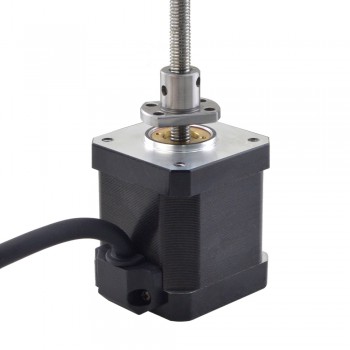

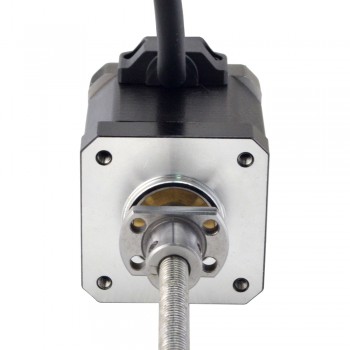

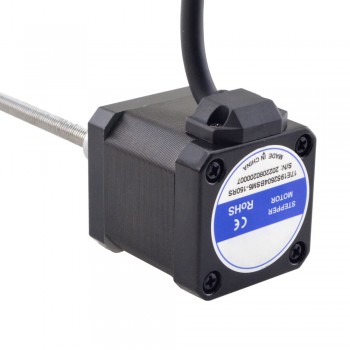

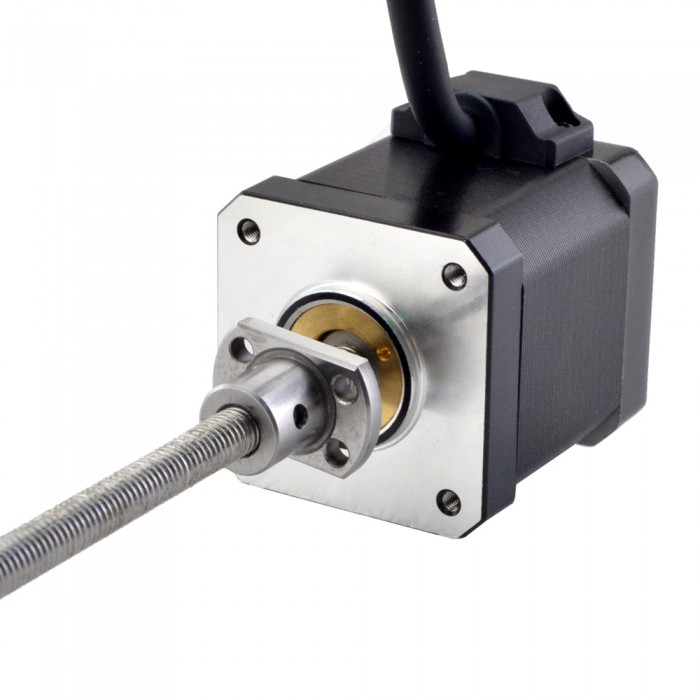

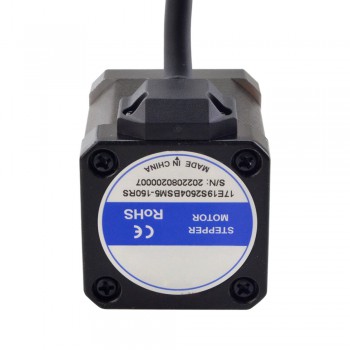

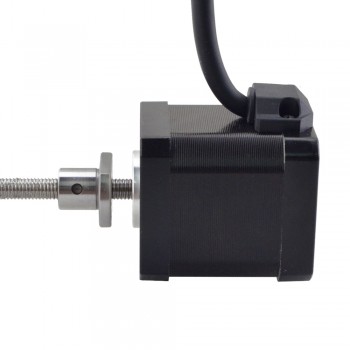

This model is a Nema 17 ball screw linear stepper motor with a 48mm body length, 1.8 degree step angle and 2.5A rated current. It is integrated with a 6mm(0.2362") diameter 150mm (5.9055") length ball screw length and a steel screw nut, the linear travel is 1mm(0.03937") per revolution.
Electrical Specification
Manufacturer Part Number: 17E19S2504BSM5-150RS
Motor Type: External (Ball Screw)
Step Angle: 1.8°
Holding Torque: 0.5Nm(70.81oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 0.78ohms
Inductance: 1.5mH±20%(1KHz)
Accuracy Grade: C7
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm

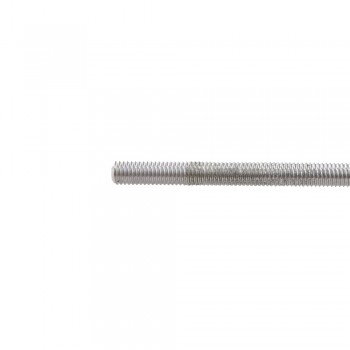

Lead Screw Length: 150mm(5.9055")
Lead Screw Diameter: Φ6mm(0.2362")
Lead/Step: 0.005mm(0.0001969")
Lead Travel/Revolution: 1mm(0.03937")
Number of Leads: 4
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
17E19S2504BSM5-150RS_Full_Datasheet.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.5 |
| Phase Resistance(ohm) | 0.78 |
| Rated Current (A) | 2.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | External(Ball Screw) |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 6 |
| Lead Screw Length(mm) | 150 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 1 |
| Lead Travel/Step(mm) | 0.005 |
| IP Rating | 40 |
