NEMA 17 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 2.54mm(0.1") Lead Length 200mm

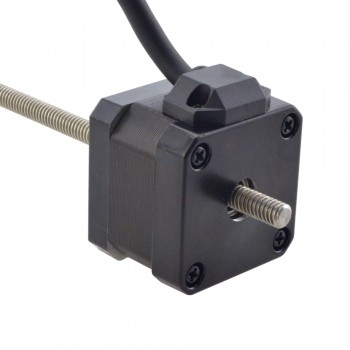

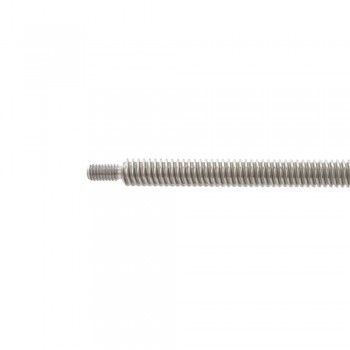

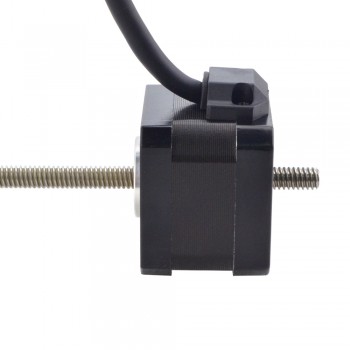

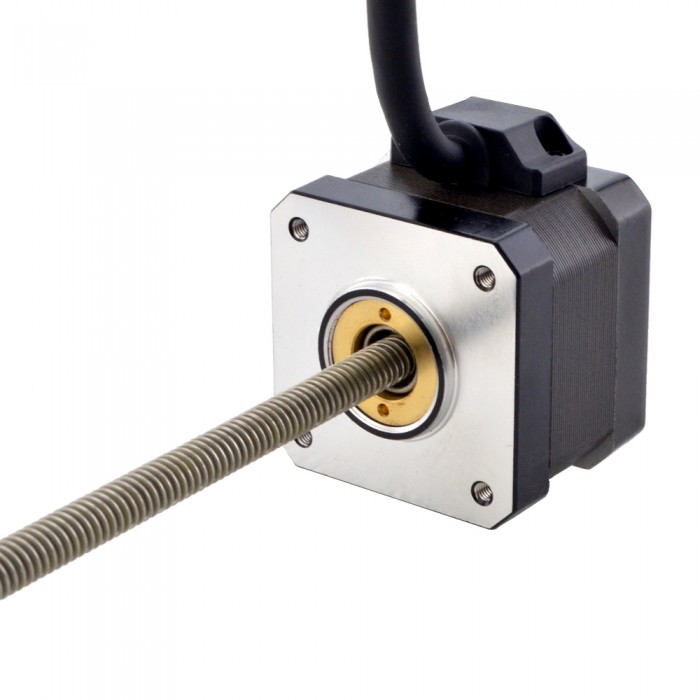

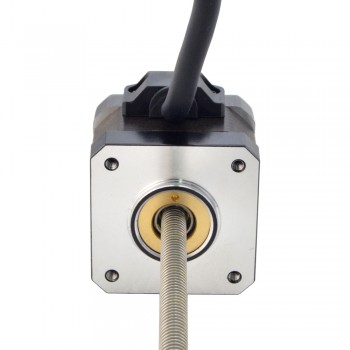

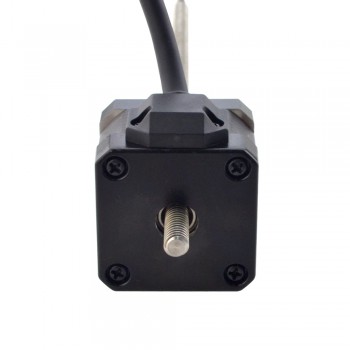

This model is a Nema 17 Non-Captive screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 200mm(7.8740") lead screw length and a POM screw nut, the linear travel is 2.54mm(0.1") per revolution.
Electrical Specification
Manufacturer Part Number: 17N13S1504GF5-200RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 0.3Nm(42.48oz.in)
Rated Current/phase: 1.5A
Phase Resistance: 1.7ohms
Inductance: 2.8mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 34mm
Lead Screw Length: 200mm(7.8740")
Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.0127mm(0.005")
Lead Travel/Revolution: 2.54mm(0.1")
Number of Leads: 4
Number of Thread Starts: 2
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
Resources
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 2.5 |
| Phase Resistance(ohm) | 1.7 |
| Rated Current (A) | 1.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 34 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 2.54 |
| Lead Travel/Step(mm) | 0.0127 |
| IP Rating | 40 |
