NEMA 17 Non-Captive Acme Linear Stepper Motor 1.5A 34mm Stack Screw Lead 12.7mm(0.5") Lead Length 200mm

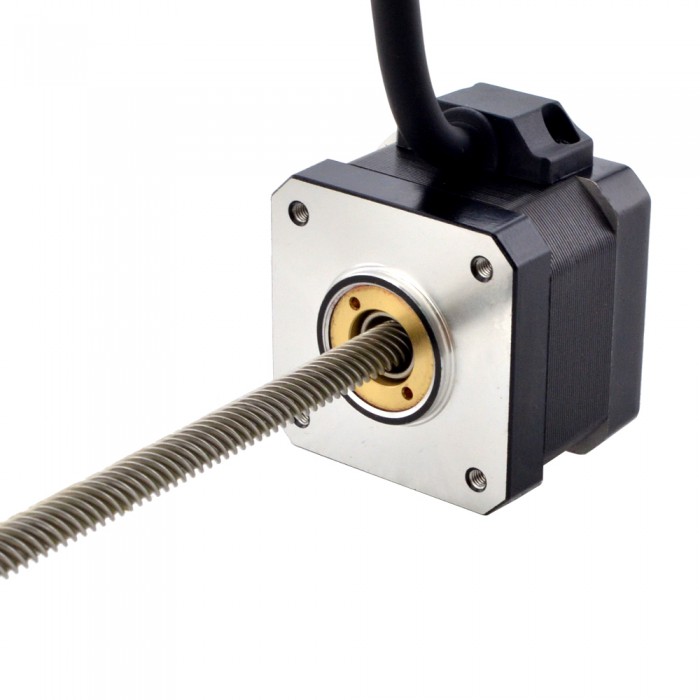

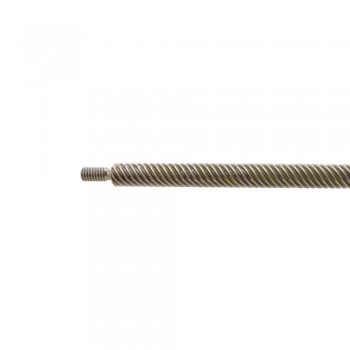

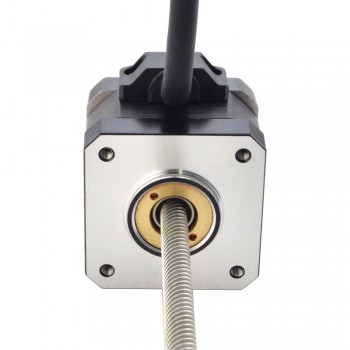

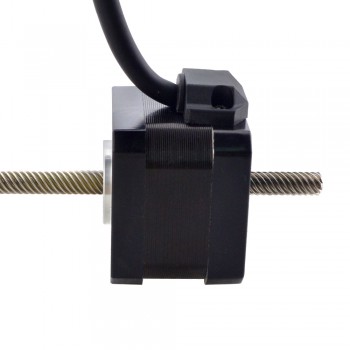

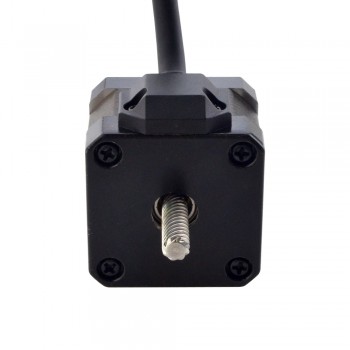

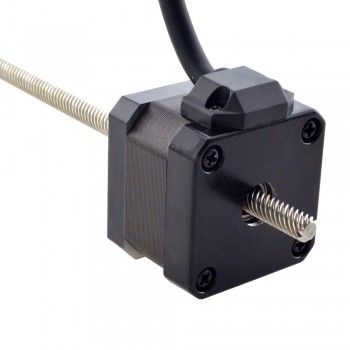

This model is a Nema 17 Non-Captive screw linear stepper motor with a 34mm body length, 1.8 degree step angle and 1.5A rated current. It is integrated with a Φ6.35mm(0.25") diameter, 200mm(7.8740") lead screw length and a POM screw nut, the linear travel is 12.7mm(0.5") per revolution.



Electrical Specification

Manufacturer Part Number: 17N13S1504WF5-200RS

Motor Type: Non-Captive

Step Angle: 1.8°

Holding Torque: 0.3Nm(42.48oz.in)

Rated Current/phase: 1.5A

Phase Resistance: 1.7ohms

Inductance: 2.8mH±20%(1KHz)



Physical Specification

Frame Size: 42 x 42mm

Body Length: 34mm

Lead Screw Length: 200mm(7.8740")

Lead Screw Diameter: Φ6.35mm(0.25")

Lead/Step: 0.0635mm(0.0025")

Lead Travel/Revolution: 12.7mm(0.5")

Number of Leads: 4

Number of Thread Starts: 8

Lead Length: 500mm



Connection

A+ A- B+ B-
Red Red/White Green Green/White



Resources

17N13S1504WF5-200RS_Full_Datasheet.pdf

17N13S1504WF5-200RS_Thrust_Force_Curve.pdf

17N13S1504WF5-200RS.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: NEMA 17 Non-Captive Acme Linear Stepper Motor Actuator 1.5A Bipolar 1.8 Deg 0.3Nm Lead Revolution 1.27mm(0.05") Lead Screw 200mm
Next: NEMA 17 Non-Captive Acme Linear Stepper Motor Actuator 1.5A Bipolar 1.8 Deg 0.3Nm Lead Revolution 2.54mm(0.1") Lead Screw 200mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2.5
Phase Resistance(ohm) 1.7
Rated Current (A) 1.5
Step Angle(deg.) 1.8
Linear Motor Type Non-Captive
Physical Specification
Body Length(mm) 34
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 500
Lead Screw Diameter(mm) 6.35
Lead Screw Length(mm) 200
No. of Lead 4
Lead Travel/Revolution(mm) 12.7
Lead Travel/Step(mm) 0.0635
IP Rating 40
