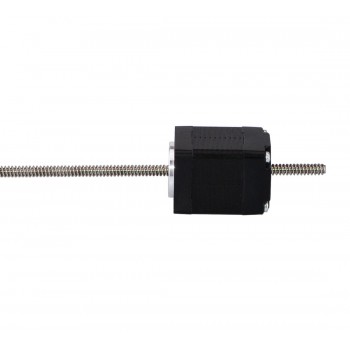

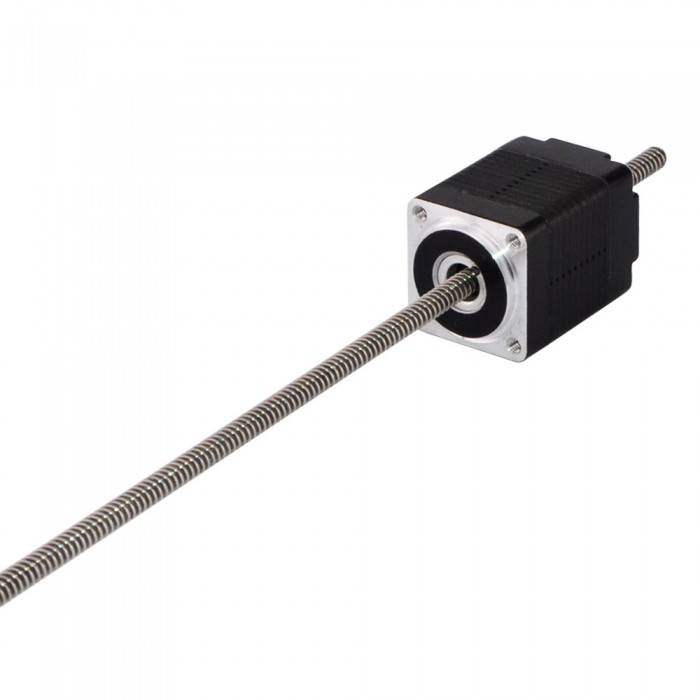

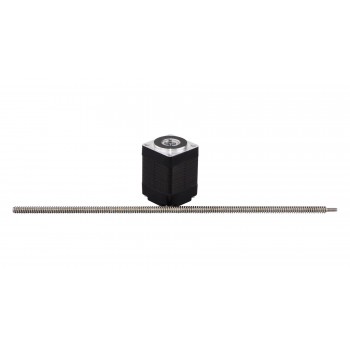

Nema 8 Non-captive 30mm Stack 0.24A Lead 0.6096mm/0.024" Length 150mm

NO.:SKU:8LS11-0244N-150N
Review: Post a review
Latest price:$115.39
Buy It Now:$88.76
Quantity:- +

Buy More, Save more!
2 - 9 10 - 39 40 - 99 100 - Max
$85.99 $83.21 $80.44 $77.67
Add To Cart

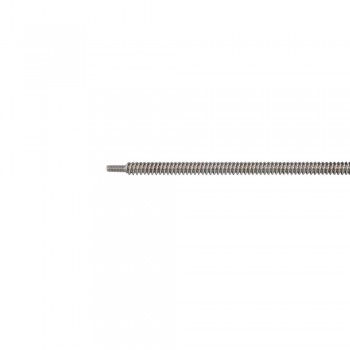

This model is almost exactly same as Haydon Kerk 21000 series size 8 non-captive stepper motor linear actuator. The motor part is 30mm body 1.8 degree 0.24A Nema 8 stepper motor, and it works with a 3.5mm (0.1378") diameter 150mm (5.9055") length lead screw, the linear travel is 0.6096mm (0.024") per revolution.

Electrical Specification

  • Manufacturer Part Number: 8LS11-0244N-150N
  • Motor Type: Non-captive Linear Stepper
  • Step Angle: 1.8°
  • Minimal Thrust: 49N (300pps)
  • Rated Current/phase: 0.24A
  • Phase Resistance: 20.4ohms
  • Voltage: 5V
  • Inductance: 3.88mH±20%(1KHz)

Physical Specification

  • Frame Size: 20 x 20mm
  • Body Length: 30mm
  • Lead Screw Length: 150mm(5.9055")
  • Lead Screw Diameter: Φ3.5mm(0.1378")
  • Lead/Step: 0.003048mm(0.00012" )
  • Lead Travel/Revolution: 0.6096mm(0.024")
  • Number of Leads: 4
  • Lead Length: 300mm
  • Weight : 43g

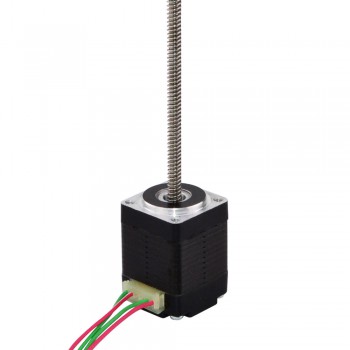

Connection

A+
A-
B+
B-
Red
Red/White
Green/White
Green

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with top quality and competitive price at Oyostepper.com!

Prev: Nema 23 External 56mm Stack 3A Lead 8mm/0.31496" Length 150mm
Next: Nema 8 Non-captive 30mm Stack 0.24A Lead 2mm/0.07874" Length 150mm
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 3.83
Minimal Thrust(N) 49
Motor Type Non-Captive
Phase Resistance(ohm) 21.3
Rated Current (A) 0.24
Step Angle(°) 1.8
Physical Specification
Body Length(mm) 30
Frame Size(mm) 20x20
Lead Screw Diameter(mm) 3.5
Lead Screw Length(mm) 150
Lead Revolution(mm) 0.6096
Linear Travel / Step(mm) 0.003048
No. of Lead 4
Lead Length(mm) 300
