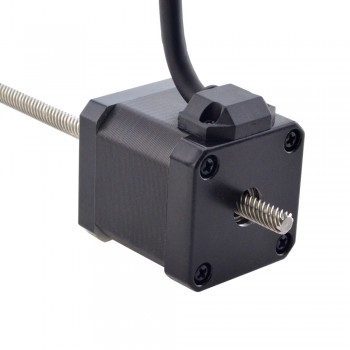

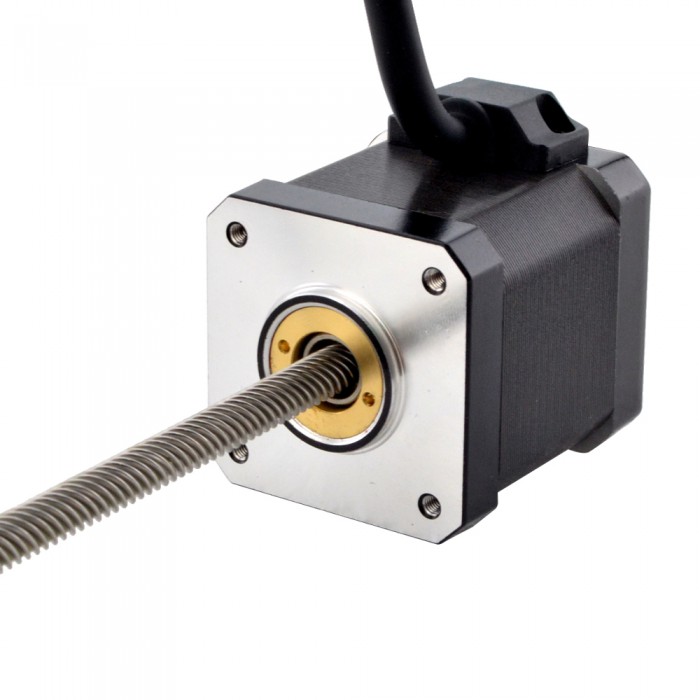

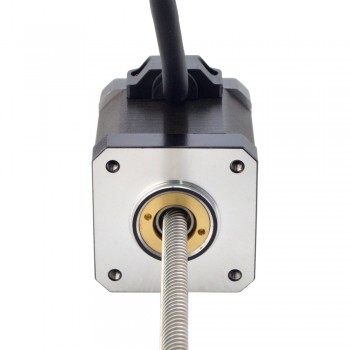

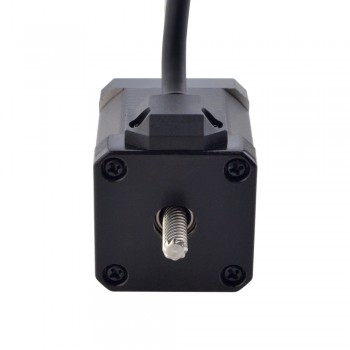

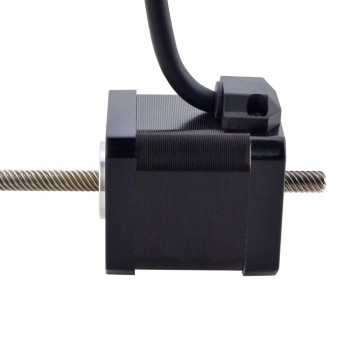

NEMA 17 Non-Captive Acme Hybrid Stepper Linear Actuator 1.8 Deg 0.5Nm 2.5A 48mm Stack Lead Revolution 12.7mm(0.5") Lead Screw 200mm
-
Manuals and Documentation:
Our Price:$41.69
NEMA 17 Non-Captive Acme Linear Stepper Motor 2.5A 48mm Stack Screw Lead 12.7mm(0.5") Lead Length 200mm
This NEMA 17 non‑captive linear stepper has a 48 mm body, 1.8° step, and 2.5 A. It features a 200 mm, 6.35 mm lead screw with POM nut (12.7 mm/rev).
Electrical Specification
Manufacturer Part Number: 17N19S2504WF5-200RS
Motor Type: Non-Captive
Step Angle: 1.8°
Holding Torque: 0.5Nm(70.82oz.in)
Rated Current/phase: 2.5A
Phase Resistance: 0.8ohms
Inductance: 1.8mH±20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 48mm
Lead Screw Length: 200mm(7.8740")

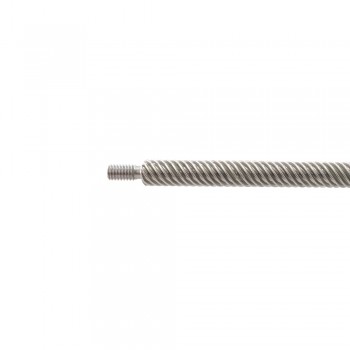

Lead Screw Diameter: Φ6.35mm(0.25")
Lead/Step: 0.0635mm(0.0025")
Lead Travel/Revolution: 12.7mm(0.5")
Number of Leads: 4
Number of Thread Starts: 8
Lead Length: 500mm
Connection
| A+ | A- | B+ | B- |
| Red | Red/White | Green | Green/White |
| Electrical Specification | |
|---|---|
| Bipolar/Unipolar | Bipolar |
| Inductance(mH) | 1.8 |
| Phase Resistance(ohm) | 0.8 |
| Rated Current (A) | 2.5 |
| Step Angle(deg.) | 1.8 |
| Linear Motor Type | Non-Captive |
| Physical Specification | |
| Body Length(mm) | 48 |
| Frame Size(mm) | Nema 17 (42 x 42) |
| Lead Length(mm) | 500 |
| Lead Screw Diameter(mm) | 6.35 |
| Lead Screw Length(mm) | 200 |
| No. of Lead | 4 |
| Lead Travel/Revolution(mm) | 12.7 |
| Lead Travel/Step(mm) | 0.0635 |
| IP Rating | 40 |
