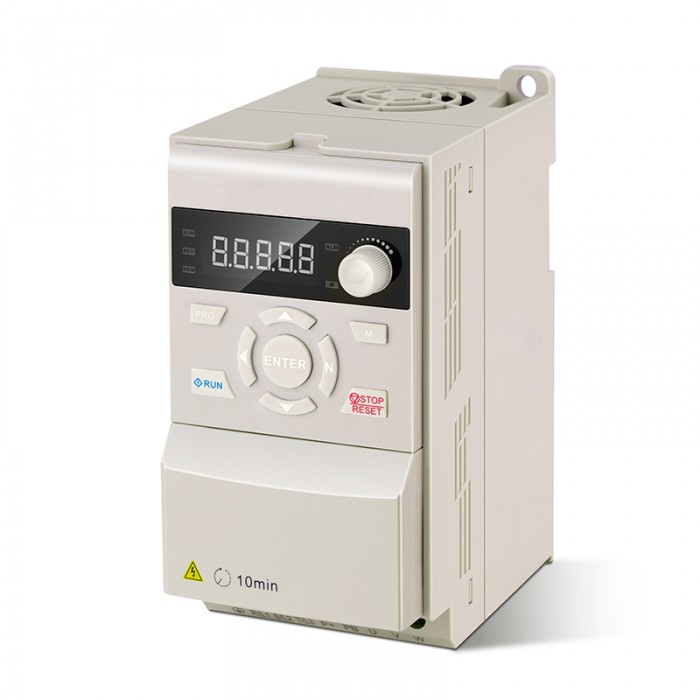

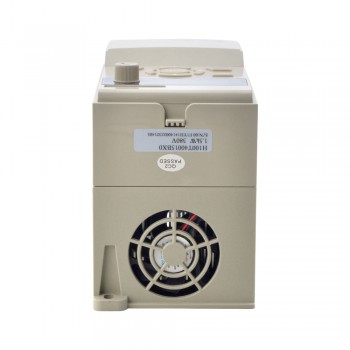

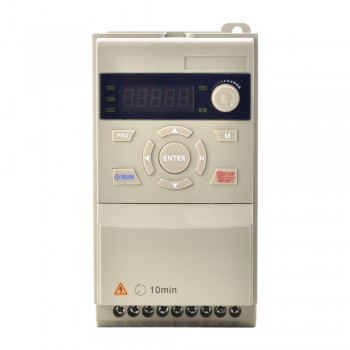

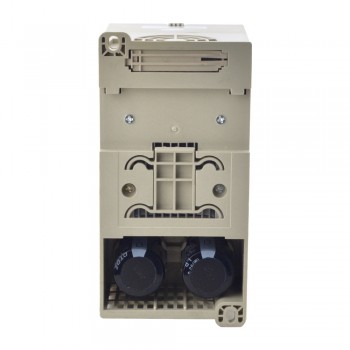

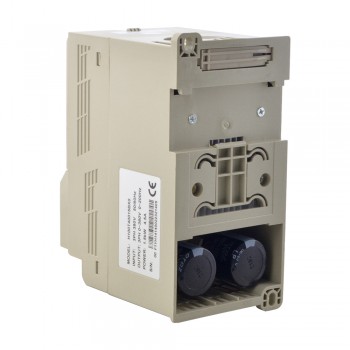

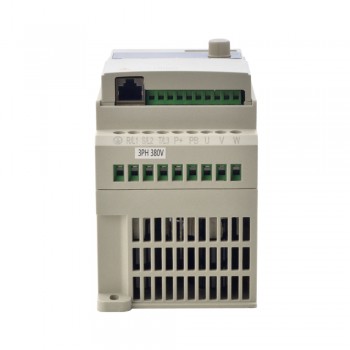

H100 Series VFD 2HP 1.5KW 4.5A Three Phase 380V Variable Frequency Drive
This VFD with power 2HP(1.5KW) and three phase 380V input voltage. The H100 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.
Key Specification
Rated Input Voltage: 3-Phase 380V
Allowed Input Voltage: 320~460VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 5.8A
Power: 2HP(1.5KW)
Output Current: 4.5A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s
Resources
- Easy User Manual:H1_Series_Inverter_Easy_User_Manual.pdf
- Full User Manual:H1_Series_Inverter_Full_User_Manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Variable Frequency Drive Specification | |
|---|---|
| Input Voltage | 3PH 380VAC |
| Allowed Input Voltage | 320 - 460VAC |
| Input Frequency | 50 - 60Hz |
| Input Current | 5.8A(3PH) |
| Power | 2HP / 1.5Kw |
| Output Current | 4.5A |
| Control Modes | V/F, SVC |
| Output Voltage | 0 - Rated Input Voltage |
| Output Frequency | 0 - 1000Hz |
| Output Capacity | 150% Rated Current 60s, 180% Rated Current 2s |
| Modulation Mode | SVPWM |
| Start Torque | 1Hz / 150% |
| Speed Range | 1 : 100(SVC) |
| Acceleration/Deceleration Curve | Line / S-curve |
| Frequency Accuracy | Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%) |
| Motor Type | Asynchronous Motor, Synchronour Motor, Single Phase Motor |
| Frequency Resolution | Digital (0.1Hz) / Anolog (Max. Frequency+/-1%) |
| Rapid Current Limit | Limit current rapidly within the current protection value, to ensure the safety of the equipment |
| Command Source | Keypad, Terminal, Communication |
| None-stop When Instantaneous Power Off | None-stop when instantaneous power off, automatic frequency drop |
| Set Value Source | Digital, Analog, Multi-speed, Communication |
| PID | Support main setting + PID |
| External Keypad | Yes |
| LED Display | Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm |
| Protection Function | Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc |
| Altitude | Derating use abouve 1000M, derating 10% per 1000M |
| Environment Temperature | -10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use) |
| Humidity | 5%~95%RH, No condensation |
| Vibration | <5.9M/S (0.6g) |
| Store Environment | Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc |
| Store Temperature | -40℃ ~ +70℃ |
