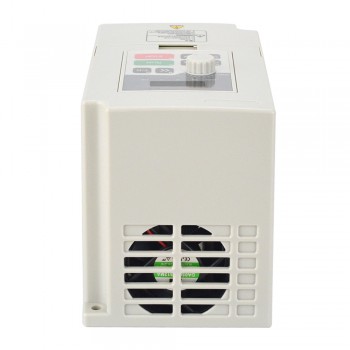

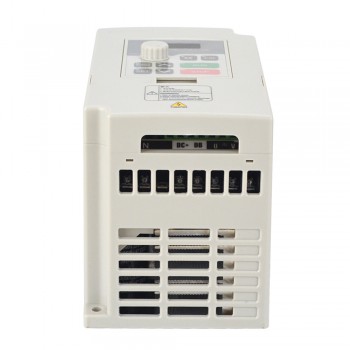

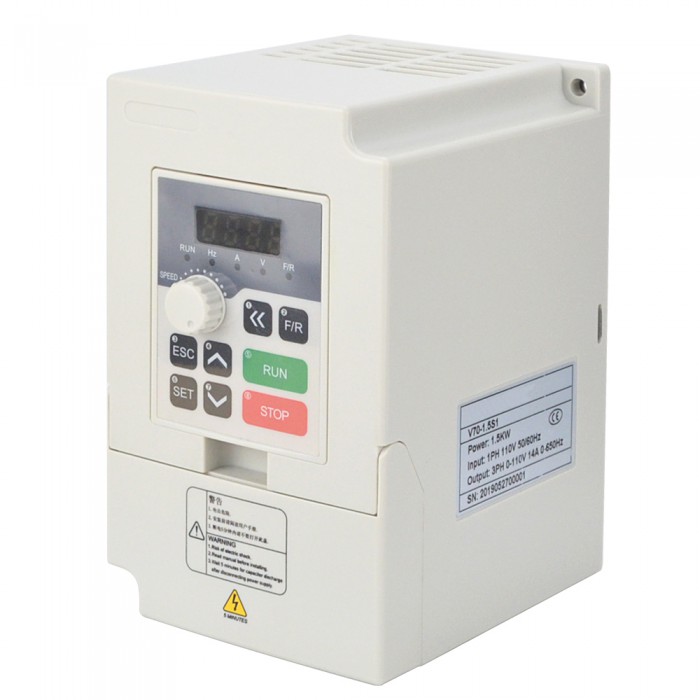

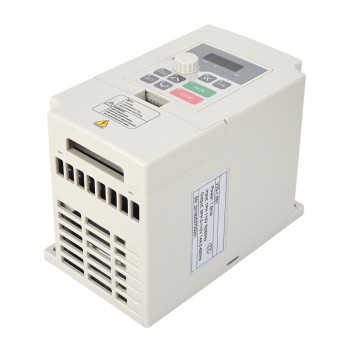

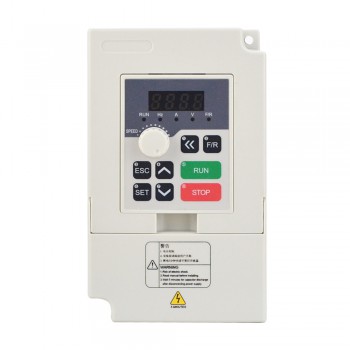

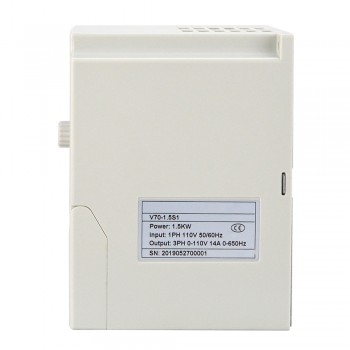

Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control CNC VFD 1.5KW 2HP 14A 110V

Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control CNC VFD 1.5KW 2HP 14A 110V
NO.:V70-1.5S1
Review: Post a review
Latest price:$155.41
Buy It Now:$103.61
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $100.16 3%
10 $96.70 7%
50 $93.26 10%
100 $89.79 13%
Add To Cart

Specifications:

  • Manufacturer Part Number: V70-1.5S1
  • Input Voltage: 110 V (Single-phase)
  • Input Frequency: 50/60 Hz
  • Power: 1.5 KW
  • Capacity of driver: 2.8 KVA
  • Output current: 14 A
  • Applicable motor: 1.5 KW
  • Control mode: V/F, Vector control
  • Communication control: RS-485
  • Operating temperature: -10 - 40 ℃
  • Humidity: 0 - 95%(without condensation)
  • Vibration: Less than 0.5G
  • Overload protection: Electric relay protection motor driver (constant torque: 150% per minute, fans: 120% per minute)
  • FUSE protection: When the fuse blows, the motor stops
  • Over-voltage protection: DC voltage > 200V
  • Low-voltage protection: DC voltage < 100V

Frequency Control:

  • Frequency Range: 0.1 - 1000 Hz
  • Accuracy: 0.1%(-10 - 40 ℃) for digital; 0.1%(25 ± 10 ℃) for analog
  • Setting Resolution: 0.1 Hz for digital; 1% of Max. operating frequency for analog
  • Output Resolution: 0.1 Hz
  • Keyboard Setting Mode: Set as ← ▲ ▼ directly
  • Analog Setting Mode: External voltage 0 - 5 V, 0 - 10 V, 4 - 20 mA, 0 - 20 mA
  • Other Functions: Three hopping frequency(lower-frequency limit, startup frequency and stop frequency) can be set respectively

Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: CNC VFD Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control 0.75KW 1HP 7A 110V
Next: Variable Frequency Drive Motor Inverter for Spindle Motor Speed Control CNC VFD 2.2KW 3HP 20A 110V
VFD Specification
Capacity of driver(KVA) 2.8
Horsepower(Hp) 2
Input Frequency(Hz) 50/60
Input Voltage (V) 110 (Single-phase)
Output Current(A) 14
Power(Kw) 1.5
