BD600 Series VFD Variable Frequency Drive 2HP 1.5KW 7A Single/Three Phase 220V Frequency Converter VFD Converter

BD600 Series VFD Variable Frequency Drive 2HP 1.5KW 7A Single/Three Phase 220V Frequency Converter VFD Converter
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$161.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $153.89 5%
5 $150.65 7%
10 $145.79 10%
50 $140.93 13%
Add To Cart

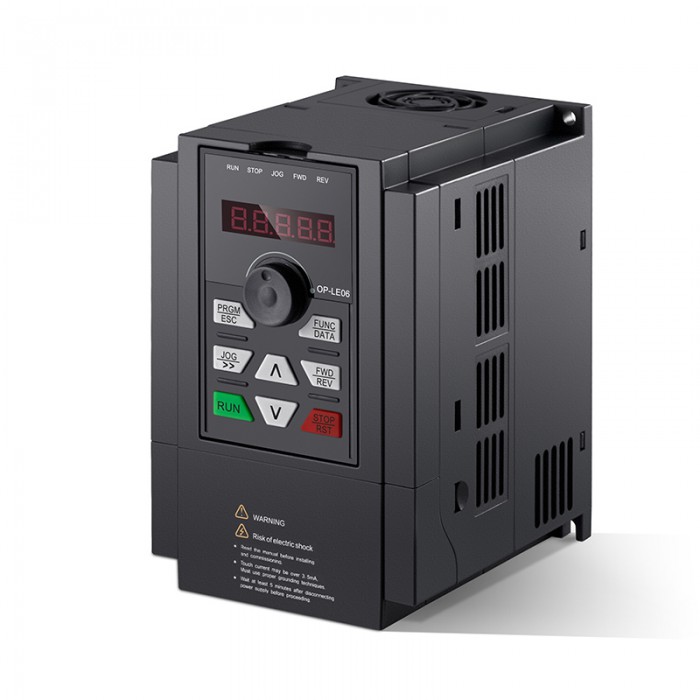

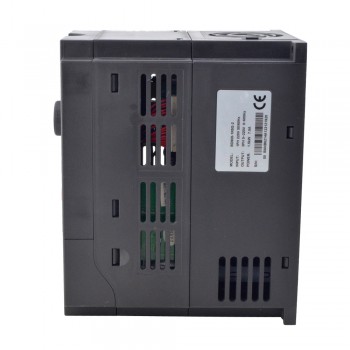

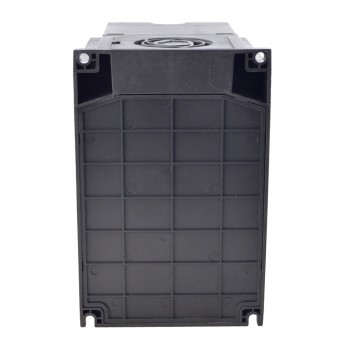

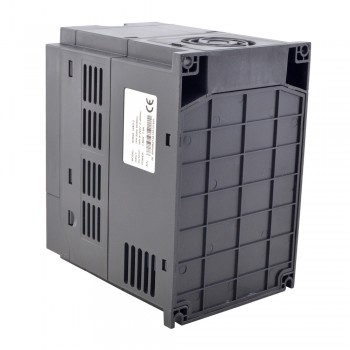

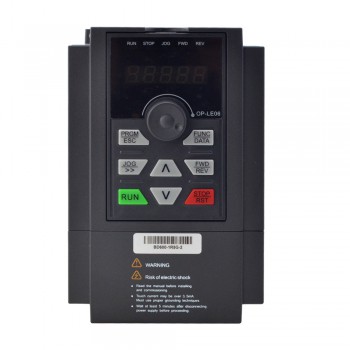

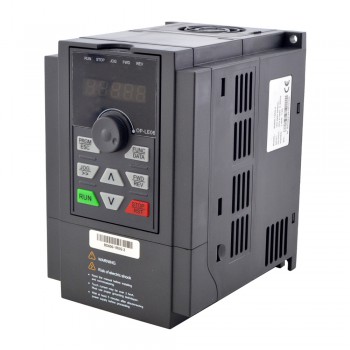

BD600 Series VFD 2HP 1.5KW 7A Single/Three Phase 220V Variable Frequency Drive


This VFD with power 2HP(1.5Kw) and single/three phase 220V input voltage. The BD600 series is a stable performance Vector Control Variable Frequency Drive(VFD), they are widely used in application of: Metal processing, CNC machine tools, Wire drawing machines, Boiler blower, Induced draft fan, Coal mine underground exhaust fan, Municipal engineering, Counter-cyclone, Centrifugal fan, Circulating water pump, Make-up water pump, Oil field injection water pump, Oil transfer pump, music fountain, Papermaking equipment, Chemical industry, Pharmaceutical industry, Textile industry, etc.


Key Specification

Input Voltage: 1-Phase/3-Phase 220VAC±15%

Input Frequency: 47~63Hz

Input Current: 1-Phase 14.0A, 3-Phase 8.4A

Input Power factor: ≥95%

Power: 2HP(1.5Kw)

Output Current: 7.0A



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: H110 Series VFD Variable Frequency Drive 10HP 7.5KW 19A Three Phase 380V Motor Inverter for CNC Spindle Motor
Next: BD600 Series VFD Variable Frequency Drive 3HP 2.2KW 10A Single/Three Phase 220V Variable Frequency Drive
Variable Frequency Drive Specification
Input Voltage 1PH 220V / 3PH 220VAC
Input Frequency 47 - 63Hz
Input Current 14A(1PH) / 8.4A(3PH)
Power 2HP / 1.5KW
Output Current 7A
Control Modes V/F control, non-PG vector control(SVC), PG vector control(FVC)
Input Power factor ≥95%
V/F Control Line, Multiple point, square V/F curve, V/F separation
Start Torque G type: 0.5Hz/150%(SVC), 0Hz/180%(FVC); P type: 0.5Hz/100%
Frequency Resolution 0.01Hz(Digital setting); maximum frequency x 0.025%(Anolog setting)
Vibration Under 20Hz 9.8m/s(1G), Over 20Hz5.88m/s(0.6G)
Store Environment ≤1000M, indoor(no corrosive gas and liquid)
Store Temperature -20℃~60℃
Operation Command Mode Keypad control, Terminal control, Serial communication control
Frequency Reference Source Digital, analog, pulse frequency, serial communication, multi-step speed, simple PLC and PID The combination of multi-modes and the different modes can be switched
Overload Capacity G type: 150% rated current 60s, 180% rated current 3s; P type: 120% rated current 60s, 150% rated current 3s
Speed Adjusting Range 1:100(SVC), 1:1000(FVC)
Speed Control Accuracy ±0.5%(SVC), ±0.02%(FVC)
Carrier Frequency 0.5 to 16.0kHz; automatically adjust carrier frequency according to the load characteristics
Torque Boost Automatic torque boost; manual torque boost 0.1~30%
Acceleration and Deceleration Mode Line or S-curve, 4 types of acceleration/deceleration time with the range of 0.0~6500.0s
DC Brake Supports starting and stopping DC brake
Jogging Control 0.0Hz~50.00Hz(Jog frequency range); 0~6500.0s(Jog Acc/Dec time)
Simple PLC & Multi-step Speed Operation Built-in PLC or control terminal, 16 steps speed can be set
Built-in PID Built-in PID control to easily realize the closed loop control for the process parameters (such as a pressure, temperature, flow, etc.)
Automatic Voltage Regulation(AVR) Automatically maintain a constant output voltage when the voltage of electricity grid changes
Common DC Bus Multiple inverters can use a common DC bus(Common DC bus function)
Traverse Control Multiple triangular pulse frequency control(Traverse control function)
Fixed Length Control Setting length control
Timing Control 0~6500min(Setting time range)
Input Terminals a. Supports high speed pulse input, b. 1 Analog voltage input 0~10VDC, c. 2 Voltage input 0~10VDC or current input 0~20mA
Output Terminals a. 1 Open collector output, it can be extended to 1 high speed pulse output, b. 2 Relay outputs, c. 2 Analog output: voltage output 0~10VDC or current output 0~20mA
Protection Class IP20
Humidity & Temperature 90%RH or less (no-condensation), -10℃~40℃.Inverter will be derated if ambient temperature exceeds 40℃
Cooling Mode Forced air-cooling
