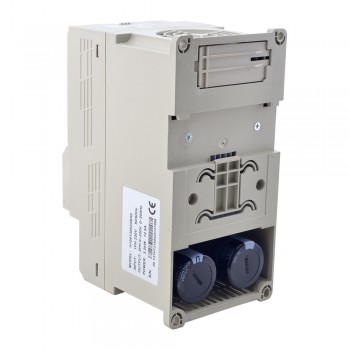

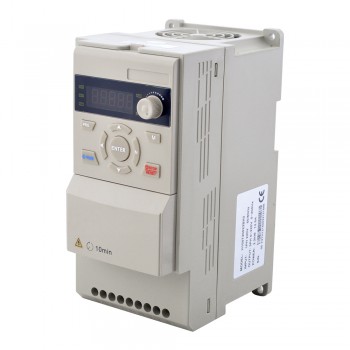

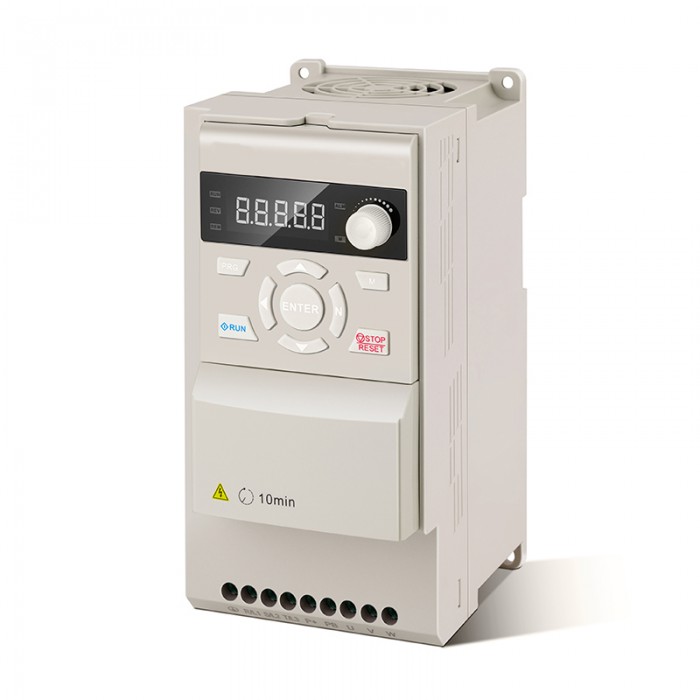

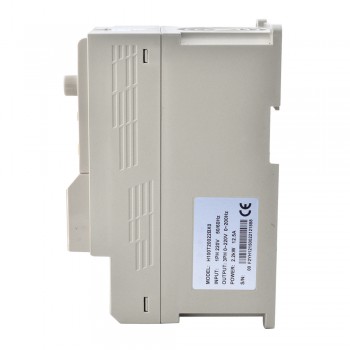

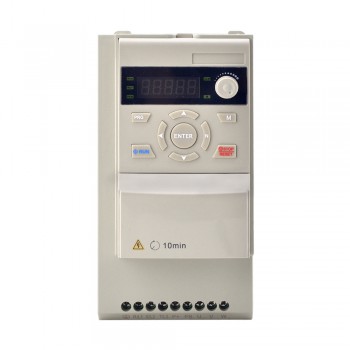

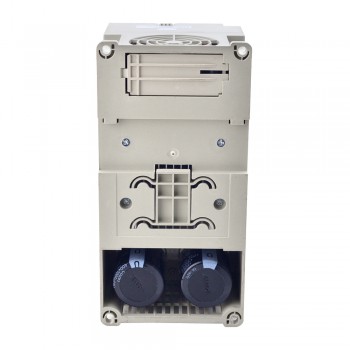

H100 Series VFD 3HP 2.2KW 12.5A Single/Three Phase 220V Variable Frequency Drive
This VFD with power 3HP(2.2Kw) and single/three phase 220V input voltage. The H100 series is General Variable Frequency Drive(VFD), they are widely used in application of: Textile machines, Packaging machines, Engraving machines, Printing machines, Food machinery, Woodworking machinery, Pump fans, Ceramic machinery, Solar pumps and others.
Key Specification
Rated Input Voltage: 1-Phase / 3-Phase 220V
Allowed Input Voltage: 1-Phase 180~260VAC, 3-Phase 320~460VAC
Input Frequency: 50/60Hz(+/-5%)
Input Current: 1-Phase 23A, 3-Phase 13.5A
Power: 3HP(2.2Kw)
Output Current: 12.5A
Output Voltage: 0~Rated Input Voltage
Output Frequency: 0~1000Hz
Output Capacity: 150% Rated Current 60s, 180% Rated Current 2s
Resources
Easy User Manual:H1_Series_Inverter_Easy_User_Manual.pdf
Full User Manual:H1_Series_Inverter_Full_User_Manual.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Variable Frequency Drive Specification | |
---|---|
Input Voltage | 1PH 220V / 3PH 380VAC |
Allowed Input Voltage | 180 - 260VAC(1PH) / 320 - 460VAC(3PH) |
Input Frequency | 50 - 60Hz |
Input Current | 23A(1PH) / 13.5A(3PH) |
Power | 3HP / 2.2Kw |
Output Current | 12.5A |
Control Modes | V/F, SVC |
Output Voltage | 0 - Rated Input Voltage |
Output Frequency | 0 - 1000Hz |
Output Capacity | 150% Rated Current 60s, 180% Rated Current 2s |
Modulation Mode | SVPWM |
Start Torque | 1Hz / 150% |
Speed Range | 1 : 100(SVC) |
Acceleration/Deceleration Curve | Line / S-curve |
Frequency Accuracy | Digital (Max. Frequency+/-0.01%) / Anolog (Max. Frequency+/-1%) |
Motor Type | Asynchronous Motor, Synchronour Motor, Single Phase Motor |
Frequency Resolution | Digital (0.1Hz) / Anolog (Max. Frequency+/-1%) |
Rapid Current Limit | Limit current rapidly within the current protection value, to ensure the safety of the equipment |
Command Source | Keypad, Terminal, Communication |
None-stop When Instantaneous Power Off | None-stop when instantaneous power off, automatic frequency drop |
Set Value Source | Digital, Analog, Multi-speed, Communication |
PID | Support main setting + PID |
External Keypad | Yes |
LED Display | Can display: Output frequency, Output voltage, Output current, Bus voltage, Display value 1, Display value 2, Error, Alarm |
Protection Function | Over-current protection, Over-voltage protection, Under-voltage protection, Overheating protection, Over-load protection, Phase lose protection, Earth leakage, etc |
Altitude | Derating use abouve 1000M, derating 10% per 1000M |
Environment Temperature | -10℃ ~+40℃ (environment temperature around 40℃~50℃, please derating use) |
Humidity | 5%~95%RH, No condensation |
Vibration | <5.9M/S (0.6g) |
Store Environment | Indoor, away from direct sunlight, no dust, no corrosive gas, no inflammable gas, no oil mist, no vapour, no drip and no salinity, etc |
Store Temperature | -40℃ ~ +70℃ |
