24V 172W 70RPM Brushless Geared DC Motor 50:1 with Gearbox BLDC Gear Motor
-
Manuals and Documentation:
Full Datasheet:
24V 172W 70RPM Brushless Geared DC Motor 50:1 with Gearbox BLDC Gear Motor

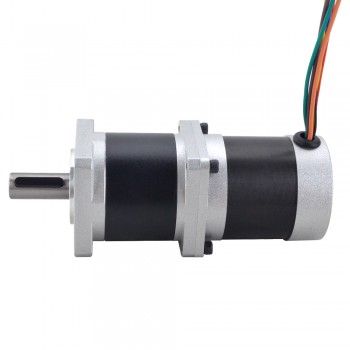

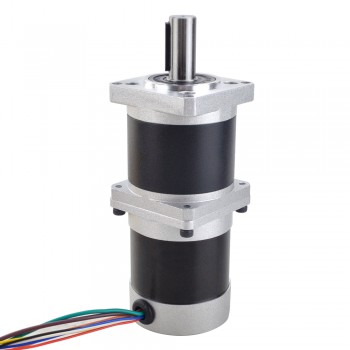

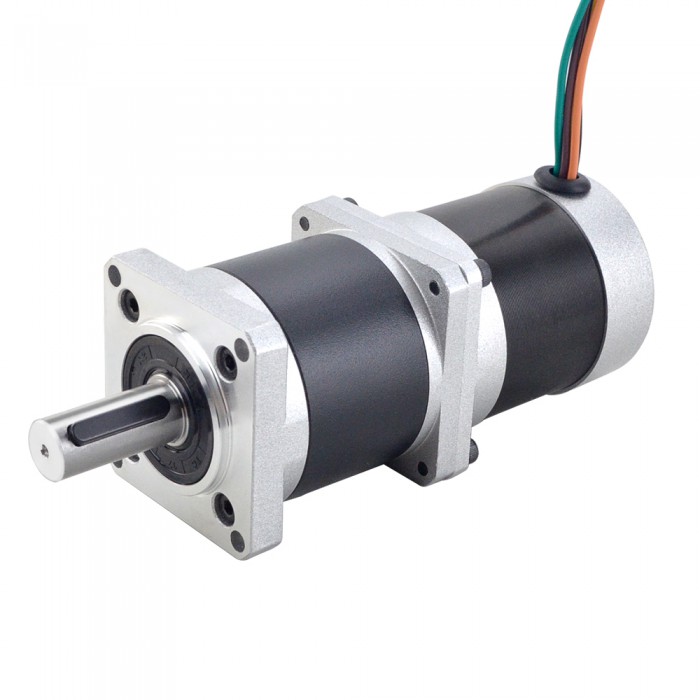

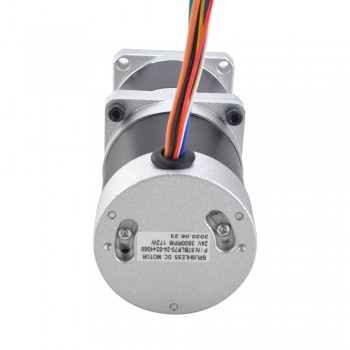

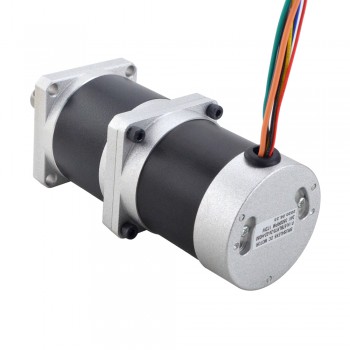

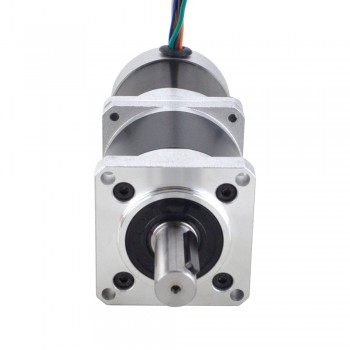

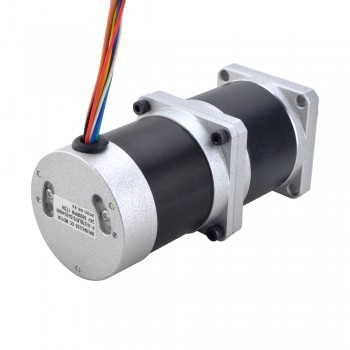

This 57 mm geared BLDC motor (57BLR70-24-02-HG50) runs at 3500 rpm on 24 V, delivers 0.47 Nm, and features a 50:1 planetary gearbox with 20 Nm max torque and Hall sensors.
Electrical Specification
Manufacturer Part Number: 57BLR70-24-02-HG50
Phase: 3
Poles: 4
Rated Voltage: 24V
Rated Speed: 3500±10%RPM
Rated Torque: 0.47Nm(66.56oz.in)
Rated Current: 10.4±10%A
Rated Power: 172W
Insulation Class: Class B
Insulation Resistance: 100MΩ Min @500VDC
Dielectric Strength Test: 500VAC for 1 Minute
Physical Specification
Frame Size: Φ57mm
Body Length: 69.1mm
Gearbox Length: 61.65mm
Shaft Diameter: Φ14mm
Shaft Length: 34mm
Key-way Length: 25mm
Number of Leads: 8
Lead Length: 300mm
Bearing Type: NMB Ball Bearing, C3
Weight: 1.49kg
Gearbox Specifications
Gearbox Type: Planetary
Gear Ratio: 50 : 1
Efficiency: 75%
Backlash at No-load: <=1.6 deg
Max. Permissible Torque: 20Nm(2832.8oz.in)
Moment Permissible Torque: 40Nm(5665.6oz.in)
Max. Radial Load: 250N
Insulation Class: B
Noise: <=50 dB
Ambient Temperature: 0 - 50℃
Connection
| U | V | W | +5V | GND | A | B | C |
| ORG | GRN | BRW | RED | BLK | YEL | WHT | BLU |
| Electrical Specification | |
|---|---|
| Rated Current (A) | 10.4 |
| No. of Phase | 3 |
| Rated Power(W) | 172 |
| Rated Torque(Nm) | 0.47 |
| Rated Voltage(V) | 24 |
| Physical Specification | |
| Body Length(mm) | 69.1 |
| Frame Size(mm) | Round 57 |
| Shaft Diameter(mm) | 14 |
| Shaft Length(mm) | 34 |
| Gear Ratio | 50 |
| Backlash at No-load | <=1.6 deg |
| Product Type | BLDC MOTOR |
| IP Rating | 20 |
