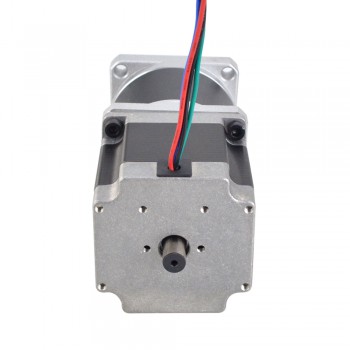

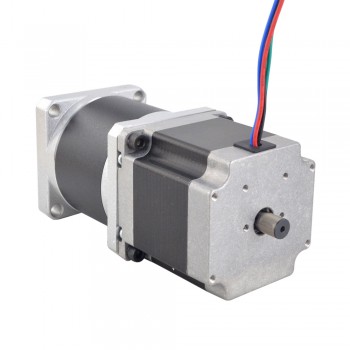

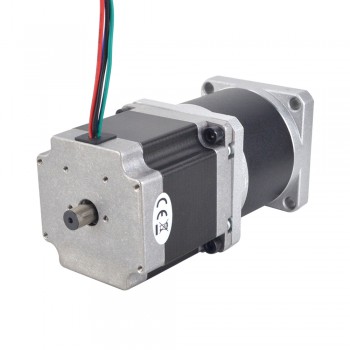

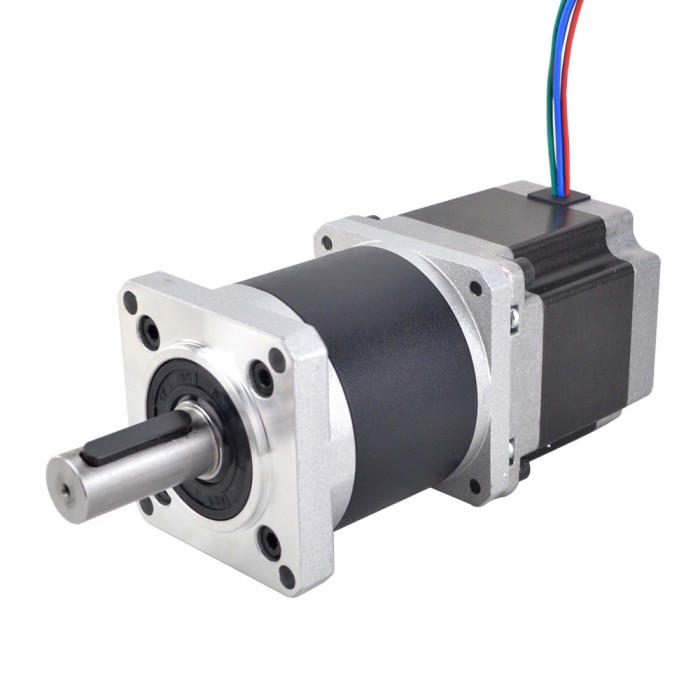

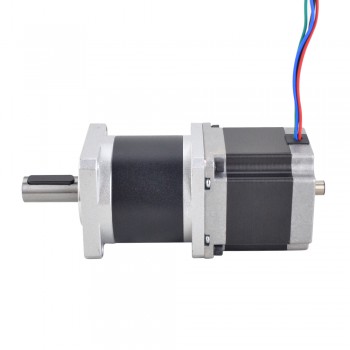

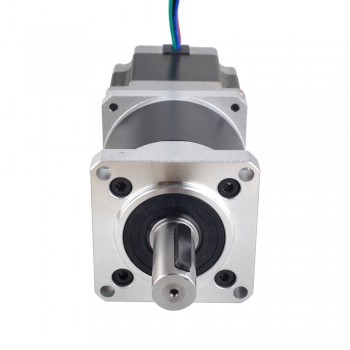

Nema 23 Dual Shaft Stepper Motor L=56mm Gear Ratio 50:1 Planetary Gearbox

Nema 23 Dual Shaft Stepper Motor L=56mm Gear Ratio 50:1 Planetary Gearbox
NO.:23HS22-2804D-HG50-AR3
Post a review
Special Offer in July 2024:
  • $10 Off Over $150
  • $20 Off Over $300
  • $35 Off Over $500
  • $55 Off Over $800
  • $70 Off Over $1000
  • $100 Off Over $1500
  • Enjoy Discount at Checkout!
  • Valid Till July 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$109.25
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
2 $103.79 5%
5 $101.60 7%
10 $98.33 10%
50 $95.05 13%
Add To Cart

Nema 23 Dual Shaft Stepper Motor L=56mm Gear Ratio 50:1 Planetary Gearbox 9.5mm Rear Shaft Length



If you expect to remove key on motor shaft, please leave us a message when ordering.



Electrical Specification

Manufacturer Part Number: 23HS22-2804D-HG50-AR3

Motor Type: Bipolar Stepper

Step Angle: 0.036 deg

Holding Torque without Gearbox: 102Ncm(144.44oz.in)

Rated Current/phase: 2.8A

Phase Resistance: 0.9ohms

Voltage: 2.5V

Inductance: 2.8mH ± 20%(1KHz)



Gearbox Specifications

Gearbox Type: Planetary

Gear Ratio: 50 : 1

Efficiency: 75%

Backlash at No-load: <=1.6 arcmin

Max. Permissible Torque: 20Nm(2832.8oz.in)

Moment Permissible Torque: 40Nm(5664oz.in)

Max. Radial Load: 250N

Ambient Temperature: -10 - 90℃

Insulation Class: B

Noise: <=50 dB

Life: 20000 h



Physical Specifications

Frame Size: 57 x 57mm

Motor Length: 55mm

Gearbox Length: 61.65mm

Front Shaft Diameter: Φ14mm

Front Shaft Length: 34mm

Rear Shaft Diameter: Φ8mm

Rear Shaft Length: 9.5mm

Key-way Length: 25mm

Number of Leads: 4

Lead Length: 320mm

Weight: 1502g



Connection



A+ A- B+ B-
Black Green Red Blue



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: 24V 172W 70RPM Brushless Geared DC Motor 50:1 with Gearbox BLDC Gear Motor
Next: Nema 23 Stepper Motor Bipolar L=76mm 1.89Nm 2.9A with 50:1 Planetary Gearbox TQMG Series
Electrical Specification
Bipolar/Unipolar Bipolar
Inductance(mH) 2.8
Phase Resistance(ohm) 0.9
Current(A) 2.8
Holding Torque w/o Gearbox(N.m) 1.02
Physical Specification
Body Length(mm) 116.65
Frame Size(mm) Nema 23 (57 x 57)
Lead Length(mm) 320
No. of Lead 4
Shaft Diameter(mm) 14
Shaft Length(mm) 34
Single Shaft/Dual Shaft Dual Shaft
Weight(g) 1502
Gearbox Type Precision Planetary
Gear Ratio 50
Backlash at No-load <=1.6 arcmin
Output Shaft Type Key-way
IP Rating 40
