Nema 34 Worm Gearbox Motor 5:1 NMRV40 Worm Gear Speed Reducer for Nema 34 Stepper Motor

 Nema 34 Worm Gearbox Motor 5:1 NMRV40 Worm Gear Speed Reducer for Nema 34 Stepper Motor
NO.:NMRV40-G5-D14
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$50.39
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $47.87 5%
10 $46.86 7%
50 $45.35 10%
100 $43.84 13%
Add To Cart

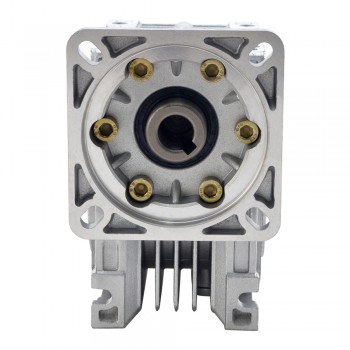

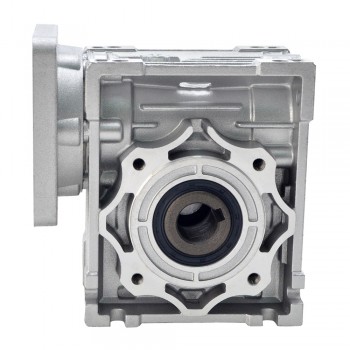

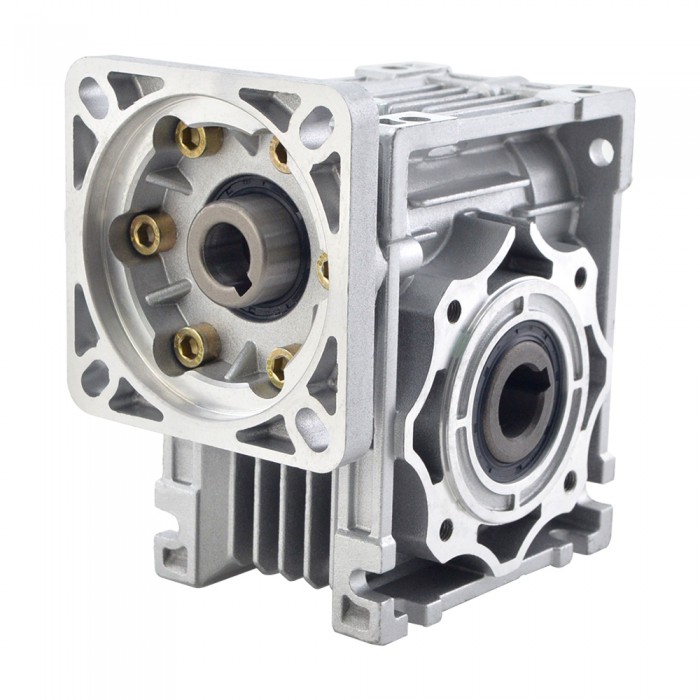

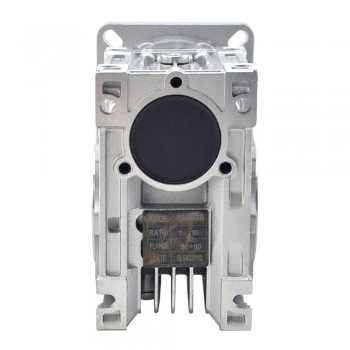

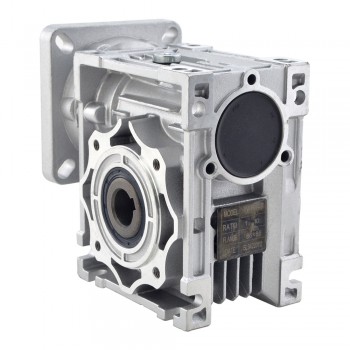

5:1 Worm Gearbox NMRV40 Worm Gear Speed Reducer 14mm Input Shaft Diameter



This worm gearbox is designed for Nema 34 Stepper Motor or other 86mmx86mm size motor, the output shaft is offset by 90° from the drive shaft. The advantage for this gearbox is efficiency and self-locking. Besides big cases, no gap structure of box means a maintenance- free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.



Gearbox Specifications

Manufacturer Part Number: NMRV40-G5-D14

Gearbox Type: Worm Gearbox

Gear Ratio: 5:1

Efficiency: 87%

Backlash at No-load: <=1°

Output Max.Permissible Torque: 40Nm(354.03lb-in)

Output Max. Radial Load: 1.18kN

Output Type: Hollow Bore

Output Bore Diameter: Φ18mm

Input Shaft Type: Key way

Input Shaft Diameter: Φ14mm

Input Shaft Max. Length: 35mm



Please note:

The output shaft is available, please contact our technical support for your requirements.

The gear ratios available for this gearbox are: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1 and 40:1.

Due to their relatively high backlash (1°), worm gearboxes are not suitable for positioning applications.



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: LRS-200-36 MEANWELL Switching Power Supply 200W 36VDC 5.9A 115/230VAC Enclosed Switching CNC Power Supply
Next: TQMG Series Planetary Gearbox 10:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Physical Specification
Input Shaft Diameter(mm) 14mm
Gear Ratio 5
Input Shaft Max. Length 35mm
