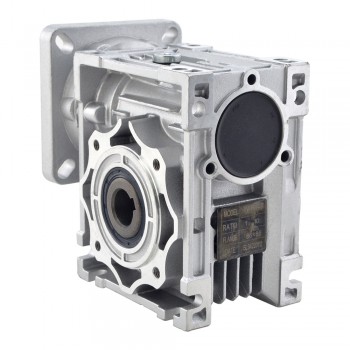

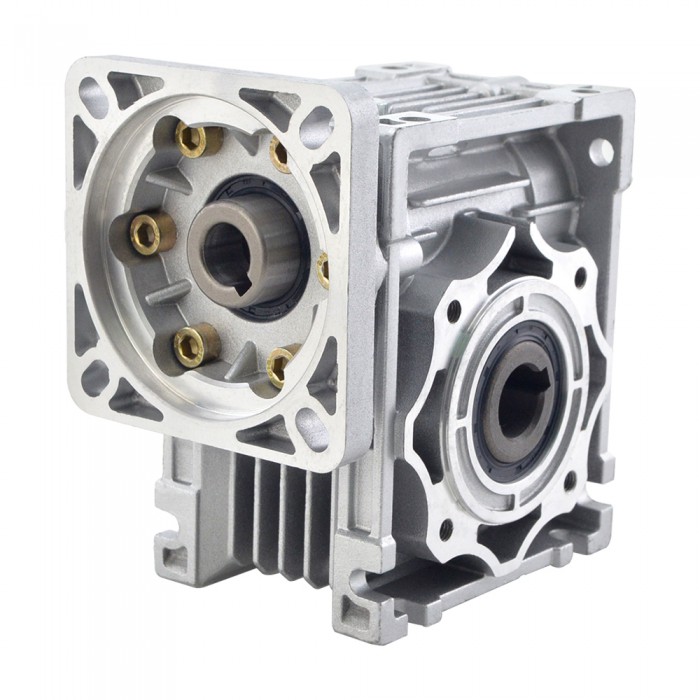

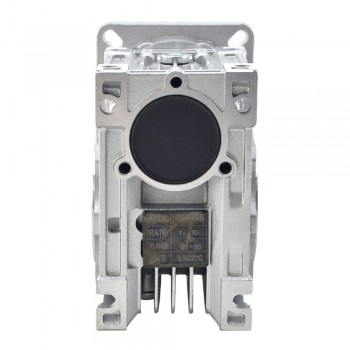

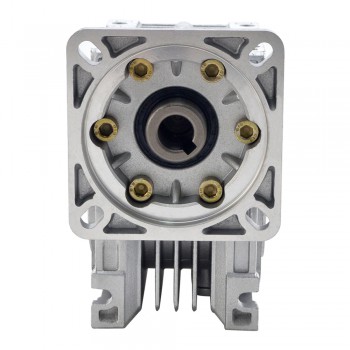

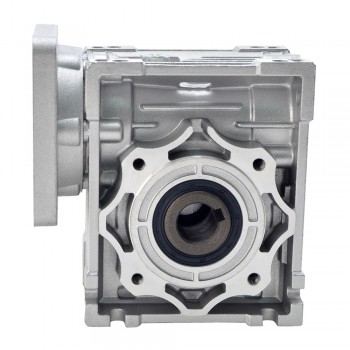

Nema 34 30:1 Worm Gearbox Motor NMRV40 Worm Gear Motor Speed Reducer for Nema 34 Stepper Motor

30:1 Worm Gearbox NMRV40 Worm Gear Speed Reducer 14mm Input Shaft Diameter

The worm gearbox is compatible with NEMA 34 stepper motors or other motors measuring 86mm x 86mm. It features a 90° offset between the output shaft and drive shaft, with a self-locking function.

Gearbox Specifications

Manufacturer Part Number: NMRV40-G30-D14

Gearbox Type: Worm Gearbox

Gear Ratio: 30:1

Efficiency: 70%

Backlash at No-load: <=1°

Output Max.Permissible Torque: 45Nm(398.28lb-in)

Output Max. Radial Load: 2.08kN

Output Type: Hollow Bore

Output Bore Diameter: Φ18mm

Input Shaft Type: Key way

Input Shaft Diameter: Φ14mm

Input Shaft Max. Length: 35mm

Please note:

The output shaft is available, please contact our technical support for your requirements.

The gear ratios available for this gearbox are: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1 and 40:1.
