TQMG Series Planetary Gearbox 10:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor

TQMG Series Planetary Gearbox 10:1 Backlash 30 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
NO.:TQMG17-G10
Post a review
Special Offer in Black Friday 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till December 3th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$22.17
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $21.06 5%
10 $20.62 7%
50 $19.95 10%
100 $19.29 13%
Add To Cart

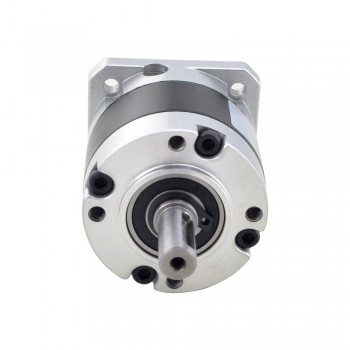

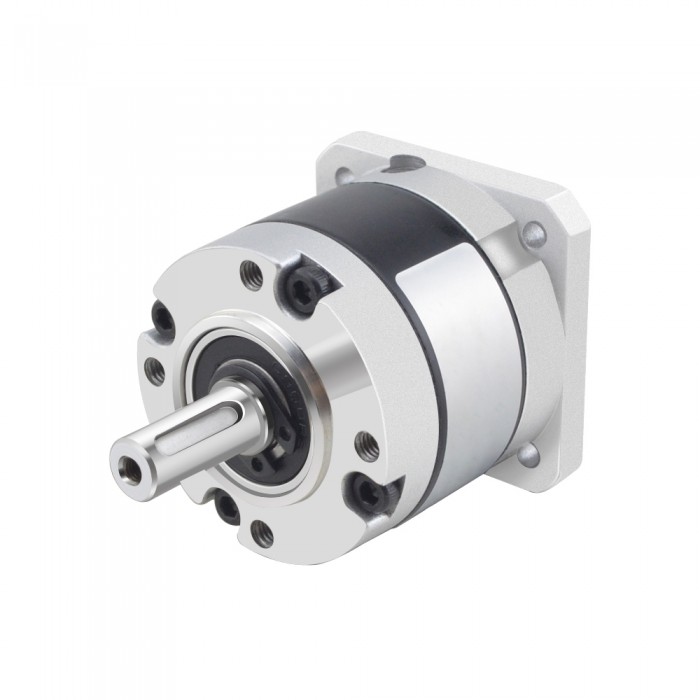

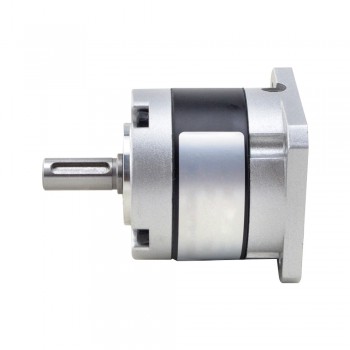

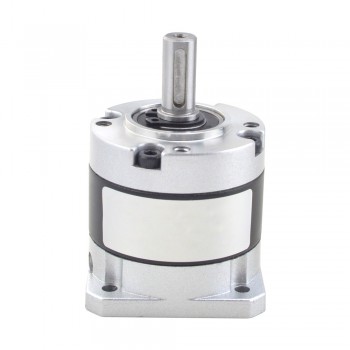

TQMG Series Planetary Gearbox Gear Ratio 10:1 Backlash 30 arc-min for Nema 17 Stepper Motor



It with gear ratio 10:1 and a maximum 30arc-min backlash. Diffent with the TQEG series' steel gears, TQMG series' gears are made of powder metallurgy.

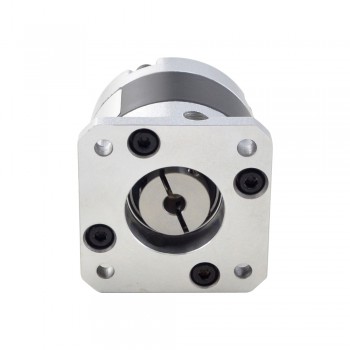

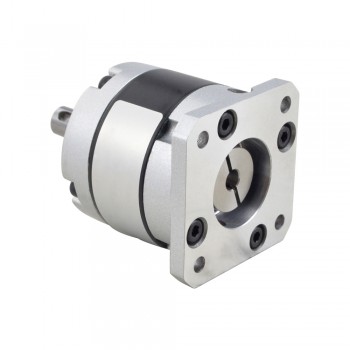

This inline planetary gearbox built-in an input shaft coupling which can match standard 5mm short shaft Nema 17 stepper motor, brushless dc motor and brushed dc motor.

One of matchable motor is 17HS15-1584S, for other motors, please contact our technical support to custom the motor shaft.



Gearbox Specifications

Manufacturer Part Number: TQMG17-G10

Gearbox Type: Planetary

Gear Ratio: 10: 1

Efficiency: 90%

Backlash at No-load: <=30arcmin

Max.Permissible Torque: 5Nm(44.25lb-in)

Noise: <=55dB

Waterproof Rating: IP54

Lifetime: 20000hours



Physical Specifications

Frame Size: 42 x 42mm

Gearbox Length: 40mm

Output Shaft Type: Key way

Output Shaft Diameter: Φ8mm

Output Shaft Length: 21.5mm

Input Shaft Diameter: Φ5mm

Input Shaft Length: 9.5mm



Resources

Gearbox Datasheet:TQMG17-G10.pdf

TQMG17-G10.STEP



Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev:  Nema 34 Worm Gearbox Motor 5:1 NMRV40 Worm Gear Speed Reducer for Nema 34 Stepper Motor
Next: TQMG Series Planetary Gearbox 100:1 Backlash 50 Arc-min for Nema 17 Stepper Motor BLDC Motor & Servo Motor
Physical Specification
Frame Size(mm) 42 x 42
Weight(g) 310
Gearbox Length(mm) 40
Input Shaft Diameter(mm) 5
Input Shaft Length(mm) 9.5
Output Shaft Diameter(mm) 8
Output Shaft Length(mm) 21.5
Suit for Motor Nema 17
Gearbox Type PLM Series
Gear Ratio 10
Backlash at No-load <=30arcmin
Product Type PLM Series Planetary Gearbox
Output Shaft Type Keyway Shaft
