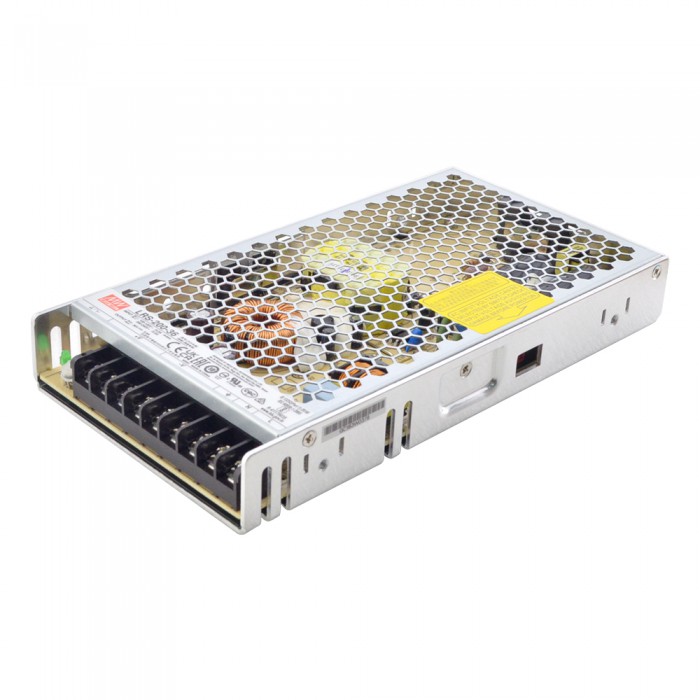

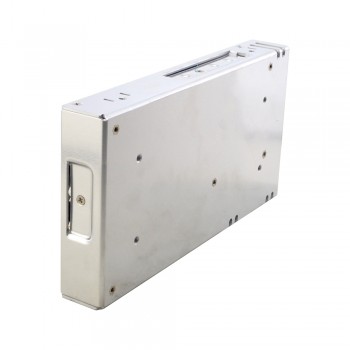

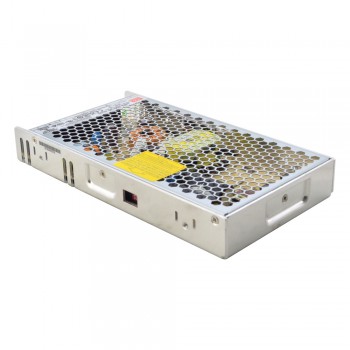

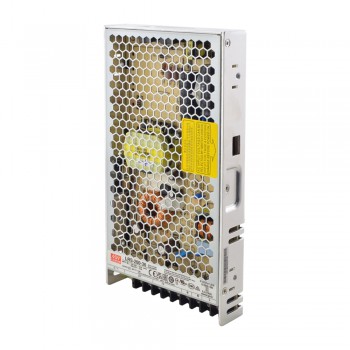

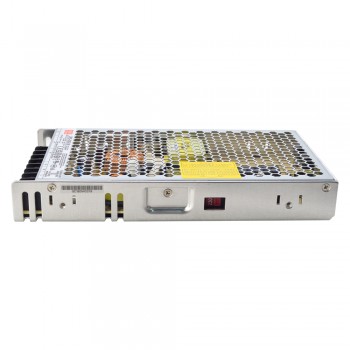

LRS-200-36 MEANWELL Switching Power Supply 200W 36VDC 5.9A 115/230VAC Enclosed Switching CNC Power Supply

LRS-200-36 MEANWELL Switching Power Supply 200W 36VDC 5.9A 115/230VAC Enclosed Switching CNC Power Supply
NO.:LRS-200-36
Post a review
Special Offer in March 2024:
  • 5% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till March 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$25.21
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $23.95 5%
10 $23.45 7%
50 $22.69 10%
100 $21.93 13%
Add To Cart

LRS-200-36 MEAN WELL 200W 36VDC 5.9A 115/230VAC Enclosed Switching Power Supply



MEANWELL LRS-200 series is a 200W single-output enclosed type power supply with 30mm of low profile design. Adopting the input of 115VAC or 230VAC (select by switch), the entire series provides an output voltage line of 3.3V, 4.2V, 5V, 12V, 15V, 24V, 36V and 48V.

LRS-200 has the complete protection functions and 5G anti-vibration capability; it is complied with the international safety regulations such as IEC / UL 62368-1.



Features

Brand MEANWELL

36V DC 5.9A output

AC input voltage range: 90 ~ 132VAC

Rated power: 212.4W

AC input range selectable by switch

Withstand 300VAC surge input for 5 second

Protections: Short circuit / Overload / Over voltage / Over temperature

Cooling by free air convection

1U low profile

Withstand 5G vibration test

LED indicator for power on

No load power consumption<0.75W

100% full load burn-in test

High operating temperature up to 70℃

Operating altitude up to 5000 meters (Note.8)

3 years warranty



Applications

Industrial automation machinery

Industrial control system

Mechanical and electrical equipment

Electronic instruments, equipments or apparatus



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: POM Screw Nut for Tr5x2 Threaded Rod Stepper Motor Parts
Next:  Nema 34 Worm Gearbox Motor 5:1 NMRV40 Worm Gear Speed Reducer for Nema 34 Stepper Motor
Power Supply Specification
Max. Output Current(A) 5.9
Power(W) 212.4
Brand MEANWELL
Output Voltage(VDC) 36
Input Voltage(VAC/VDC) 90 - 132 / 180 - 264
PFC Function No
Input Frequency(Hz) 47 - 63
Efficiency(%) 89.5%
Power Type Switching Power Supply
Dim.(LxWxH)(mm) 215 x 115 x 30 / 8.46 x 4.53 x 1.18
