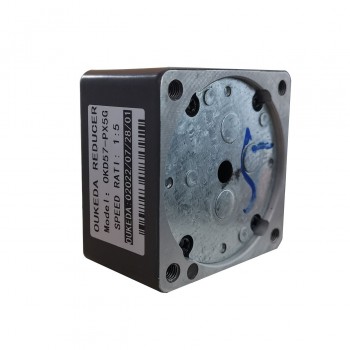

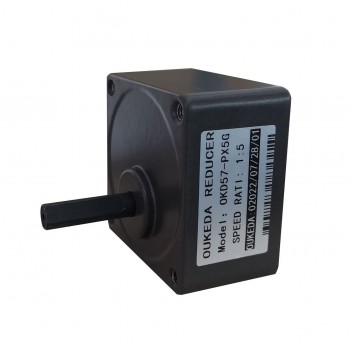

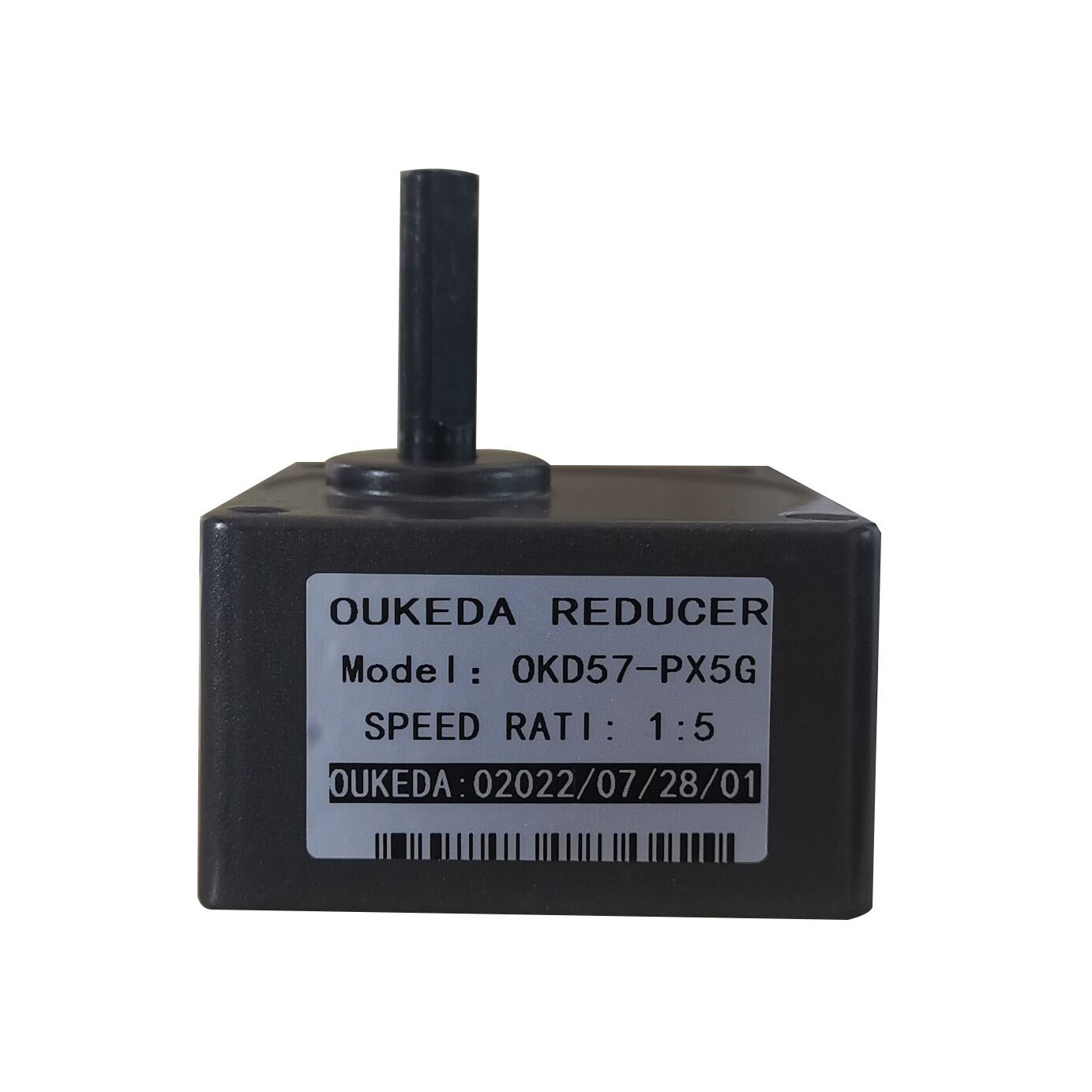

NEMA 23 Eccentric Gearbox 5:1 10:1 Gear Reducer for 57mm Stepper Motor

NEMA 23 Eccentric Gearbox 5:1 10:1 Gear Reducer for 57mm Stepper Motor
NO.:OKD57-PX5G
Post a review
Halloween Special Offer 2026:
  • All Treats No Tricks
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till November 4th, 2026
  • Note:No coupon code needed, please place order directly!
Our Price:$16.99
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $16.14 5%
10 $15.97 6%
50 $15.80 7%
100 $15.63 8%
Add To Cart
Add To My Favorites
  • Share:

NEMA 23 Eccentric Gearbox 5:1 10:1 Gear Reducer for 57mm Stepper Motor


Electrical Specification:

Gearbox Type:Eccentric Gearbox

Compatible Motor:NEMA 23 / 57mm

Gear Reduction Ratio:5:1 / 10:1

Gear Tooth Count:60 Teeth

No-Load Speed:3000RPM

Rated Torque:1.76Nm

Rated Voltage:24V

Rated Power:50W

Rated Current:1A

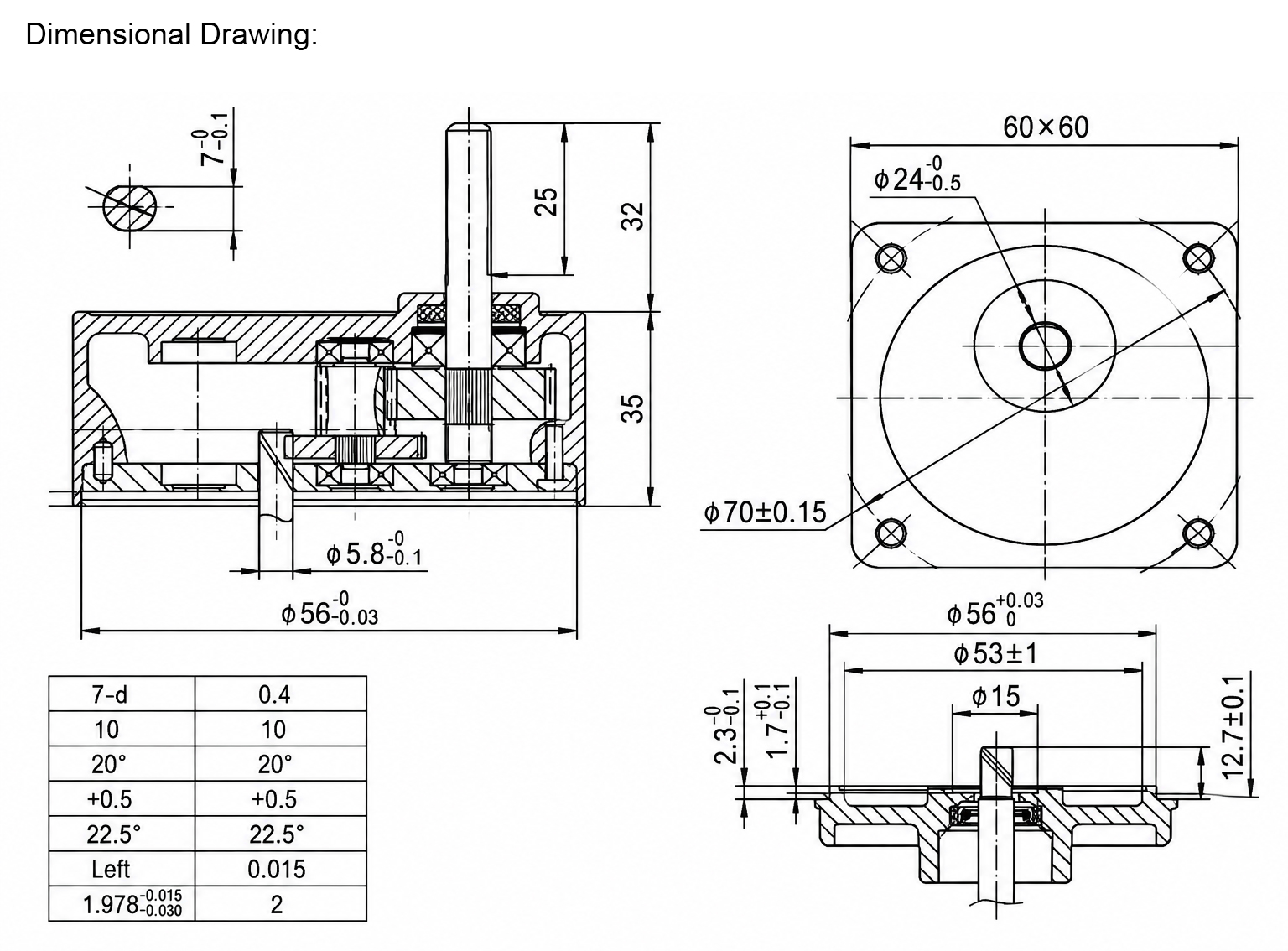

Physical Specification:

Frame Size:60×60mm

Gearbox Thickness:35mm

Shaft Diameter:5.8mm

Shaft Length:32mm

Shaft Protrusion Length:25mm

Mounting Interface Diameter:56mm

Mounting Hole Spacing Specified

Weight:1000g

NEMA 23 Eccentric Gearbox 5:1 10:1 Gear Reducer for 57mm Stepper Motor

NEMA 23 Eccentric Gearbox 5:1 10:1 Gear Reducer for 57mm Stepper Motor
