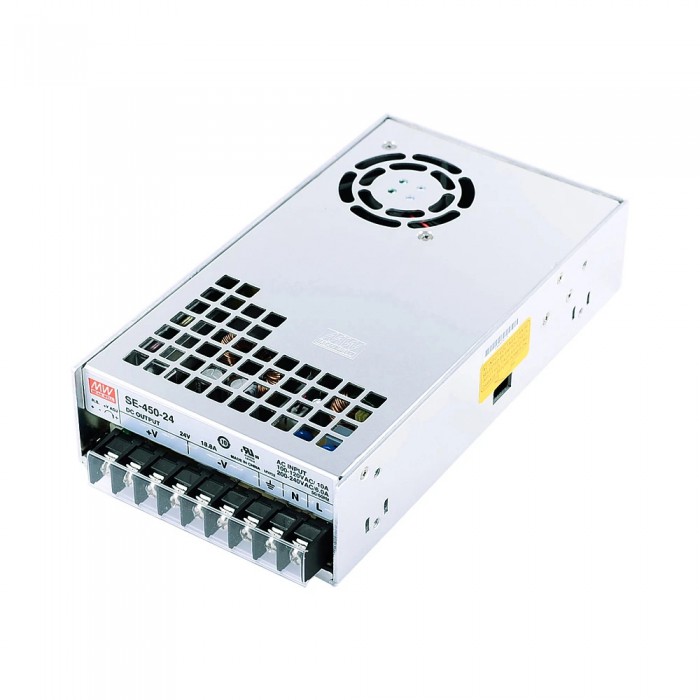

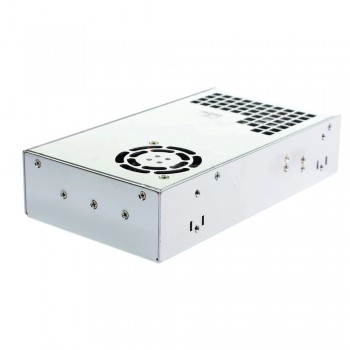

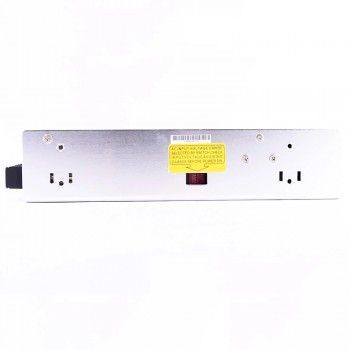

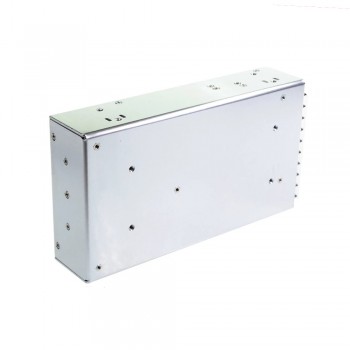

SE-450-24 MEAN WELL CNC Power Supply 451.2W 18.8A 24V Single Output Switching Power Supply
SE-450-24 MEAN WELL 451.2W 18.8A 24V Single Output Power Supply
Features
Brand MEANWELL
24V DC 18.8A output
AC input voltage range: 180 ~ 264VAC
Rated power: 451.2W
AC input active surge current limiting
AC input range selected by switch
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC ball bearing fan
LED indicator for power on
UL approved
2 years warranty
| Power Supply Specification | |
|---|---|
| Max. Output Current(A) | 18.8 |
| Power(W) | 451.2 |
| Brand | MEANWELL |
| Output Voltage(VDC) | 24 |
| Input Voltage(VAC/VDC) | 90 - 132 / 254 - 370 |
| PFC Function | No |
| Input Frequency(Hz) | 47 - 63 |
| Efficiency(%) | 86% |
| Power Type | Switching Power Supply |
| Dim.(LxWxH)(mm) | 225 x 124 x 50 |
