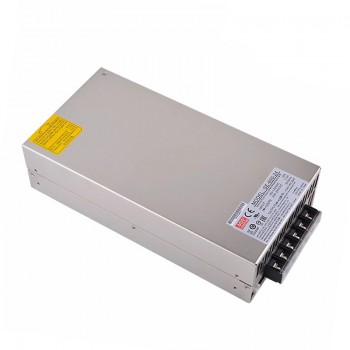

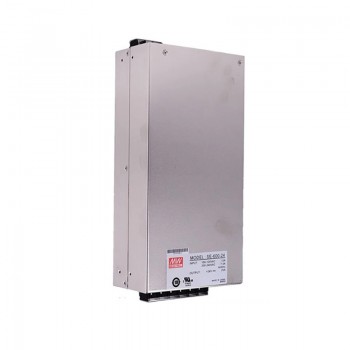

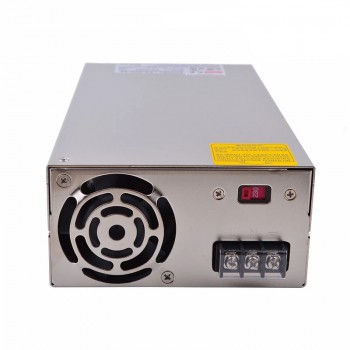

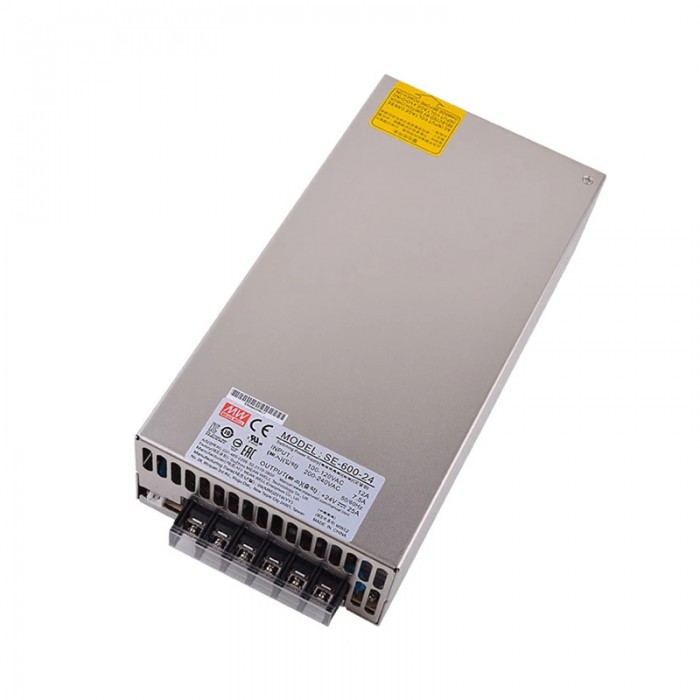

SE-600-24 MEAN WELL CNC Power Supply 600W 25A 24V Stepper Moor CNC Power Supply
SE-600-24 MEAN WELL 600W 25A 24V Single Output Power Supply
Features
Brand MEANWELL
24V DC 25A output
AC input voltage range: 180 ~ 264VAC
Rated power: 600W
AC input active surge current limiting
AC input range selected by switch
Protections: Short circuit / Overload / Over voltage / Over temperature
Forced air cooling by built-in DC fan
High power density 4.9w/in³
Built-in remote sense function
UL approved
Low cost
2 years warranty
Resources
Full Datasheet:SE-600.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Power Supply Specification | |
---|---|
Max. Output Current(A) | 25 |
Power(W) | 600 |
Brand | MEANWELL |
Output Voltage(VDC) | 24 |
Input Voltage(VAC/VDC) | 90 - 132 / 180 - 264 |
PFC Function | No |
Input Frequency(Hz) | 47 - 63 |
Efficiency(%) | 87% |
Power Type | Switching Power Supply |
Dim.(LxWxH)(mm) | 247 x 127 x 63.5 |
