Nema 42 50:1 Worm Gearbox Motor NMRV50 Worm Gear Speed Reducer for Nema 42 Stepper Motor

Nema 42 50:1 Worm Gearbox Motor NMRV50 Worm Gear Speed Reducer for Nema 42 Stepper Motor
NO.:NMRV50-G50-D19
Post a review
Special Offer in June 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till June 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$70.10
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $66.60 5%
10 $65.19 7%
50 $63.09 10%
100 $60.99 13%
Add To Cart

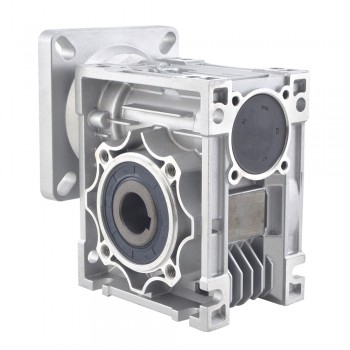

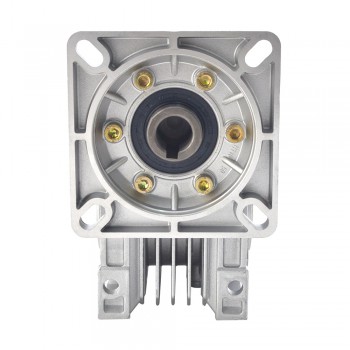

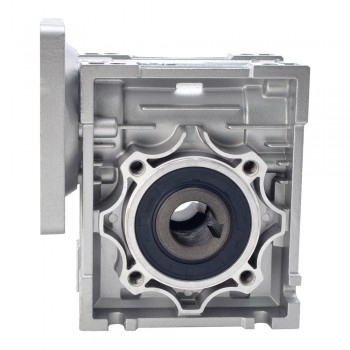

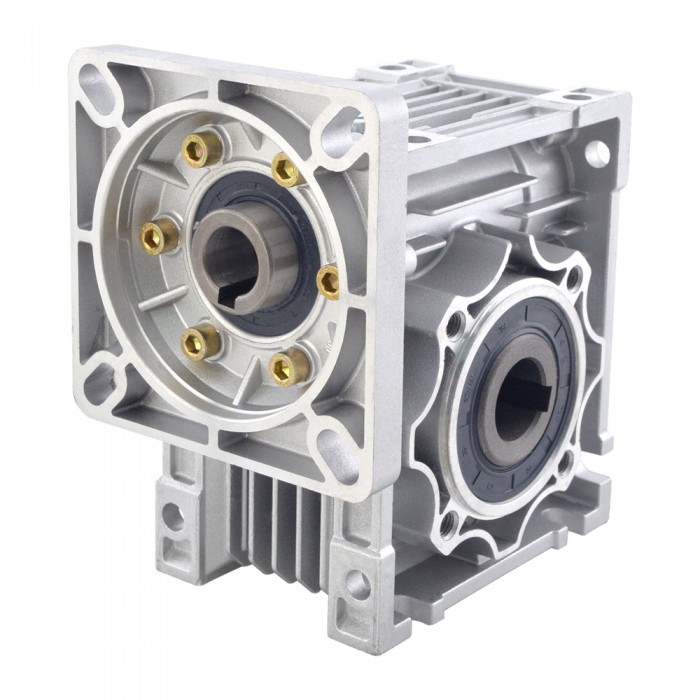

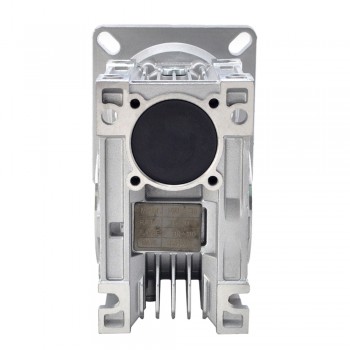

50:1 Worm Gearbox NMRV50 Worm Gear Speed Reducer 19mm Input Shaft Diameter



This worm gearbox is designed for Nema 42 Stepper Motor or other 110mmx110mm size motor, the output shaft is offset by 90° from the drive shaft. The advantage for this gearbox is efficiency and self-locking. Besides big cases, no gap structure of box means a maintenance- free that is hermetically sealed. It prevents the lubricant from easily losing and going bad, and exchanging.



Gearbox Specifications

Manufacturer Part Number: NMRV50-G50-D19

Gearbox Type: Worm Gearbox

Gear Ratio: 50:1

Efficiency: 63%

Backlash at No-load: <=1°

Output Max.Permissible Torque: 74Nm(654.96lb-in)

Output Max. Radial Load: 3.39kN

Output Type: Hollow Bore

Output Bore Diameter: Φ25mm

Input Shaft Type: Key way

Input Shaft Diameter: Φ19mm

Input Shaft Max. Length: 43mm



Please note:

The output shaft is available, please contact our technical support for your requirements.

The gear ratios available for this gearbox are: 5:1, 7.5:1, 10:1, 15:1, 20:1, 25:1, 30:1 and 50:1.

Due to their relatively high backlash (1°), worm gearboxes are not suitable for positioning applications.



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Nema 34 30:1 Worm Gearbox Motor NMRV40 Worm Gear Motor Speed Reducer for Nema 34 Stepper Motor
Next: SE-600-24 MEAN WELL CNC Power Supply 600W 25A 24V Stepper Moor CNC Power Supply
Physical Specification
Input Shaft Diameter(mm) 19mm
Gear Ratio 50
Input Shaft Max. Length 43mm
