Short Shaft Nema 17 Stepepr Motor Bipolar 36Ncm (51oz.in) 1.58A 42x42x39mm 4 Wires
Special Offer in May 2024:
- 6% OFF on Total Order Amount!
- Enjoy Discount at Checkout!
- Valid Till May 10th, 2024
- Note:No coupon code needed, please place order directly!
Our Price:$8.48
Short Shaft Nema 17 Stepepr Motor Bipolar 36Ncm (51oz.in) 1.58A 42x42x39mm 4 Wires

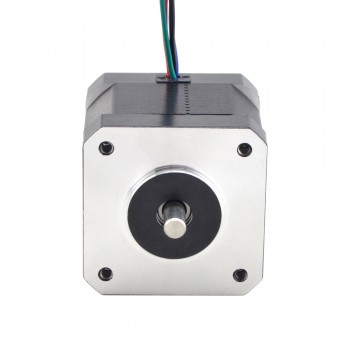

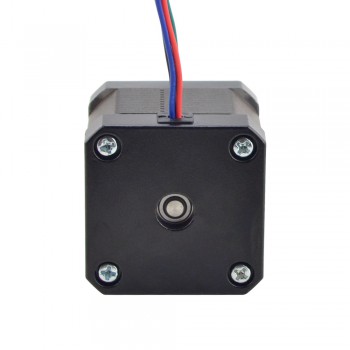

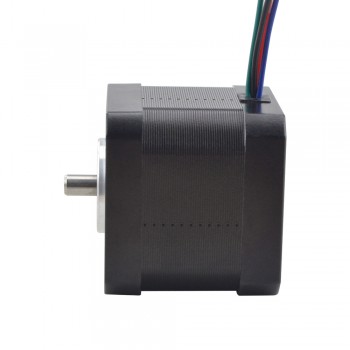

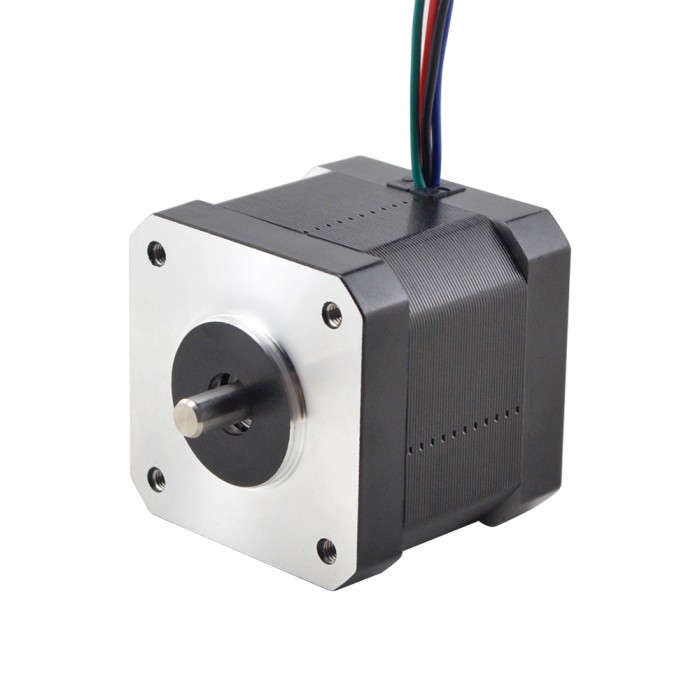

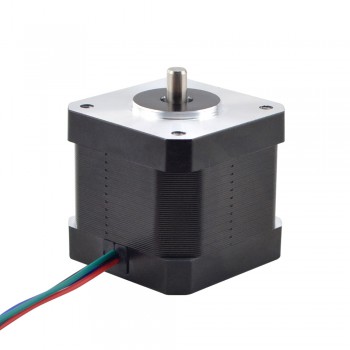

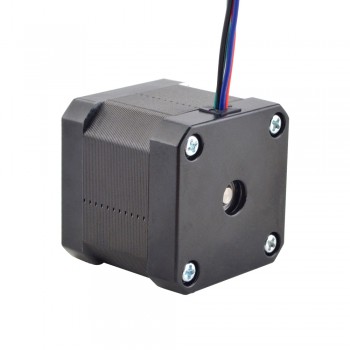

This short shaft Nema 17 stepper motor with 9.5mm length shaft, motor size is 42x42x39mm. It has 4 wires, each phase draws current 1.58A, with holding torque 36Ncm (51oz.in). It is designed for PLM series Planetary Gearbox.
Electrical Specification
Manufacturer Part Number: 17HS15-1584S
Motor Type: Bipolar Stepper
Step Angle: 1.8deg
Holding Torque: 36Ncm(51oz.in)
Rated Current/phase: 1.58A
Phase Resistance: 1.65ohms
Inductance: 3.2mH ± 20%(1KHz)
Physical Specification
Frame Size: 42 x 42mm
Body Length: 39mm
Shaft Diameter: Φ5mm
Shaft Length: 9.5mm
Number of Leads: 4
Lead Length: 500mm
Weight: 320g
Connection
| A+ | A- | B+ | B- |
| Black | Green | Red | Blue |
Resources
- Full Datasheet:17HS15-1584S.pdf
- PLM17-G20.STEP
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
| Physical Specification | |
|---|---|
| IP Rating | 40 |
