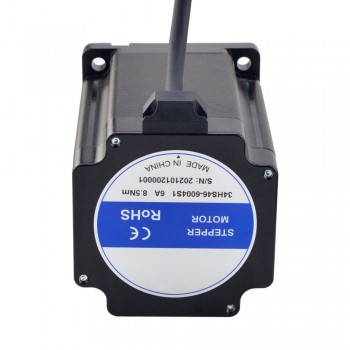

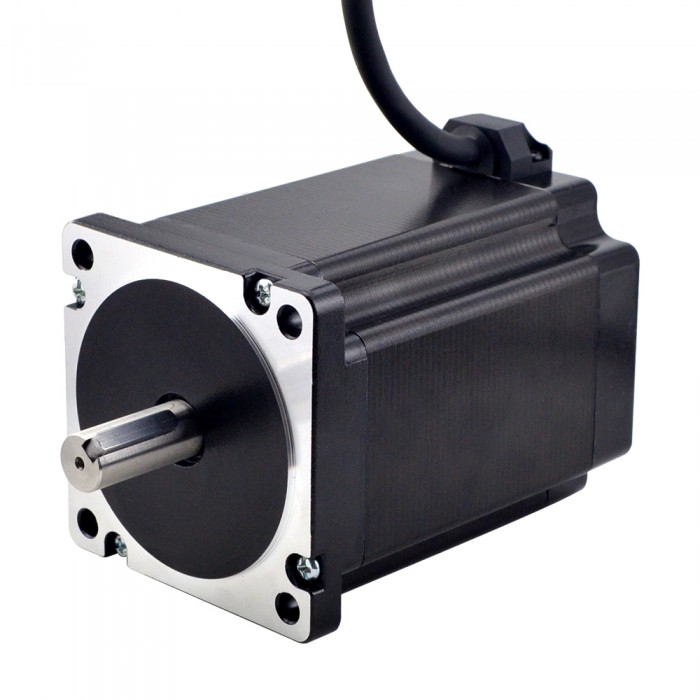

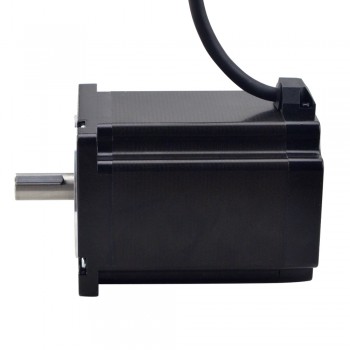

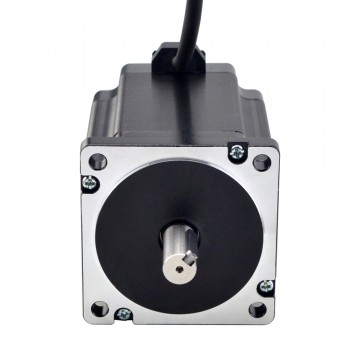

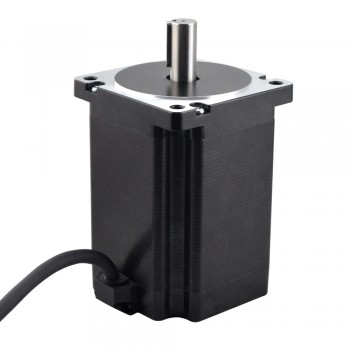

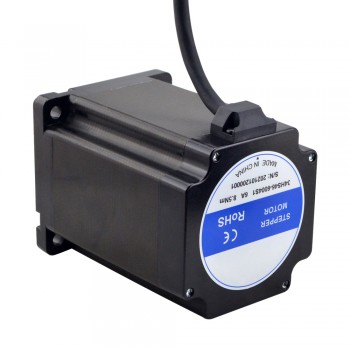

S Series Nema 34 Stepper Motor 1.8 Deg 8.5Nm(1203.94oz.in) 6.0A 2 Phase Key-way Shaft 4 Wires

S Series Nema 34 Stepper Motor 1.8 Deg 8.5Nm(1203.94oz.in) 6.0A 2 Phase Key-way Shaft 4 Wires
NO.:34HS46-6004S1
Post a review
Special Offer in May 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till May 31st, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$48.41
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $45.99 5%
10 $45.02 7%
50 $43.57 10%
100 $42.12 13%
Add To Cart

S Series Nema 34 Stepper Motor 8.5Nm(1203.94oz.in) 14mm Key-way Shaft 1m Cable



Electrical Specification

Manufacturer Part Number: 34HS46-6004S1

Number Of Phase: 2

Step Angle: 1.8 deg

Holding Torque: 8.5Nm(1203.94oz.in)

Rated Current/phase: 6.0 A

Phase Resistance: 0.7 ohms± 10%

Inductance: 5.8 mH ± 20%(1KHz)



Physical Specification

Frame Size: 86 x 86 mm

Body Length: 118 mm

Shaft Diameter: Φ14 mm

Shaft Length: 32 mm

Keyway Shaft Length: 25 mm

Number of Leads: 4

Lead Length: 1000 mm

Weight: 5.5kg



Connection



A+ A- B+ B-
BLK GRN RED BLU



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: Short Shaft Nema 17 Stepepr Motor Bipolar 36Ncm (51oz.in) 1.58A 42x42x39mm 4 Wires
Next: 201W 36VDC 5.5A 115/230V Switching Power Supply Stepper Motor CNC Router Kits CNC Power Supply
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 850
Holding Torque (oz.in) 1203.94
Inductance(mH) 5.8
Phase Resistance(ohm) 0.7
Rated Current (A) 6.0
Step Angle(deg.) 1.8
Physical Specification
Body Length(mm) 110
Frame Size(mm) Nema 34 (86 x 86)
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 14
Shaft Length(mm) 32
Single Shaft/Dual Shaft Single Shaft
Weight(g) 4000
Output Shaft Type Keyway
IP Rating 40
