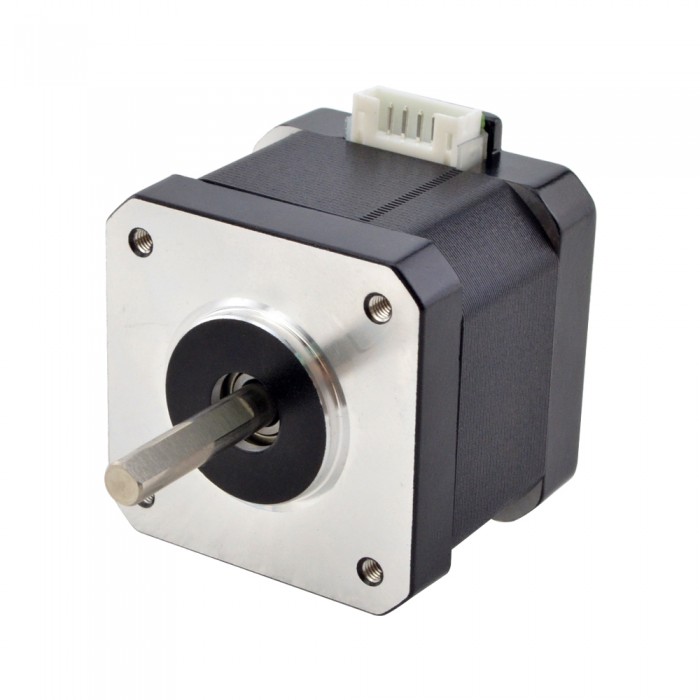

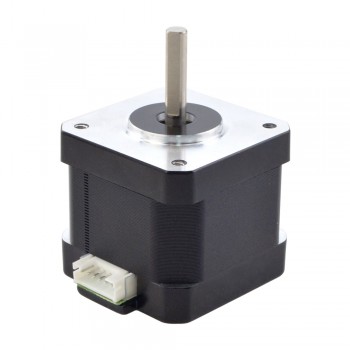

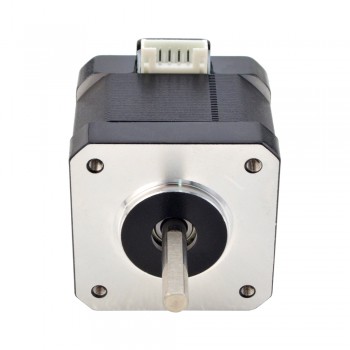

E Series Nema 17 Stepper Motor Bipolar 0.9 Deg 30Ncm(42.48oz.in) 1.5A 42x42x38mm D-Cut Shaft 4 Wires

E Series Nema 17 Stepper Motor Bipolar 0.9 Deg 30Ncm(42.48oz.in) 1.5A 42x42x38mm D-Cut Shaft 4 Wires
NO.:17ME15-1504S
Post a review
Special Offer in April 2024:
  • 6% OFF on Total Order Amount!
  • Enjoy Discount at Checkout!
  • Valid Till April 20th, 2024
  • Note:No coupon code needed, please place order directly!
Our Price:$9.13
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
10 $8.67 5%
30 $8.49 7%
50 $8.22 10%
100 $7.94 13%
Add To Cart

E Series Nema 17 Stepper Motor Bipolar 0.9 Deg 30Ncm(42.48oz.in) 1.5A 42x42x38mm D-Cut Shaft 4 Wires



Electrical Specification

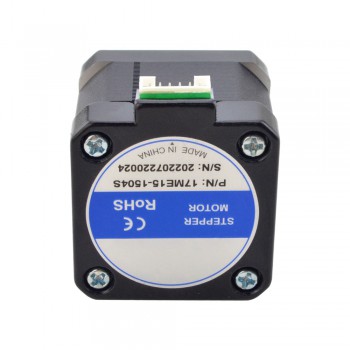

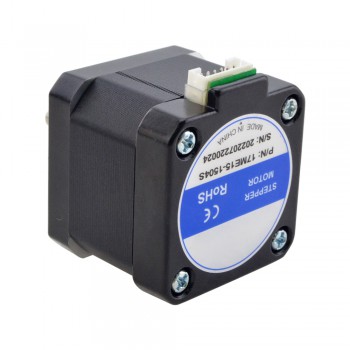

Manufacturer Part Number: 17ME15-1504S

Motor Type: Bipolar Stepper

Step Angle: 0.9deg

Holding Torque: 30Ncm(42.48oz.in)

Rated Current/phase: 1.50A

Phase Resistance: 2.0ohms

Inductance: 5.2mH ± 20%(1KHz)

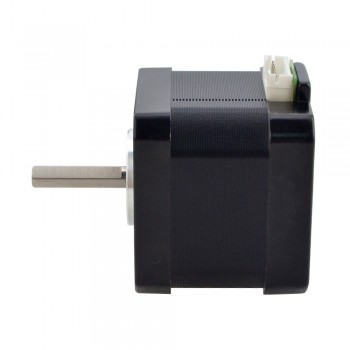

Physical Specification

Frame Size: 42 x 42mm

Body Length: 38mm

Shaft Diameter: Φ5mm

Shaft Length: 23.5mm

D-cut Length: 20mm

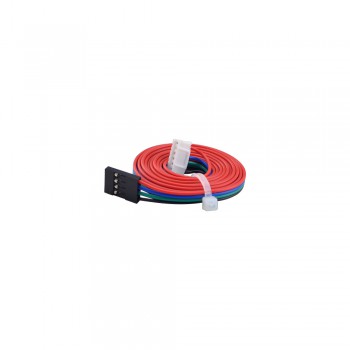

Number of Leads: 4

Lead Length: 1000mm



Connection



A+ A- B+ B-
Black Blue Green Red



Resources

Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: S Series Nema 23 Closed Loop Stepper Motor 1.8 Deg 2.0 Nm/283.22oz.in 5.0A 2 Phase with Optical Incremental Encoder
Next: S Series Nema 24 Closed Loop Stepper Motor 1.8 Deg 4.0 Nm/566.45oz.in 5.0A 2 Phase with Optical Incremental Encoder
Electrical Specification
Bipolar/Unipolar Bipolar
Holding Torque (Ncm) 30
Holding Torque (oz.in) 42.48
Inductance(mH) 5.2
Phase Resistance(ohm) 2.0
Rated Current (A) 1.5
Step Angle(deg.) 0.9
Physical Specification
Body Length(mm) 38
Frame Size(mm) Nema 17 (42 x 42)
Lead Length(mm) 1000
No. of Lead 4
Shaft Diameter(mm) 5
Shaft Length(mm) 23.5
Single Shaft/Dual Shaft Single Shaft
Output Shaft Type D
Product Series S
IP Rating 40
