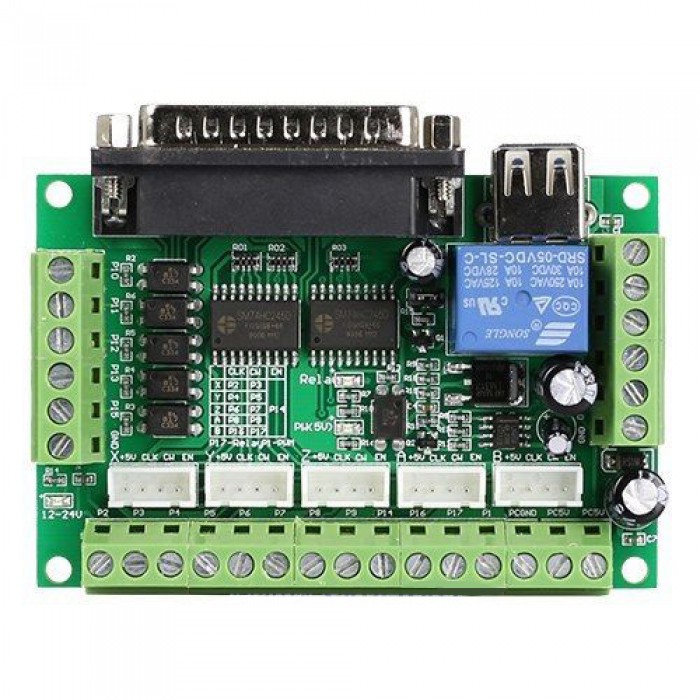

5 Axis CNC Breakout Board Interface Mach3 CNC Router Kit 12-24V Compatible with 2 Phase Microstep Driver
This document describes the basic functionality and the electrical specifications of Oyostepper's 5 Axis CNC Breakout Board Interface ST-V2.
Functions and Features
Stable performance, cost-effective
Maximum support 5-axis stepper motor driver controllers
Compatible with MACH3, Linux CNC (EMC2) etc. parallel-control CNC softwarey
USB power supply and peripherals powered phase are separated to protect computer security
All the signals are opto-isolated which can protect your computer security.
5-input interface to define the Limit, Emergence-Stop, Cutter alignment etc.
Wide input voltage range: 12-24V, and with anti-reverse function.
One relay output control interface, accessed by the spindle motor or the air pump, water pump, etc
Compatible with all the 2 phase microstep drivers in the market
Output 0-10V analog voltage for invert er to control the spindle speed
Resources
Breakout Board Manual: ST-V2.pdf
Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!
Stepper Driver Specification | |
---|---|
Driving Voltage(V) | 5/12-24 |
Physical Specification | |
Weight(g) | 350 |
