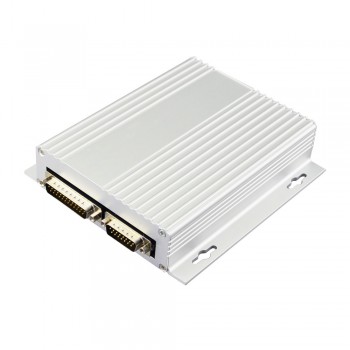

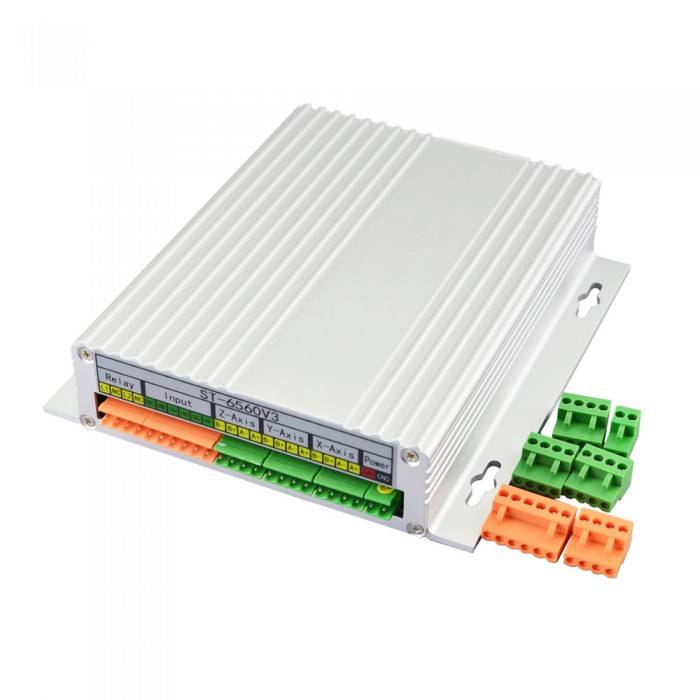

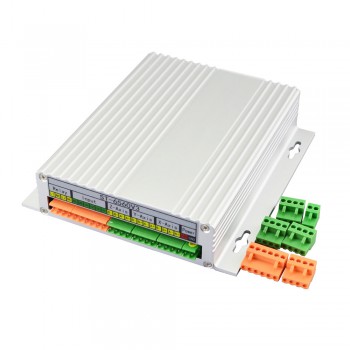

3 Axis TB6560 CNC Stepper Motor Driver Board for Nema 17, Nema 23 Stepper Motor

3 Axis TB6560 CNC Stepper Motor Driver Board for Nema 17, Nema 23 Stepper Motor
Review: Post a review
Our Price:$45.62
Quantity:- +

Bulk Price:
Qty.Range(unit) Price(unit) Discount
5 $43.34 5%
10 $42.43 7%
50 $41.06 10%
100 $39.69 13%
Add To Cart

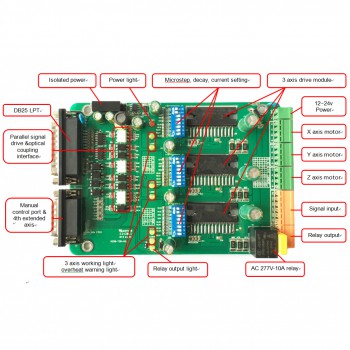

This new version 3 axis TB6560 stepper driver board is professional driver board for CNC industry. Its high reliability make it an suitable for high requirement applications.

Key Features

  • Toshiba TB6560AHQ chip - High power, maximum current 3.5A
  • Resolution 1, 1/2, 1/8, 1/16 micro stepping output
  • Working voltage DC12-DC30V, rated voltage 24V
  • Adjustable current with 100%, 75%, 50%, 20% of full current by on-board switch.
  • Half current function when no signal to prevent motor heating.
  • Build with a 227V 10A Relay.
  • Manual Control circuit included.
  • Overload, over-current and over-temperature safety.
  • Protect the computer by using isolating power(1000V DCDC) and optoelectronic coupler.
  • Supports most parallel software MACH3, KCAM4, EMC2 etc.
  • Fixed in Aluminum box, better cooling function than fan and safer protection for board circuit.


  • Make sure the power supply voltage dose not exceed the drive's input range. Double check the connections and make sure the power lead polarity is correct.
  • Do not set high current to small stepper motor. It is possible that the motor will be damaged.
  • Disconnect the motor from the load if you are not sure the move direction. Adjust the axis in the middle before trying to run the motor.
  • Never disconnect the motor lead when the power source is energized.

Packing List

  • 1 x ST-6560V3

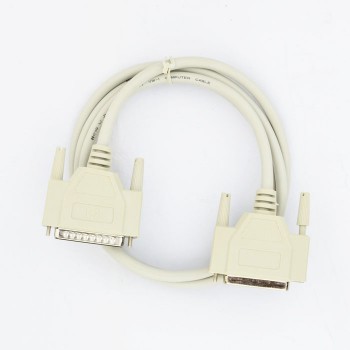

  • 1 x DB25 Cable
  • 1 x Manual CD


Wholesale stepper motors and wholesale stepper motor drivers online with guaranteed quality and competitive price at Oyostepper.com!

Prev: MA860H Stepper Motor Driver 2.4-7.2A Max 80VAC or 110VDC for Nema 17-Nema 42 Stepper Motor
Next: 4 Axis TB6560 CNC Stepper Motor Driver Board for Nema 17, Nema23 Stepper Motor
Stepper Driver Specification
Driving Voltage(V) 12 - 30
Output Current(A) 0.7 - 3.5
Microstep(Steps/rev.) 200 - 3200
Physical Specification
Weight(g) 1000
